Modern Area/Site lighting Square HA0004E

Item Code:HA0004E Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Square HA0004E
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Squares areas, Pedestrian areas, Residential
areas,Parks,Walkways,Pathway,Driveway,Entrance
Installing Hight: 3-5m
Lamps: LED lamp,20w-60w
Lamp Wattage:
HA0004E1 20W LED,HA0004E2 2x20W LED
HA0004E3 3x20W LED
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Material: Aluminium body
Lighting Column: Four piece extrude aluminium assembed square column
with four aluminium bar, powder coating
Lens: Clear acrylic lampshade,
Color: Standard color are Black,Dark grey RAL7016 or Light grey
RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP54



Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP

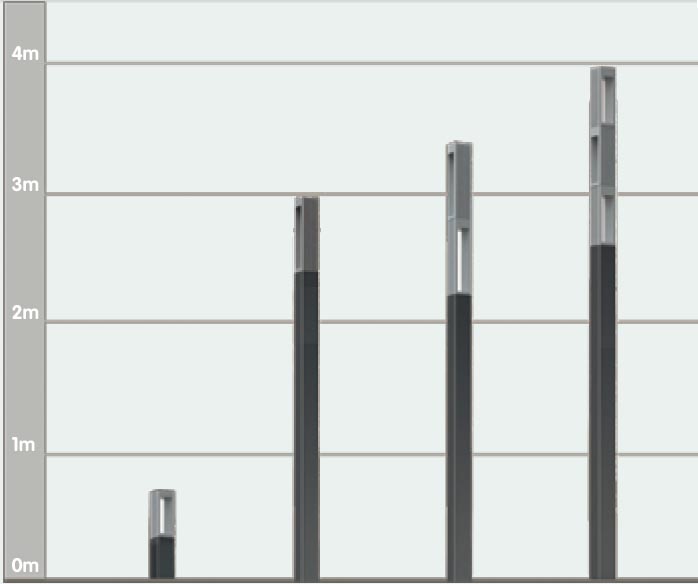

HA0004E1-0.8 LED 1X20W / 0.8m 6 /5kg 19x19x80 21x21x80 500/1000
HA0004E1-3.0 LED 1X20W / 3.0m 19/18kg 19x19x300 21x21x300 80/240
HA0004E2-3.5 LED 2X20W / 3.5m 22/21kg 19x19x350 21x21x350 80/240
HA0004E3-4.0 LED 3X20W / 4.0m 25/24kg 19x19x400 21x21x400 80/160
