Modern Area/Site lighting Trigon HA0003A

Item Code:HA0003A Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Trigon HA0003A
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Squares areas, Pedestrian areas, Residential
areas,Parks,Walkways,Pathway,Driveway,Entrance
Installing Hight: 3-5m
Lamps: LED tube or Fluorescent lamp,30w-150w
Lamp Wattage:
3m pole:1200mm light ,3*14w T5 led or 3*28w T5 FL
3.5m pole:1200mm light ,3*14w T5 led or 3*28w T5 FL
4.0m pole:1500mm light ,3*17w T5 led or 3*35w T5 FL
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Material: Aluminium body
Lighting Column: Three pieces extrude aluminium assembed trigon column
(stripe surface) , four aluminium bar supporting lampshade, powder coating
Lens: Clear acrylic /PC lampshade,
Color: Standard color are Black,Dark grey RAL7016 or Light grey
RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP54

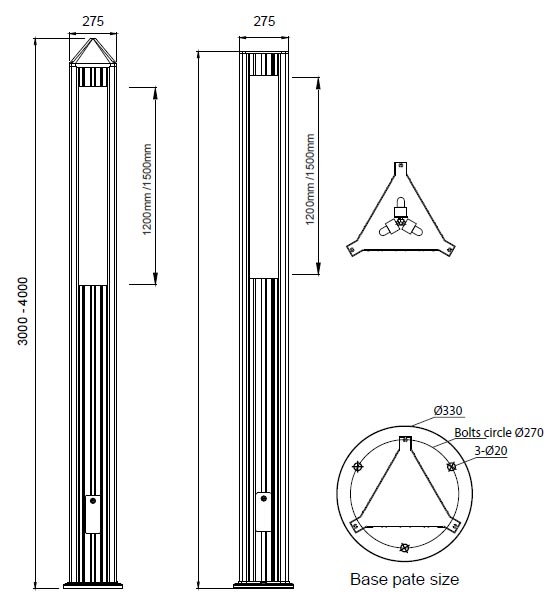

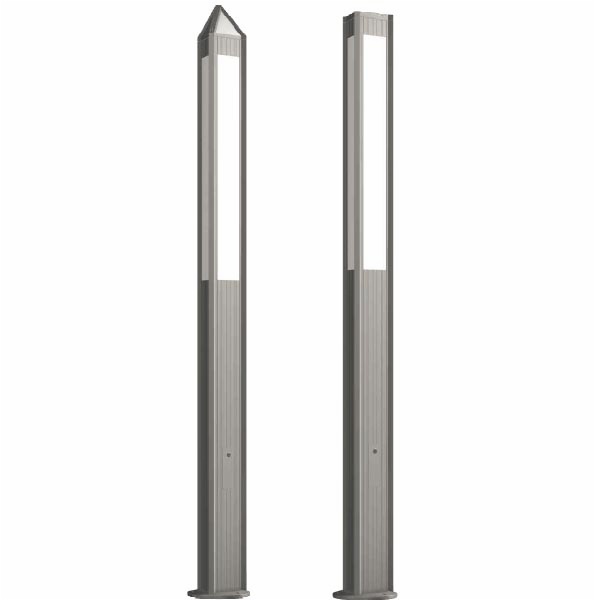

HA0003A1                      HA0003A2

Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HA0003A1-3.0 T5,LED or FL G5 3.0m 25/24kg 27x27x300 28x28x300 50/150
HA0003A1-3.5 T5,LED or FL G5 3.5m 29/28kg 27x27x350 28x28x350 50/150
HA0003A1-4.0 T5,LED or FL G5 4.0m 33/32kg 27x27x400 28x28x400 50/100
HA0003A2-3.0 T5,LED or FL G5 3.0m 25/24kg 27x27x300 28x28x300 50/150
HA0003A2-3.5 T5,LED or FL G5 3.5m 29/28kg 27x27x350 28x28x350 50/150
HA0003A2-4.0 T5,LED or FL G5 4.0m 33/32kg 27x27x400 28x28x400 50/100
