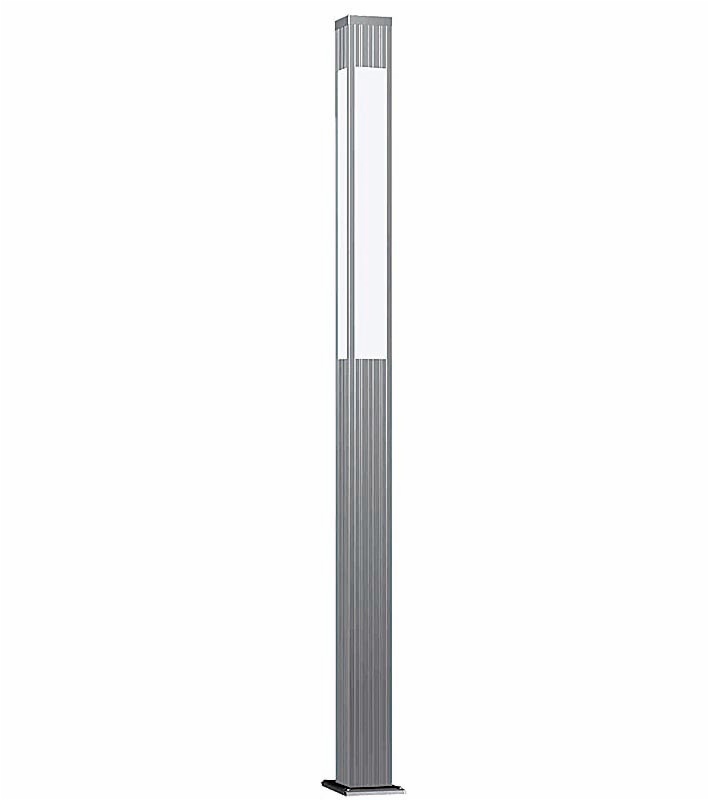

Modern Area/Site lighting Square HA0004A

Item Code:HA0004A Features:
  • Description

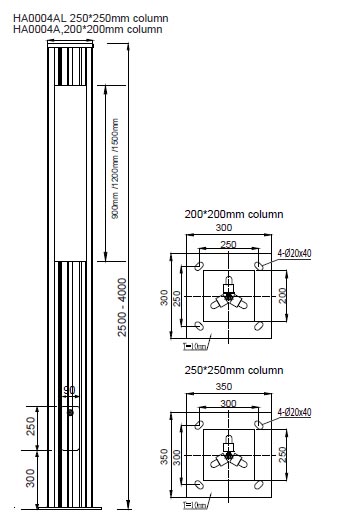

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Square HA0004A
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

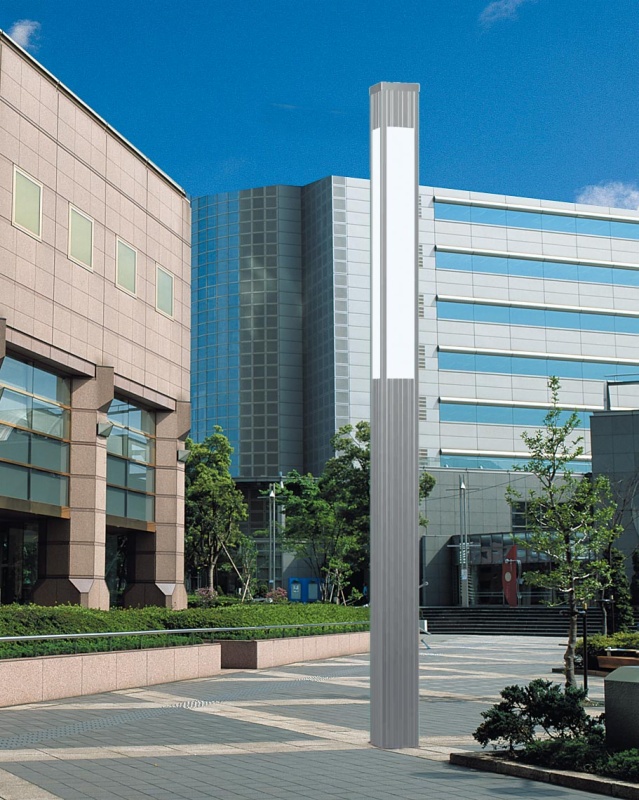

Application: Squares areas, Pedestrian areas, Residential
areas,Parks,Walkways,Pathway,Driveway,Entrance
Lamps: LED tube or Fluorescent lamp,30w-150w
Lamp Wattage:
2.5m pole:900mm light 3*10w T5 led or 3*21w T5 FL
3m pole:1200mm light ,3*14w T5 led or 3*28w T5 FL
3.5m pole:1200mm light ,3*14w T5 led or 3*28w T5 FL
4.0m pole:1500mm light,3*17w T5 led or 3*35w T5 FL
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Material: Aluminium body
Lighting Column: Four piece extrude aluminium assembed square column
(stripe surface) , four aluminium bar supporting lampshade, powder coating
Lens: Opal acrylic lampshade
Color: Standard color are Black,Dark grey RAL7016 or Light grey
RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP54


Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HA0004A-2.5 T5,LED or FL G5 2.5m 16/15kg 20x20x250 22x22x250 160/320
HA0004A-3.0 T5,LED or FL G5 3.0m 19/18kg 20x20x300 22x22x300 80/240
HA0004A-3.5 T5,LED or FL G5 3.5m 22/21kg 20x20x350 22x22x350 80/240
HA0004AL-3.5 T5,LED or FL G5 3.5m 29/28kg 25x25x350 28x28x350 50/150
HA0004AL-4.0 T5,LED or FL G5 4.0m 33/32kg 25x25x400 28x28x400 50/100
