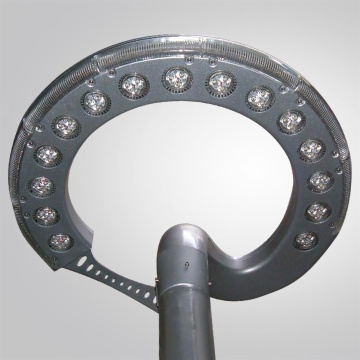

Modern Area/Site lighting Peira LED HA0008

Item Code:HA0008 Features:
  • Description

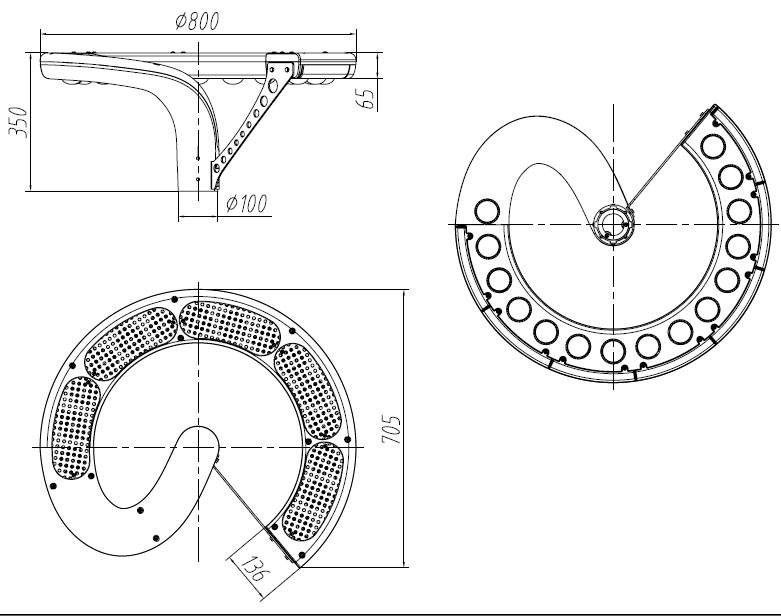

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Peira HA0008
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Mounting : Post-top, suitable for Ø90mmx120mm tenon
Lamps: LED modules GFGY-09
Lamp Wattage: 35W,50W,60W, 80W, 100W
Input Voltage: 90-270VAC,50-60HZ or 12V-24VDC
Power Factor: >0.9
Luminous Flux: 100lm/W
LED Chips Brand: Cree,OSRAM,Philips,Bridge lux
LED Driver Brand: MEAN WELL,/MOSO,/INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): CRI>70
Beam Angel: 120x60°
Working Temperature: -30 to 50℃
Working Lifetime: 50000 hours
Material: FRP, fiber glass body
Housing: Fiber glass reinforced plastics
Heat Sink: Die cast aluminium
lens: High efficiency acrylic refractor,
Pole: Hot dipped galvanized steel, powder coating
Color: Standard color is dark grey RAL7016 or Light grey
RAL 7042 or Black,Other color is available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HA0008-35-BR 35W 30pcs/Bridge 3600lm/350mA 3m-4m 14kg/ 12kg 80x70X35 83x74x38 126/252
HA0008-50-BR 50W 45pcs/Bridge 5400lm/350mA 3m-5m 14kg/ 12kg 80x70X35 83x74x38 126/252
HA0008-60-CR 60W 30pcs/Cree 6300lm/650mA 4m-5m 14kg/ 12kg 80x70X35 83x74x38 126/252
HA0008-80-CR 80W 45pcs/Cree 8775m/600mA 5m 14kg/ 12kg 80x70X35 83x74x38 126/252
HA0008-100-CR 100W 45pcs/Cree 10125lm/700mA 5m 14kg/ 12kg 80x70X35 83x74x38 126/252
