Modern Area/Site lighting Dual HA0002A

Item Code:HA0002A Features:
  • Description

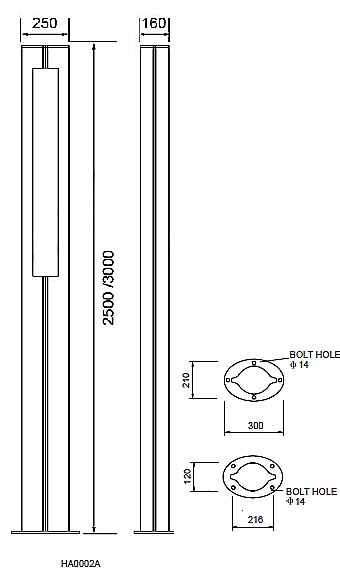

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Dual HA0002A
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Squares areas, Pedestrian areas, Residential
areas,Parks,Walkways,Pathway,Driveway,Entrance
Installing Hight: 2-3m
Lamps: LED tube or Fluorescent lamp,20w-60w
Lamp Wattage:
2.5m pole:900mm light ,2*10w T5 led or 2*21w T5 FL
3m pole:1200mm light ,2*14w T5 led or 2*28w T5 FL
Corners of two side can be installed  led strip
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Material: Aluminium body
Lighting Column: Four pieces extrude aluminium, Polyster powder coating
Lens: Opal acrylic /PC lampshade,
Color: Standard color are Black,Dark grey RAL7016 or Light grey
RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP54

Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HA0002A-2.5 T5,LED or FL G5 2.5m 19/18kg 25x16x250 27x18x250 160/320
HA0002A-3.0 T5,LED or FL G5 3.0m 23/22kg 25x16x300 27x18x300 80/240
