Modern Area/Site lighting Ruanda HA303

Item Code:HA303 Features:
  • Description

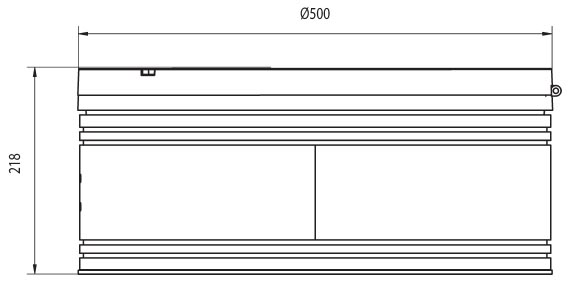

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Ruanda HA303A/HA303B
Type: Garden Area/Site lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

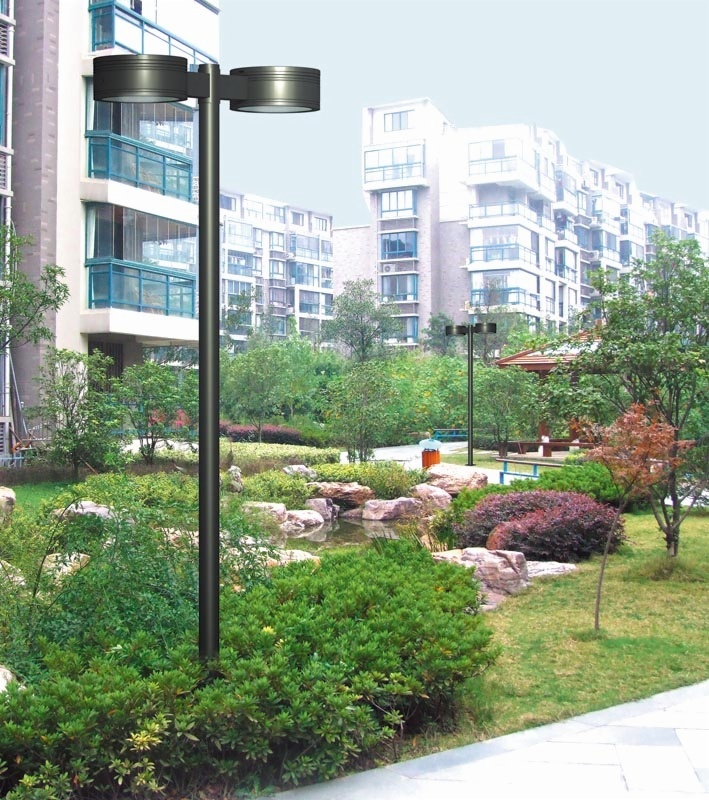

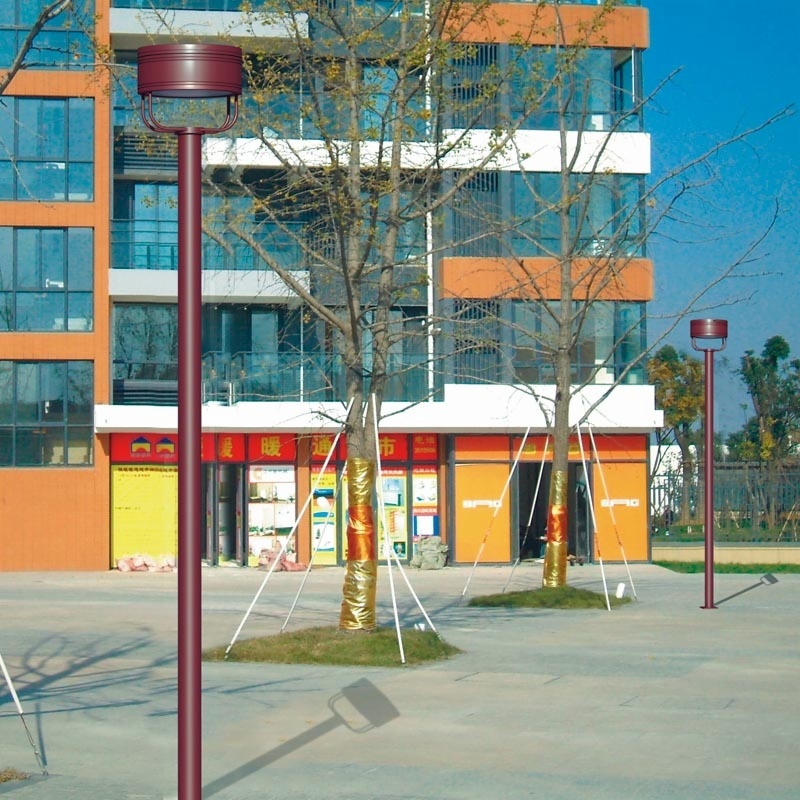

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks

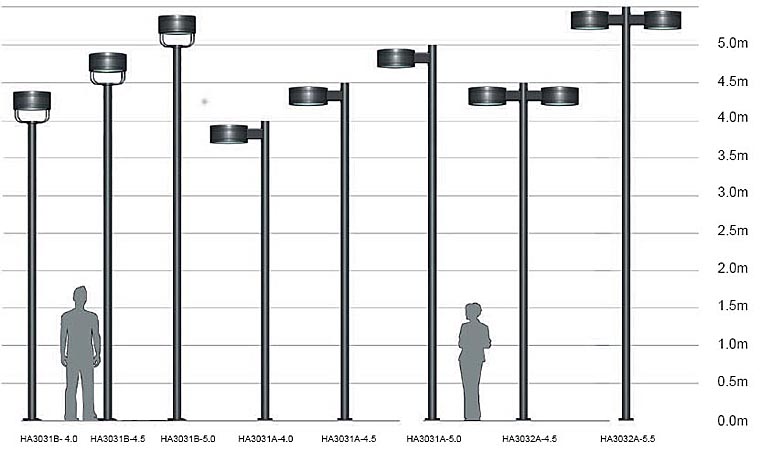

Installing Hight: 3-5m
Mounting:Hang or Side entry
Lamps HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W//150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W/ MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35W/45W/65W Compact fluorescent, cap: E27/E26
Input Voltage: 90-270VAC,50-60HZ

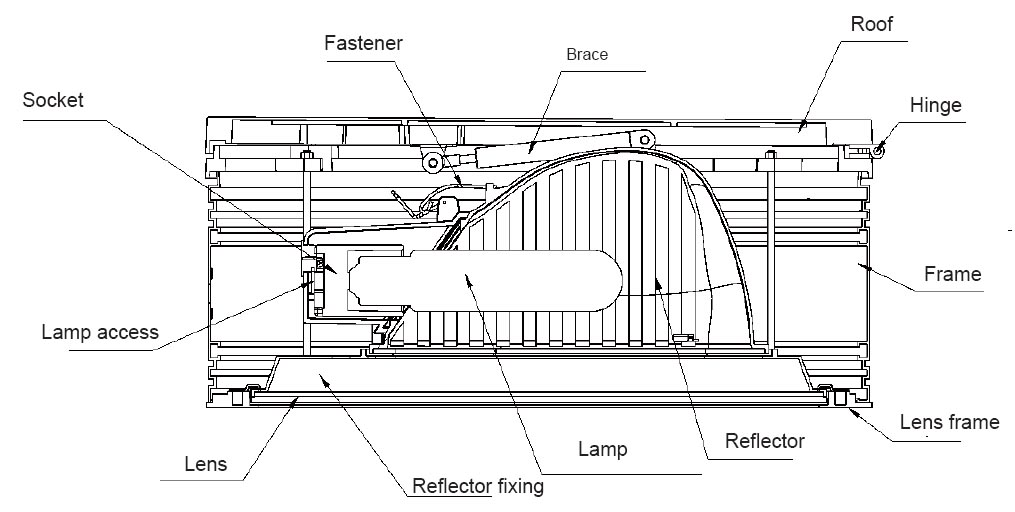

Material: FRP & aluminium body
Frame : Extruded aluminium alloy
Roof ,lens frame & reflector: Fiberglass-reinforced plastics,excellent
mechanical strength and bear the causticity ,vacuum metalizing for the
Reflector
Lens : Toughened flat glass
Color: Standard painting colors is black (BK) ,other colors dark
grey(GY)(RAL7016),light grey(LG)(RAL7042) are available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp Wattage Lamp Socket Install  Height(m) Gross / Net Weight(kg) Dimension L*W*H(cm) Packing size(cm) QTY   20'/40'GP
HA303A MAX 150W E27/E40 3m-5m 14 / 13 50x50X22 52x52x25 396/792
HA303B MAX 150W E27/E40 3m-5m 15 / 14 50x50X42 52x52x44 240/480
