Modern Area/Site lighting Trigon HA0003B

Item Code:HA0003B Features:
  • Description

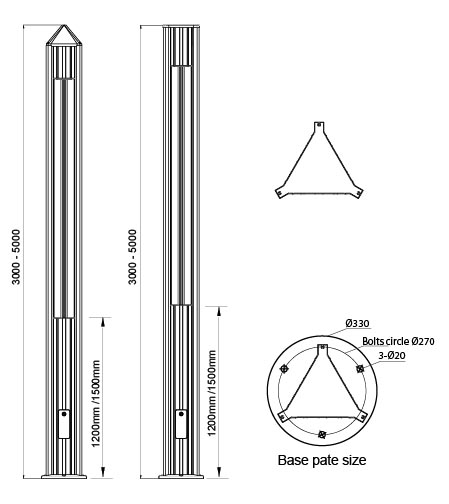

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Trigon HA0003B
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Squares areas, Pedestrian areas, Residential
areas,Parks,Walkways,Pathway,Driveway,Entrance
Installing Hight: 3-5m
Lamps: HID (HPS MH)/ LED bulb, 70W /150W
Lamp Wattage:
70W/150W HPS high pressure sodium, cap: G12/ E27
70W/150W MH metal halide, cap: G12/ E27
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Material: Aluminium body
Lighting Column: Three pieces extrude aluminium assembed trigon column
(stripe surface) , four aluminium bar supporting lampshade, powder coating
Lens: Clear glass toughened
Color: Standard color are Black,Dark grey RAL7016 or Light grey
RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP54

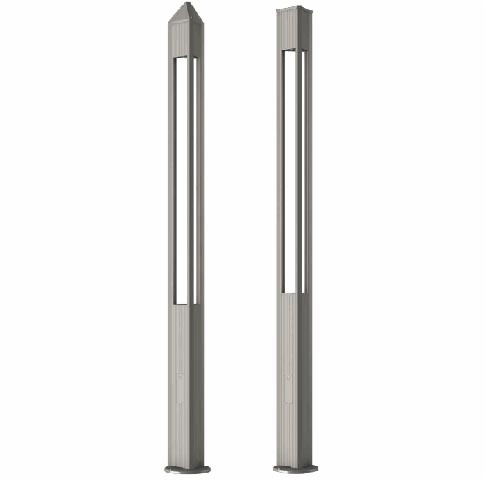

HA0003B1                             HA0003B2

Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HA0003B1-3.0 70W /150W G12 /E27 3.0m 21/20kg 27x27x300 28x28x300 50/150
HA0003B1-4.0 70W /150W G12 /E27 4.0m 25/24kg 27x27x400 28x28x400 50/100
HA0003B1-5.0 70W /150W G12 /E27 5.0m 31/30kg 27x27x500 28x28x500 50/100
HA0003B2-3.0 70W /150W G12 /E27 3.0m 21/20kg 27x27x300 28x28x300 50/150
HA0003B2-4.0 70W /150W G12 /E27 4.0m 25/24kg 27x27x400 28x28x400 50/100
HA0003B2-5.0 70W /150W G12 /E27 5.0m 31/30kg 27x27x500 28x28x500 50/100
