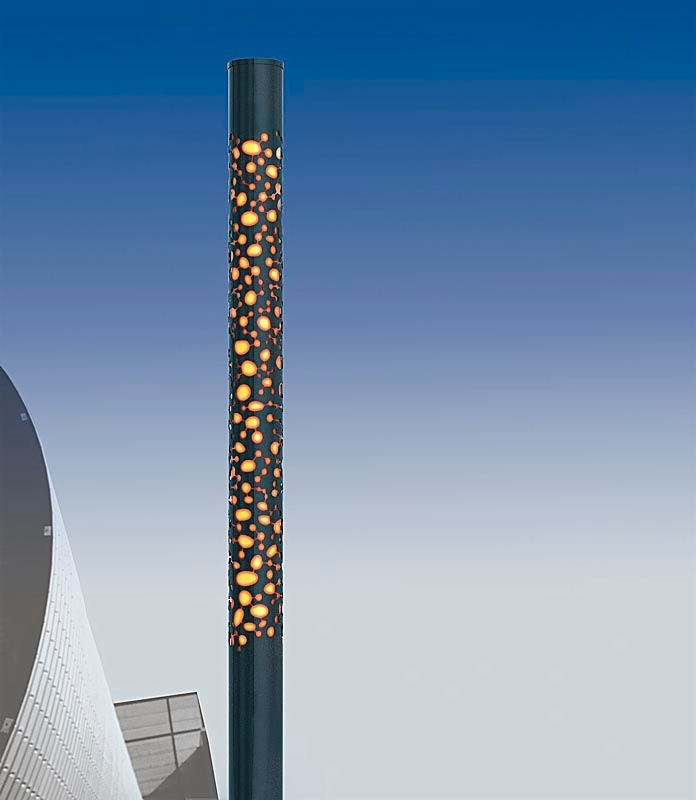

Modern Area/Site lighting Calo HA0005

Item Code:HA0005 Features:
  • Description

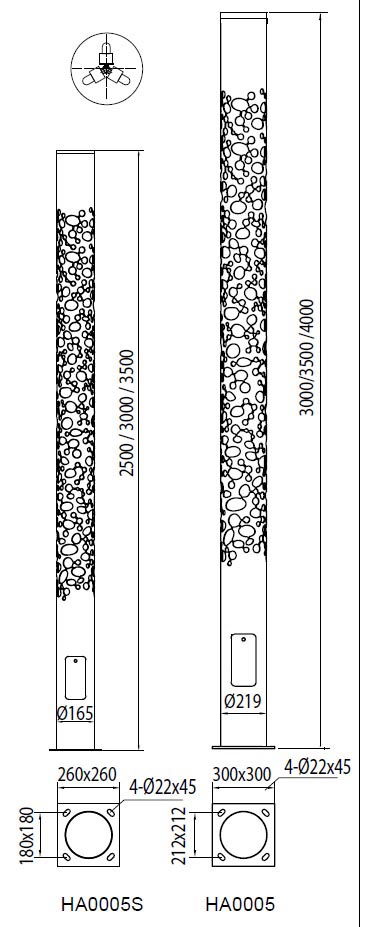

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number:Calo HA0005
Type: Modern Area/Site lighting
Style: Contemporary
Quality: High Quality
Price: Econimical
Warranty: 3 years

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Lamps: LED tube  or Fluorescent  lamp,70w-150w
Lamp Wattage: 3m:6*10W T5 led tube or 4*21W T5 Fluorescent
     3.5m: 6*15W T5 led tube or 4*28W T5 Fluorescent lamp
Input Voltage: 90-270VAC,50-60HZ or 12V-24VDC
Material: Steel body
Lighting Column: Hot dipped galvanized steel, powder coating
Lens: High efficiency acrylic refractor,
Color: Standard color are Black,Dark grey RAL7016 or
Light grey RAL 7042 are available
Standards:
Isolation degree Class I, IP Rating IP54

Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HA0005S-2.5 MAX 150W G13 2.5m 36/35kg 17X17x250 20x20x250 180/360
HA0005S-3.0 MAX 150W G13 3m 41/40kg 17X17x300 20x20x300 90/270
HA0005S-3.5 MAX 200W G13 3.5m 47/46kg 17X17x350 20x20x350 90/270
HA0005-3.0 MAX 150W G13 3m 57/56kg 22X22x300 24x24x300 70/210
HA0005-3.5 MAX 200W G13 3.5m 66/65kg 22X22x350 24x24x350 70/210
HA0005-4.0 MAX 200W G13 4m 74/73kg 22X22x400 24x24x400 70/140
