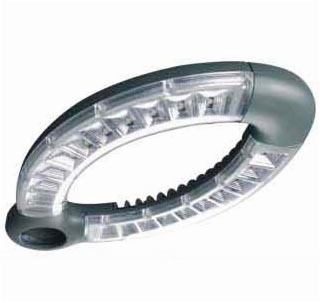

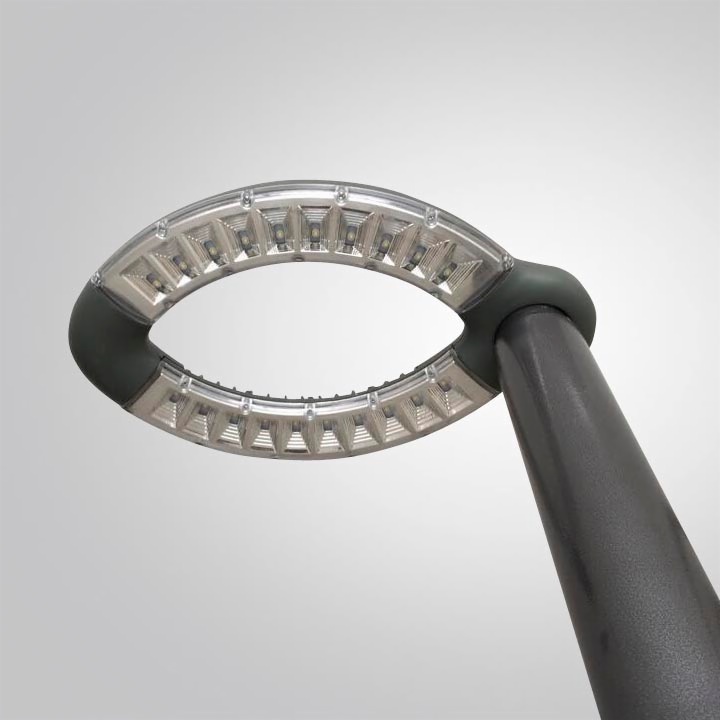

Modern Area/Site lighting Loop LED HA0023

Item Code:HA0023 Features:
  • Description

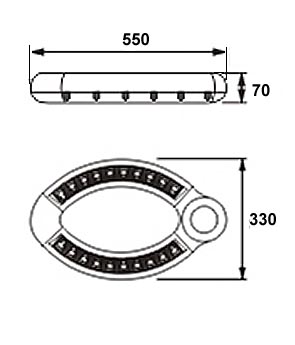

  • Dimensions

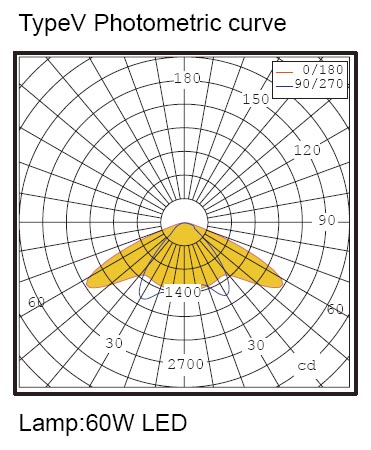

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Loop HA0023
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

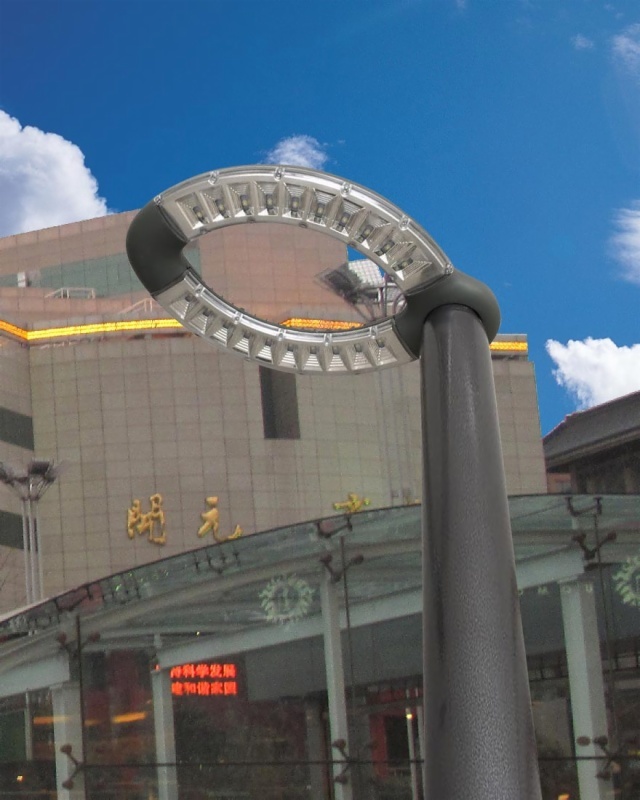

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Mounting : Post-top, suitable for Ø76mmx70mm tenon
Lamps: LED modules
Lamp Wattage: 20W/ 40W/ 60W
Input Voltage: 90-270V AC,50/60Hz or 12V/24V DC
Power Factor: >0.9
Luminous Flux: 100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): CRI>70
Beam Angel: 120x60°
Working Temperature: -40 to 50℃
Working Lifetime: 50000 hours
Material: AL, Aluminium body
Housing: Die cast aluminium,Polyester powder coating
Heat Sink: Die cast aluminium
lens: High efficiency acrylic refractor,
Color: Standard painting colors is black (BK) , dark grey(GY)
RAL7016 ,light grey(LG)(RAL7042),other color are available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HA0023-20-BR 20W 20pcs/Bridge 2400lm/350mA 3m-5m 4 /3 55x33X7 57x35x10 1400 /2800
HA0023-40-CR 40W 20pcs/CREE 4500lm/700mA 3m-5m 4 /3 55x33X7 57x35x10 1400 /2800
HA0023-60-CR 60W 20pcs/CREE 6700lm/1000mA 3m-5m 4 /3 55x33X7 57x35x10 1400 /2800
