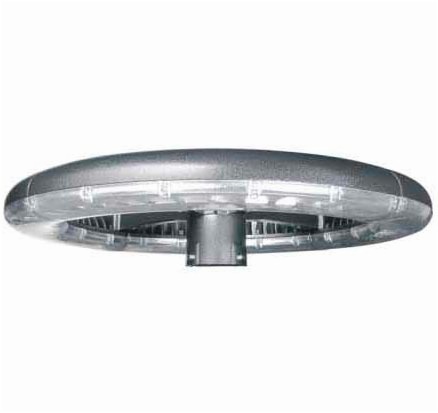

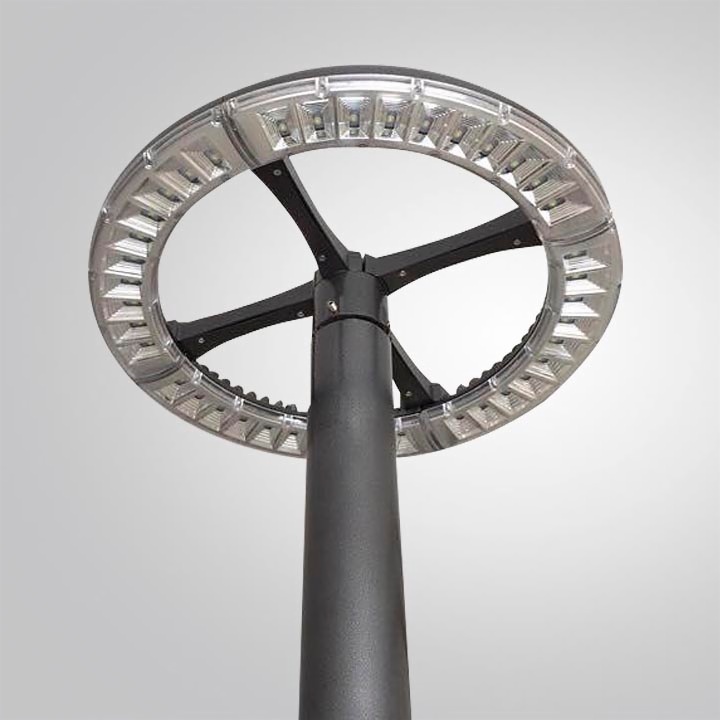

Modern Area/Site lighting Loop LED HA0021

Item Code:HA0021 Features:
  • Description

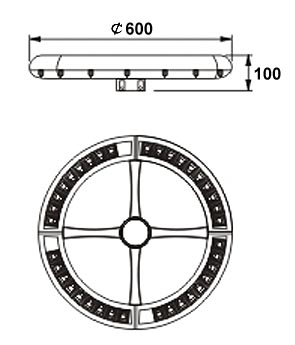

  • Dimensions

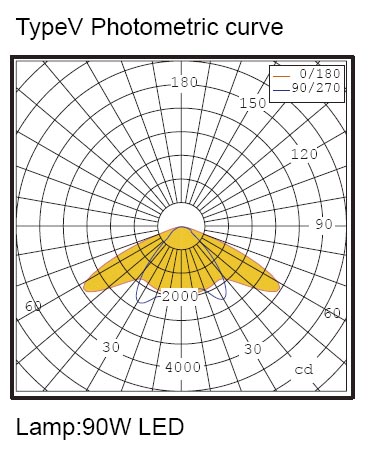

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Loop HA0021
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Mounting : Post-top, suitable for Ø76mmx80mm tenon
Lamps: LED modules
Lamp Wattage: 45W/ 90W
Input Voltage: 90-270V AC,50/60Hz or 12V/24V DC
Power Factor: >0.9
Luminous Flux: 100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): CRI>70
Beam Angel: 120x60°
Working Temperature: -40 to 50℃
Working Lifetime: 50000 hours
Material: AL, Aluminium body
Housing: Die cast aluminium,Polyester powder coating
Heat Sink: Die cast aluminium
lens: High efficiency acrylic refractor,
Color: Standard painting colors is black (BK) , dark grey(GY)
RAL7016 ,light grey(LG)(RAL7042),other color are available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HA0021-45-BR 45W 40pcs/Bridge 4800lm/350mA 3m-5m 6 /5 60x60X10 62x62x15 470 /940
HA0021-90-CR 90W 40pcs/CREE 9000lm/700mA 3m-5m 6 /5 60x60X10 62x62x15 470 /940
