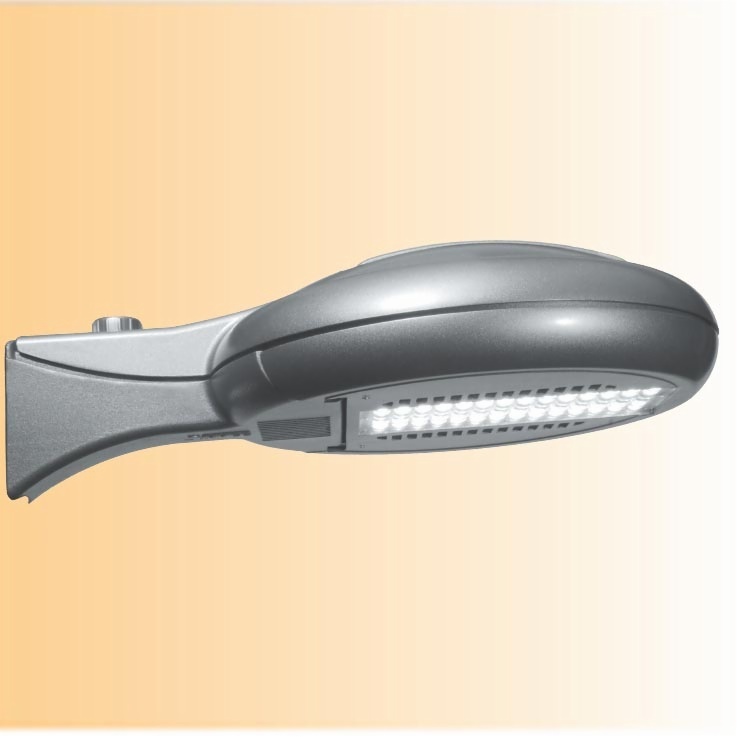

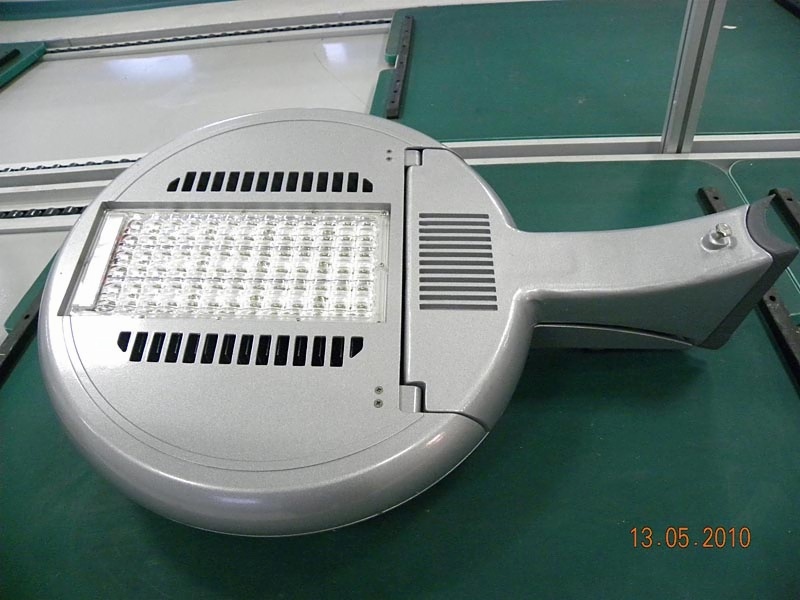

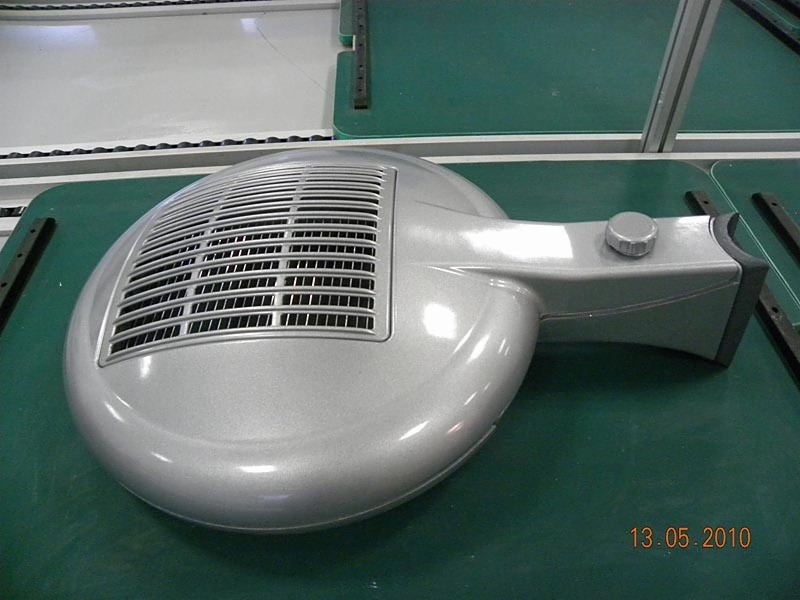

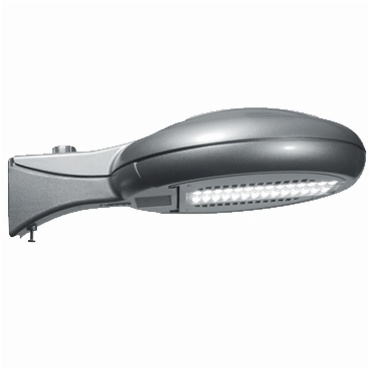

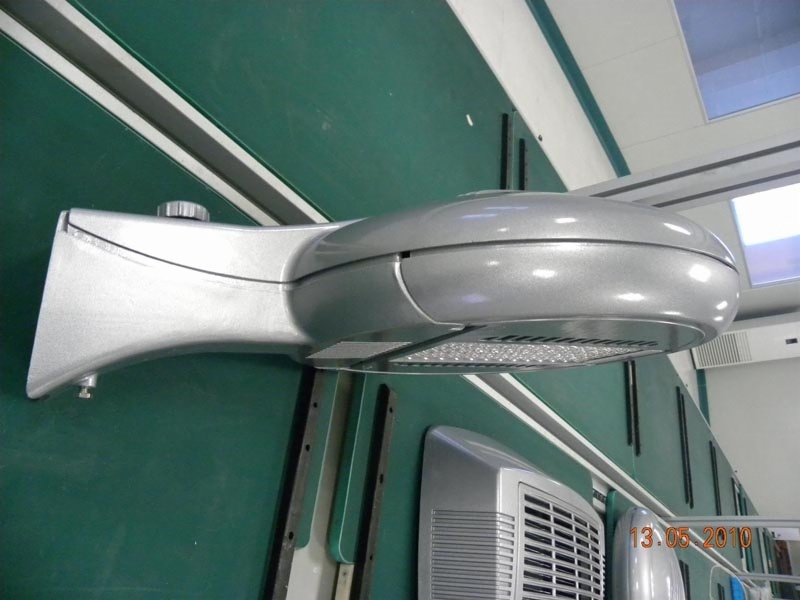

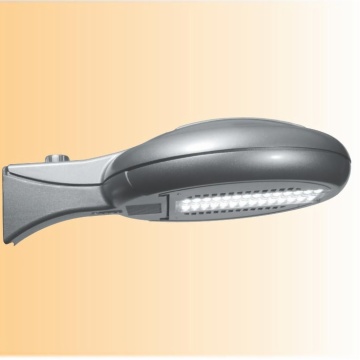

Garden Area/Site lighting Omega LED HA57

  • Description

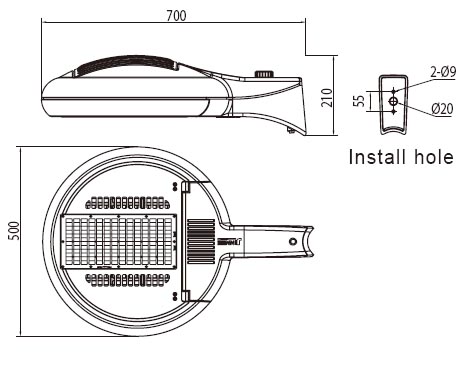

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Omega HA57 LED
Type:Garden Area/Site lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 5 years

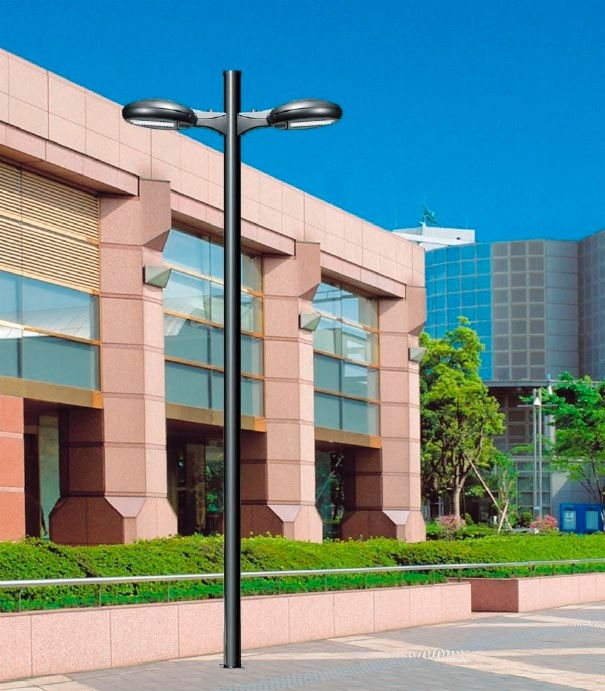

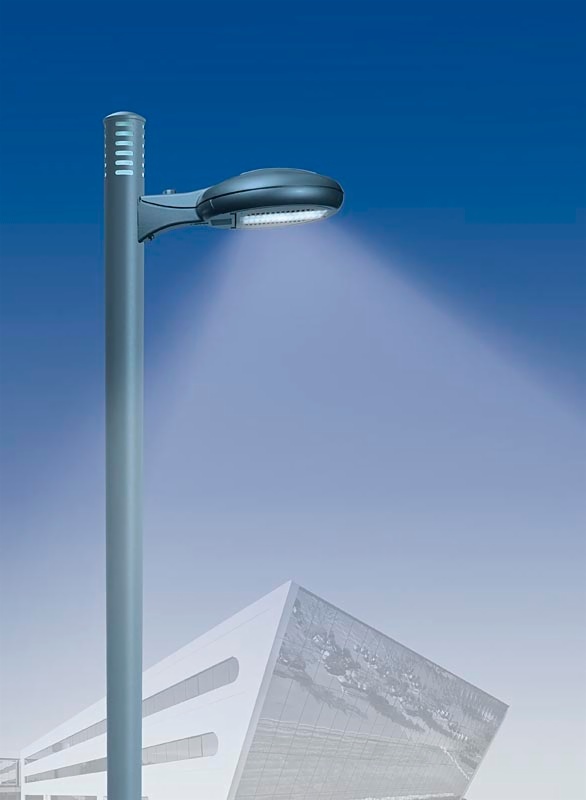

Application:Urban gardens and street , Squares areas,
Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-12m

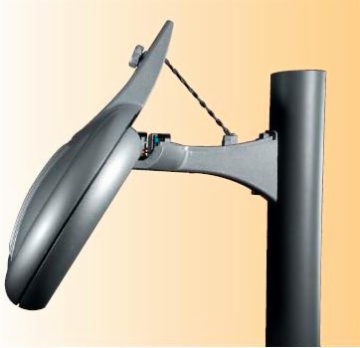

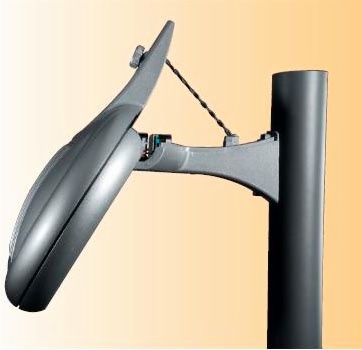

Mounting : Side-entry, fixing to pole with screws
Lamps: LED modules,LEDM-01
Lamp wattage: 20W-160W
Input Voltage: 90-305V AC,50/60HZ,or 12V/24V DC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours

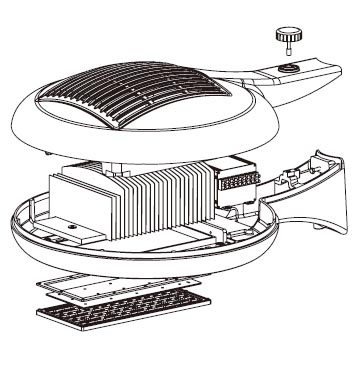

Material: FRP & aluminium, fiber glass cover,aluminium sink,
Cover: Fiberglass-reinforced plastics,excellent
  mechanical strength and bear the causticity

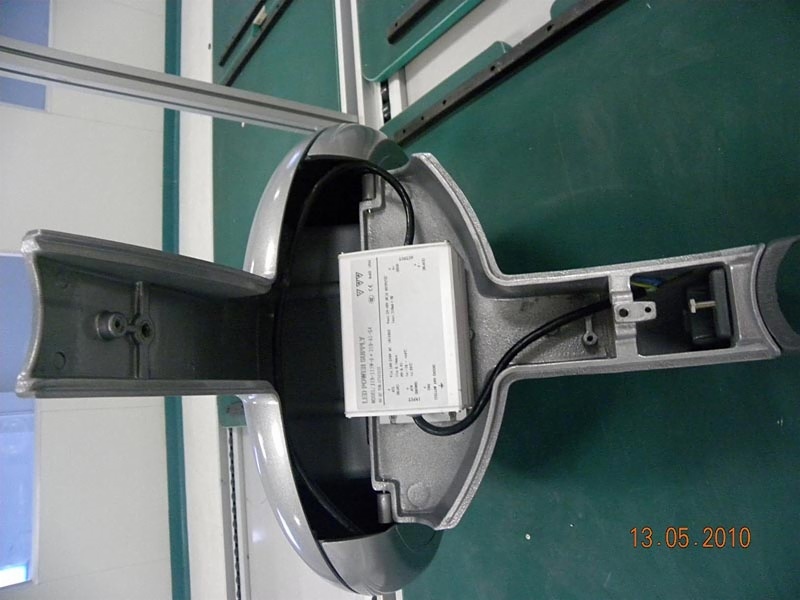

Driver housing: Heavy-duty die cast aluminium
Heat Sink: 6063 Exturde aluminium,
lens: High efficiency acrylic refractor
Color: Standard painting colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),silver grey(SG),White(WH),
 other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HA57-20-BR 20W 18pcs/Bridge 2160lm/350mA 3m-6m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-20-CR 20W 10pcs/CREE 2100lm/650mA 3m-6m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-30-BR 30W 27pcs/Bridge 3240lm/350mA 3m-6m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-30-CR 30W 14pcs/CREE 3150lm/700mA 3m-6m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-40-BR 40W 36pcs/Bridge 4320lm/350mA 3m-6m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-40-CR 40W 20pcs/CREE 4500lm/700mA 3m-6m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-50-BR 50W 44pcs/Bridge 5280lm/350mA 6m-9m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-50-CR 50W 24pcs/CREE 5400lm/700mA 6m-9m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-60-BR 60W 54pcs/Bridge 6480lm/350mA 6m-9m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-60-CR 60W 30pcs/CREE 6300lm/650mA 6m-9m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-70-BR 70W 60pcs/Bridge 7200lm/350mA 6m-9m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-70-CR 70W 33pcs/CREE 7425lm/700mA 6m-9m 11kg /10kg 70x50x21 73x55x23 300 /600
HA57-80-BR 80W 72pcs/Bridge 8640lm/350mA 6m-9m 12kg /11kg 70x50x21 73x55x23 300 /600
HA57-80-CR 80W 36pcs/CREE 8100lm/700mA 6m-9m 12kg /11kg 70x50x21 73x55x23 300 /600
HA57-100-CR 100W 48pcs/CREE 10800lm/700mA 10m-12m 12kg /11kg 70x50x21 73x55x23 300 /600
HA57-120-CR 120W 55pcs/CREE 12375lm/700mA 10m-12m 12kg /11kg 70x50x21 73x55x23 300 /600
HA57-140-CR 140W 66pcs/CREE 14850lm/700mA 10m-12m 12kg /11kg 70x50x21 73x55x23 300 /600
HA57-150-CR 150W 72pcs/CREE 16200lm/700mA 10m-12m 12kg /11kg 70x50x21 73x55x23 300 /600
HA57-160-CR 160W 78pcs/CREE 17550lm/700mA 10m-12m 12kg /11kg 70x50x21 73x55x23 300 /600
