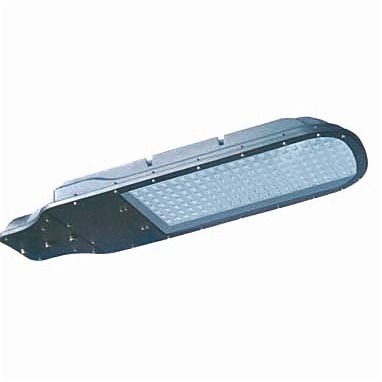

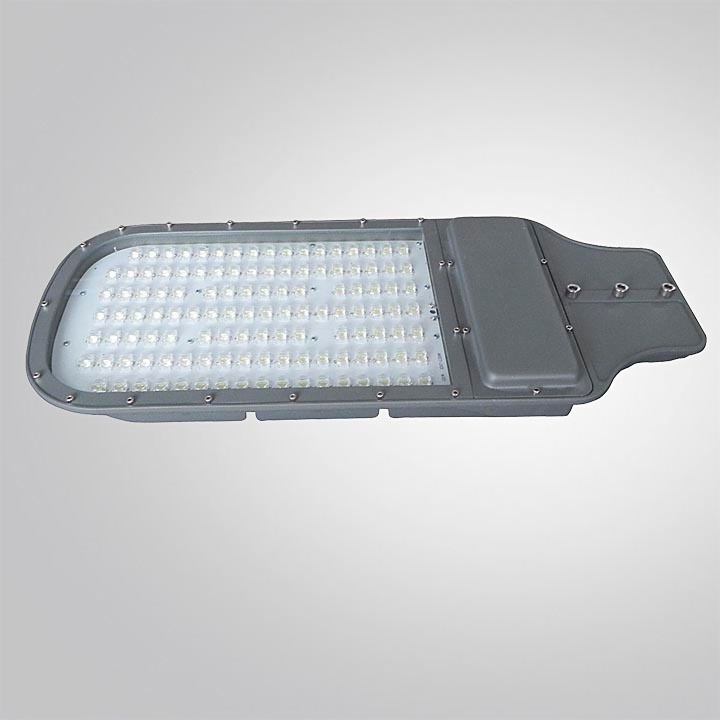

LED Street lighting Flat HL702

Item Code:HL702 Features:
  • Description

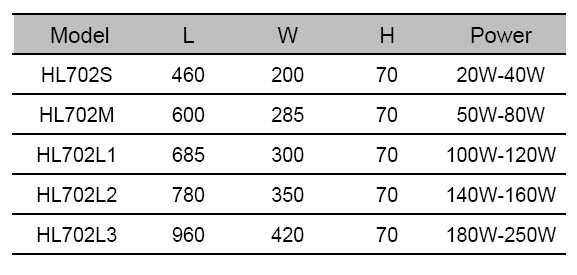

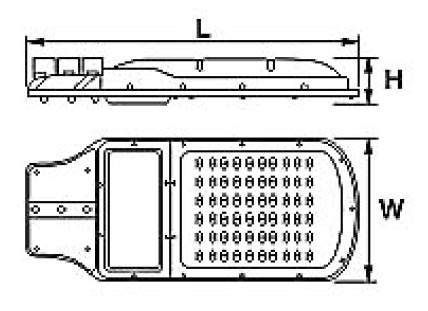

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Flat HL702
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Roads and highways,Urban roads and street,
Squares areas,Pedestrian areas, Residential areas,Parks
Installing Hight: 3-12m
Mounting : Side-entry,  Ø48- Ø60mm x120 spigot
Lamps: LED modules
Lamp wattage: 20W-280W
Input Voltage: 90-305V AC,50/60HZ or 12V/24VDC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: Bridgelux,Epistar
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40 to 50℃
Working Lifetime: 50000 hours
Material: Aluminium Body
Body: Die cast aluminium,Polyester powder coating

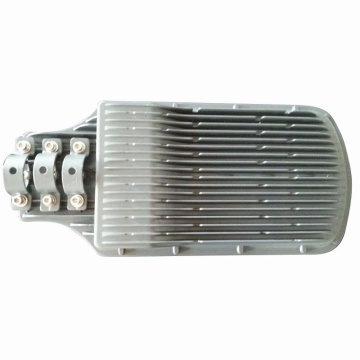

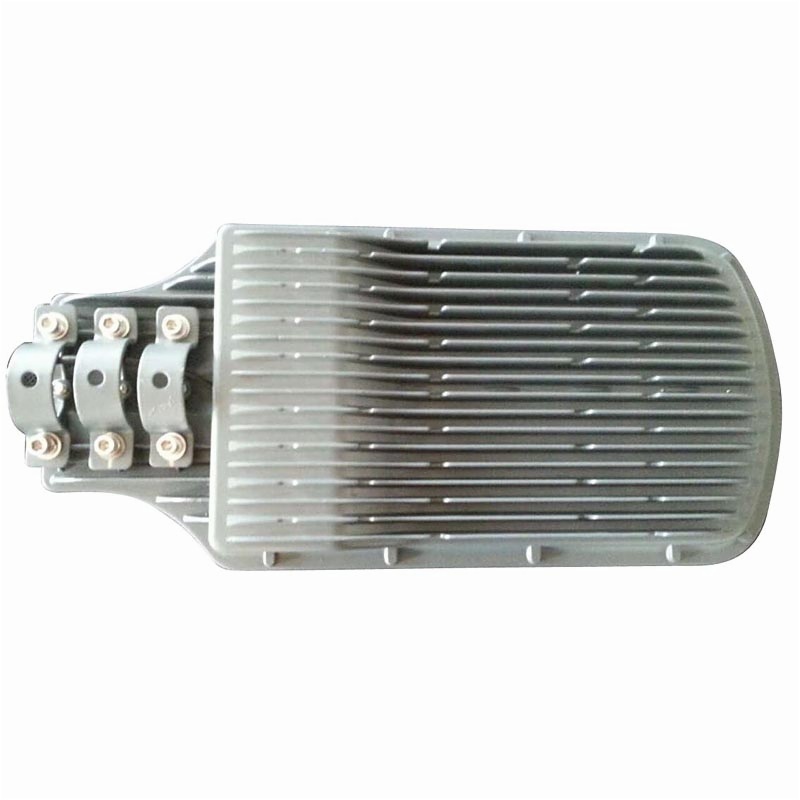

Heat Sink: Die cast aluminium,
lens: High efficiency acrylic refractor & glass outside,
Color: Standard painting colors is black (BK) , dark grey(GY)
RAL7016 ,light grey(LG)(RAL7042),other color are available
Standard:
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HL721-1-20-BR 20W 18pcs/Bridge 2160lm/350mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-1-30-BR 30W 27pcs/Bridge 3240lm/350mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-1-30-CR 30W 14pcs/CREE 3150lm/700mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-2-40-BR 40W 36pcs/Bridge 4320lm/350mA 3m-6m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-1-40-CR 40W 20pcs/CREE 4500lm/700mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-2-50-BR 50W 48pcs/Bridge 5760lm/350mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-1-50-CR 50W 24pcs/CREE 5400lm/700mA 6m-9m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-2-60-BR 60W 54pcs/Bridge 6480lm/350mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-1-60-CR 60W 30pcs/CREE 6750lm/700mA 6m-9m 6kg /5kg 43x31.5x13.5 45x34x18 900 /1800
HL721-2-70-BR 70W 60pcs/Bridge 7200lm/350mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-2-70-CR 70W 32pcs/CREE 7200m/700mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-3-80-BR 80W 72pcs/Bridge 8640lm/350mA 6m-9m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-2-80-CR 80W 36pcs/CREE 8100m/700mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-3-90-BR 90W 81pcs/Bridge 9720lm/350mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-2-90-CR 90W 42pcs/CREE 9450lm/700mA 10m-12m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-3-100-BR 100W 90pcs/Bridge 10800lm/350mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-2-100-CR 100W 48pcs/CREE 10800lm/700mA 10m-12m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-4-120-BR 120W 108pcs/Bridge 12960lm/350mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-2-120-CR 120W 54pcs/CREE 12150lm/700mA 10m-12m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-3-130-CR 130W 60pcs/CREE 13500lm/700mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-4-140-BR 140W 120pcs/Bridge 14400lm/350mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-5-150-BR 150W 135pcs/Bridge 16200lm/350mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
HL721-3-150-CR 150W 72pcs/CREE 16500lm/700mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-5-160-BR 160W 150pcs/Bridge 16200lm/350mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
HL721-6-180-BR 180W 162pcs/Bridge 19440lm/350mA 10m-12m 10kg /9kg 80x31.5x13.5 82x34x18 560 /1120
HL721-3-180-CR 180W 81pcs/CREE 18225lm/700mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-6-200-BR 200W 180pcs/Bridge 21600lm/350mA 10m-12m 10kg /9kg 80x31.5x13.5 82x34x18 560 /1120
HL721-4-200-CR 200W 90pcs/CREE 20250lm/700mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-7-240-BR 240W 210pcs/Bridge 25200lm/350mA 10m-12m 11kg /10kg 87x31.5x13.5 89x34x18 500 /1000
HL721-4-240-CR 240W 108pcs/CREE 24300lm/700mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-4-260-CR 260W 120pcs/CREE 27000lm/700mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-8-280-BR 280W 240pcs/Bridge 28800lm/350mA 10m-12m 12kg /11kg 94x31.5x13.5 96x34x18 470 /940
HL721-5-280-CR 280W 135pcs/CREE 30375lm/700mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
HL721-5-320-CR 320W 150pcs/CREE 33750lm/700mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
