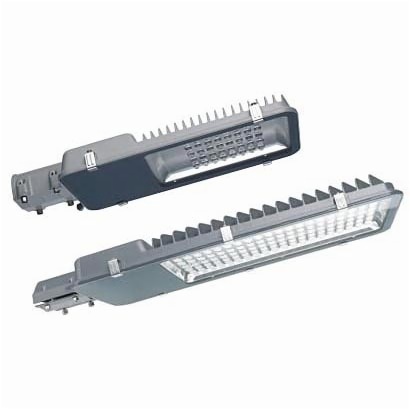

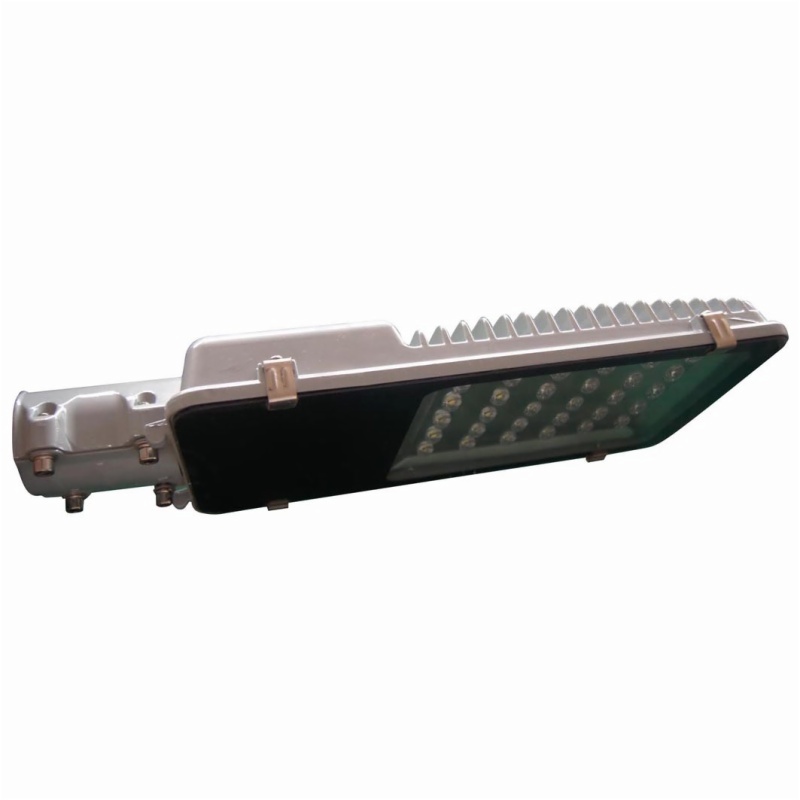

LED Street lighting Flat HL701

Item Code:HL701 Features:
  • Description

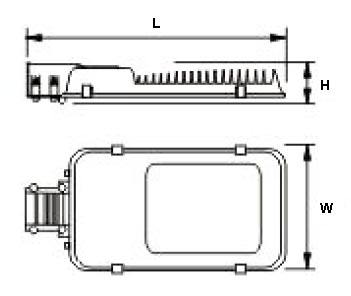

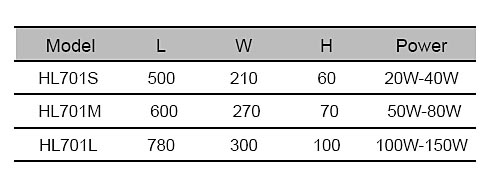

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Flat HL701
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Roads and highways,Urban roads and street,
Squares areas,Pedestrian areas, Residential areas,Parks
Installing Hight: 3-12m
Mounting : Side-entry,  Ø48- Ø60mm x120 spigot
Lamps: LED modules
Lamp wattage: 20W-150W
Input Voltage: 90-305V AC,50/60HZ or 12V/24VDC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: Bridgelux,Epistar
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40 to 50℃
Working Lifetime: 50000 hours
Material: Aluminium Body
Body: Die cast aluminium,Polyester powder coating

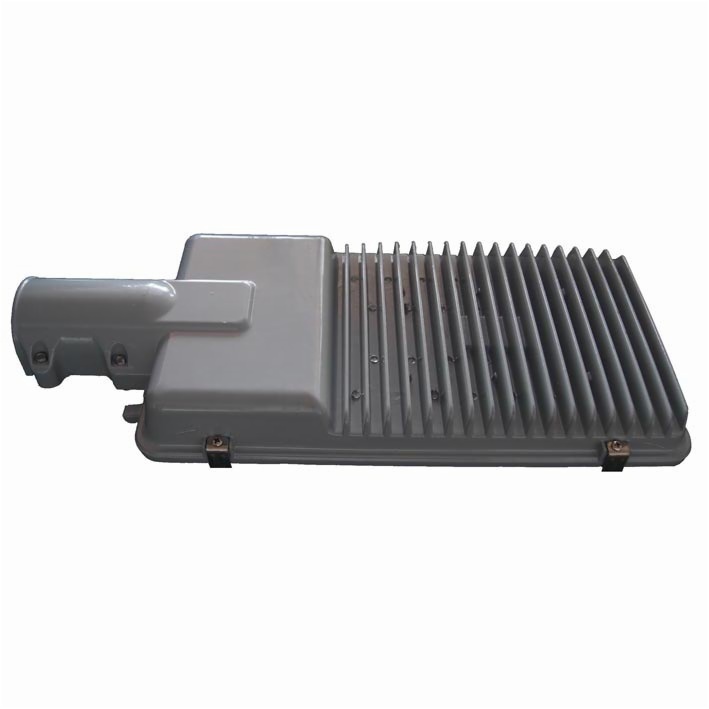

Heat Sink: Die cast aluminium,
lens: High efficiency acrylic refractor & glass outside,
Color: Standard painting colors is black (BK) , dark grey(GY)
RAL7016 ,light grey(LG)(RAL7042),other color are available
Standard:
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HL701S-20-BR 20W 18pcs/Bridge 2160lm/350mA 3m-6m 4kg /3kg 50x21X6 52x23x10 2000/4000
HL701S-30-BR 30W 27pcs/Bridge 3240lm/350mA 3m-6m 4kg /3kg 50x21X6 52x23x10 2000/4000
HL701S-40-BR 40W 36pcs/Bridge 4320lm/350mA 3m-6m 4kg /3kg 50x21X6 52x23x10 2000/4000
HL701M-50-BR 50W 44pcs/Bridge 5280lm/350mA 6m-9m 6kg /5kg 60x27X7 62x29x10 1500/3000
HL701M-60-BR 60W 54pcs/Bridge 6480lm/350mA 6m-9m 6kg /5kg 60x27X7 62x29x10 1500/3000
HL701M-70-BR 70W 60pcs/Bridge 7200lm/350mA 6m-9m 6kg /5kg 60x27X7 62x29x10 1500/3000
HL701M-80-BR 80W 72pcs/Bridge 8640lm/350mA 6m-9m 6kg /5kg 60x27X7 62x29x10 1500/3000
HL701L-90-BR 90W 81pcs/Bridge 9720lm/350mA 10m-12m 7kg /6kg 78x30X10 80x32x12 900/1800
HL701L-100-BR 100W 90pcs/Bridge 10800lm/350mA 10m-12m 7kg /6kg 78x30X10 80x32x12 900/1800
HL701L-120-BR 120W 108pcs/Bridge 12960lm/350mA 10m-12m 7kg /6kg 78x30X10 80x32x12 900/1800
HL701L-140-BR 140W 120pcs/Bridge 14400lm/350mA 10m-12m 7kg /6kg 78x30X10 80x32x12 900/1800
HL701L-150-BR 150W 135pcs/Bridge 16200lm/350mA 10m-12m 7kg /6kg 78x30X10 80x32x12 900/1800
