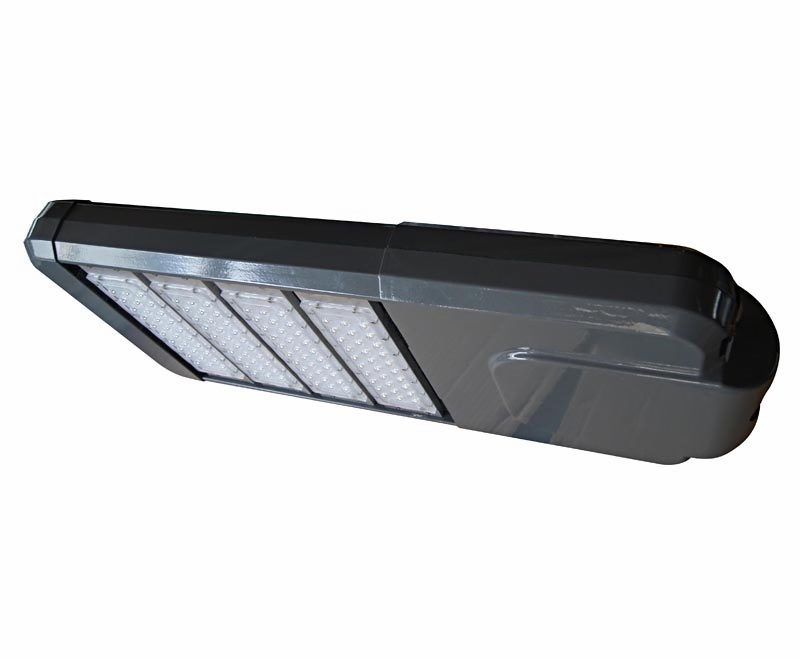

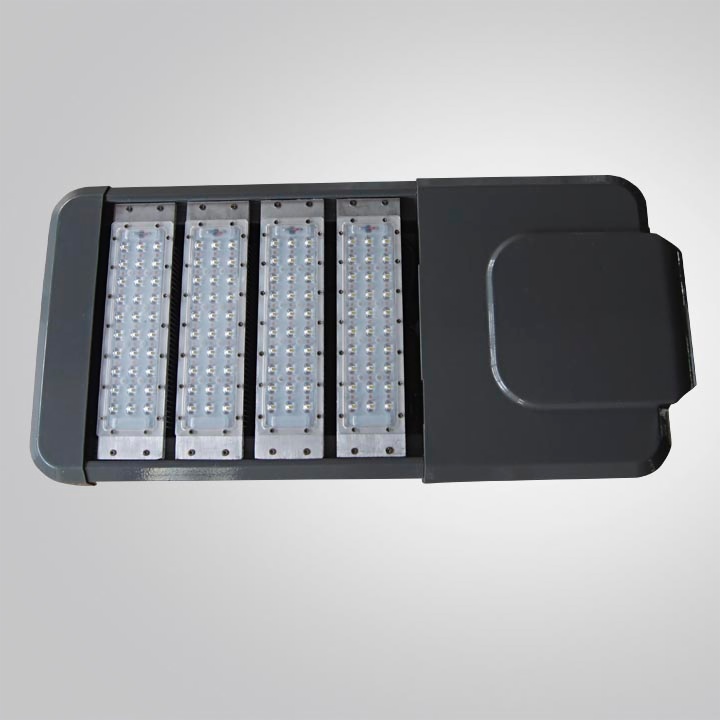

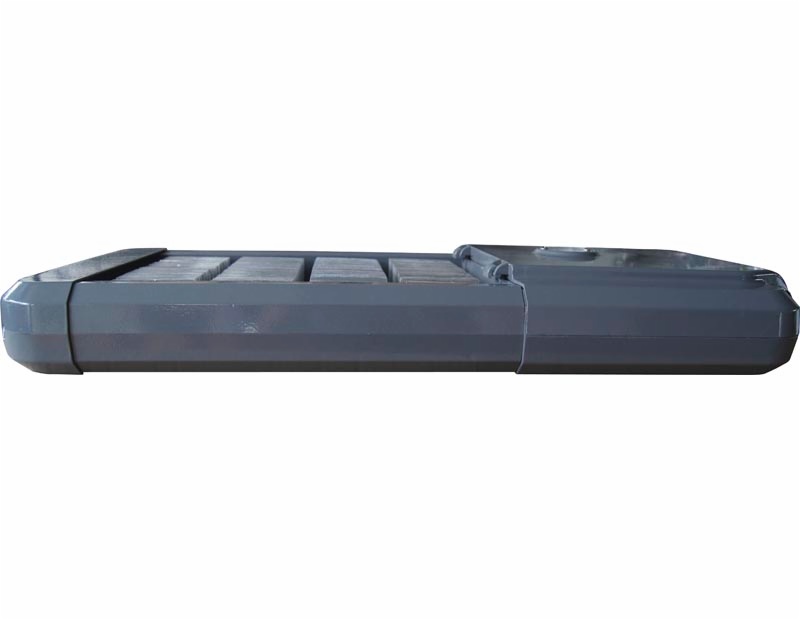

LED Street lighting Varier HL720 LED

  • Description

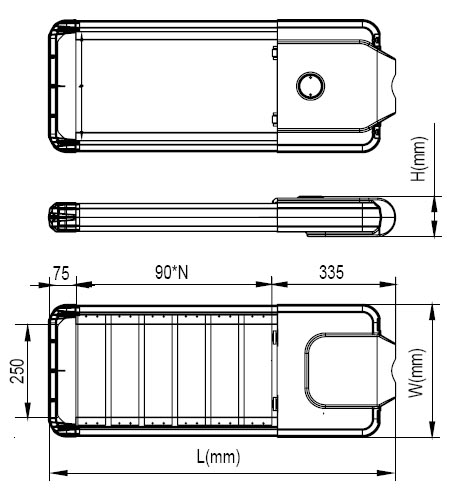

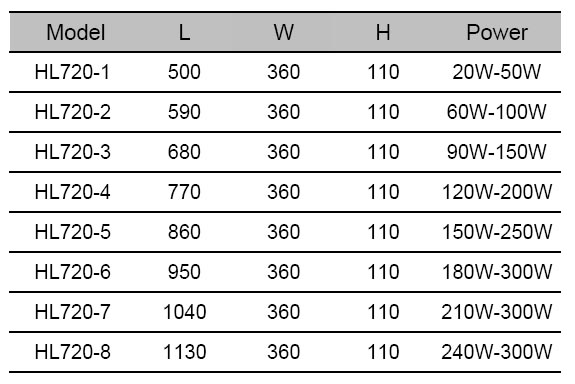

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Varier HL720
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 5 years

Application: Roads and highways,Urban roads and street,
             Squares areas,Pedestrian areas,Parks
Installing Hight: 3-12m
Mounting : Side-entry or Post top,  Ø48- Ø60mm x120mm spigot

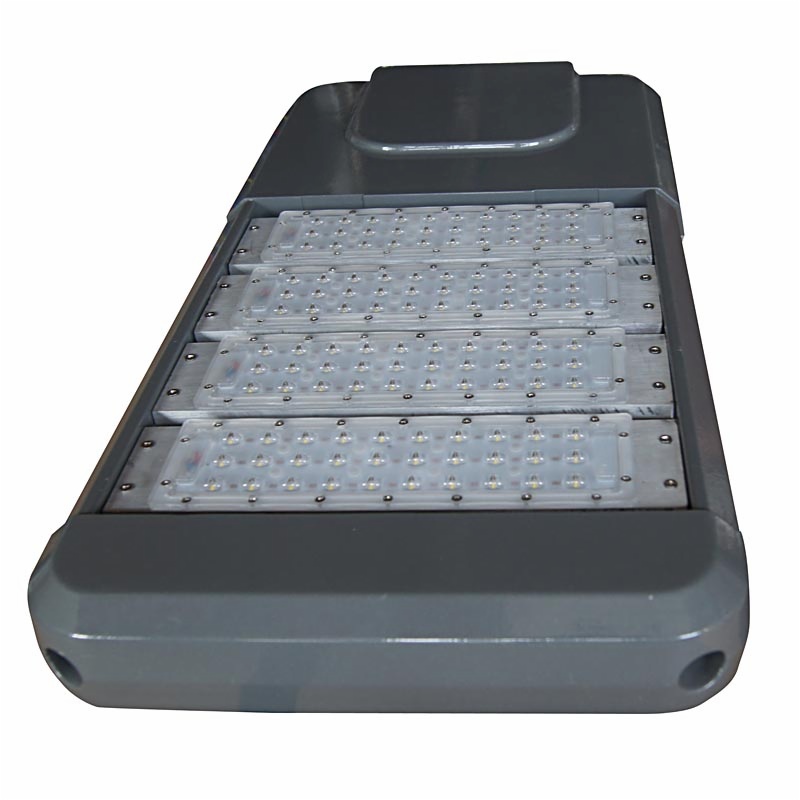

Lamps: LED modules,,LED-M20(30pcs),LED-M25(30pcs),LED-M26(30pcs)
Lamp wattage: 30W-300W
Input Voltage: 90-305V AC,50/60HZ,or 12V/24V DC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux

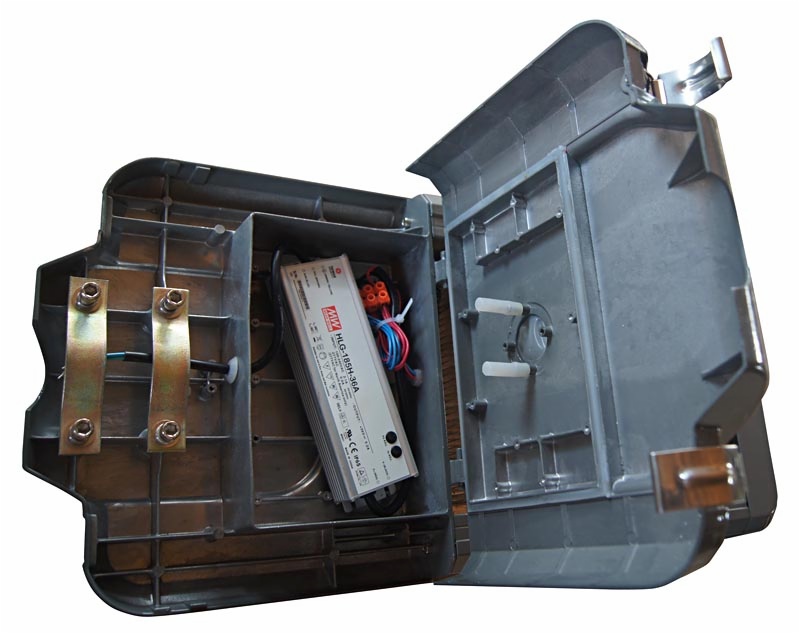

LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours
Material: Aluminium body,
Body: Die cast aluminium,polyster powder coating.

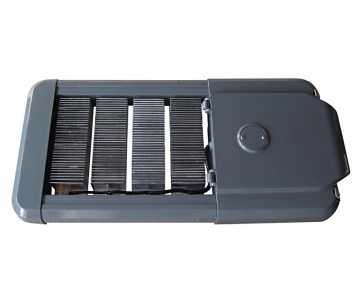

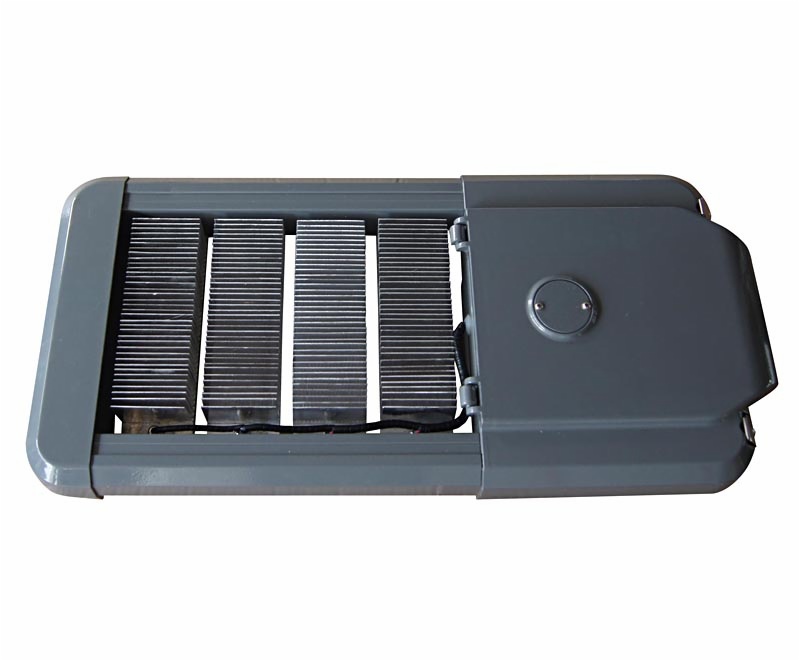

Heat sink: 6063 extrude aluminium
Lens: High efficiency acrylic refractor

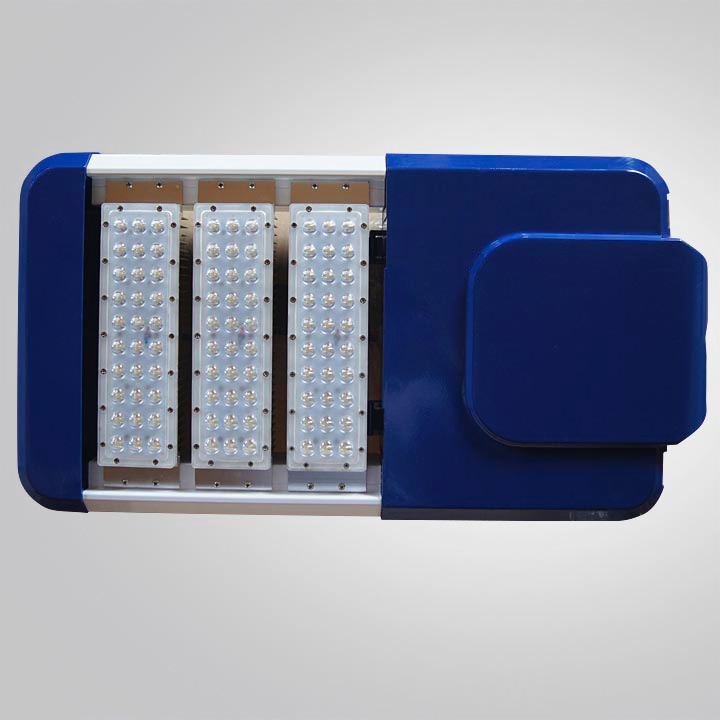

Color: Standard painting colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),silver grey(SG),White(WH),
 other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HL720-1-40-CR-M25 40W 20pcs/CREE 4500lm/700mA 3m-6m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-1-60-CR-M25 60W 30pcs/CREE 6750lm/700mA 6m-9m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-2-80-CR-M25 80W 40pcs/CREE 9000m/700mA 6m-9m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-2-100-CR-M25 100W 60pcs/CREE 10800lm/550mA 10m-12m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-2-120-CR-M25 120W 60pcs/CREE 13500lm/700mA 10m-12m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-3-150-CR-M25 150W 90pcs/CREE 16200lm/550mA 10m-12m 9kg /8kg 68x36x11 71x38x20 500 /1000
HL720-3-180-CR-M25 180W 90pcs/CREE 20250lm/700mA 10m-12m 9kg /8kg 68x36x11 71x38x20 500 /1000
HL720-3-200-CR-M25 200W 90pcs/CREE 20250lm/700mA 10m-12m 9kg /8kg 68x36x11 71x38x20 500 /1000
HL720-4-240-CR-M25 240W 120pcs/CREE 27000lm/700mA 10m-12m 10kg /9kg 77x36x11 80x38x20 450 /900
HL720-5-300-CR-M25 300W 150pcs/CREE 33750lm/700mA 10m-12m 11kg /10kg 86x36x11 89x38x20 400 /800
HL720-1-20-BR-M26 20W 18pcs/Bridge 2160lm/350mA 3m-6m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-1-30-BR-M26 30W 27pcs/Bridge 3240lm/350mA 3m-6m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-2-40-BR-M26 40W 36pcs/Bridge 4320lm/350mA 3m-6m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-2-50-BR-M26 50W 48pcs/Bridge 5760lm/350mA 6m-9m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-2-60-BR-M26 60W 54pcs/Bridge 6480lm/350mA 6m-9m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-2-70-BR-M26 70W 60pcs/Bridge 7200lm/350mA 6m-9m 8kg /7kg 59x36x11 62x38x20 560 /1120
HL720-3-80-BR-M26 80W 72pcs/Bridge 8640lm/350mA 6m-9m 9kg /8kg 68x36x11 71x38x20 500 /1000
HL720-3-90-BR-M26 90W 81pcs/Bridge 9720lm/350mA 10m-12m 9kg /8kg 68x36x11 71x38x20 500 /1000
HL720-3-100-BR-M26 100W 90pcs/Bridge 10800lm/350mA 10m-12m 9kg /8kg 68x36x11 71x38x20 500 /1000
HL720-4-120-BR-M26 120W 108pcs/Bridge 12960lm/350mA 10m-12m 10kg /9kg 77x36x11 80x38x20 450 /900
HL720-4-140-BR-M26 140W 120pcs/Bridge 14400lm/350mA 10m-12m 10kg /9kg 77x36x11 80x38x20 450 /900
HL720-5-150-BR-M26 150W 135pcs/Bridge 16200lm/350mA 10m-12m 11kg /10kg 86x36x11 89x38x20 400 /800
HL720-5-160-BR-M26 160W 150pcs/Bridge 16200lm/350mA 10m-12m 11kg /10kg 86x36x11 89x38x20 400 /800
HL720-6-180-BR-M26 180W 162pcs/Bridge 19440lm/350mA 10m-12m 12kg /11kg 95x36x11 98x38x20 370 /740
HL720-6-200-BR-M26 200W 180pcs/Bridge 21600lm/350mA 10m-12m 12kg /11kg 95x36x11 98x38x20 370 /740
HL720-7-240-BR-M26 240W 210pcs/Bridge 25200lm/350mA 10m-12m 13kg /12kg 104x36x11 107x38x20 350 /700
HL720-8-280-BR-M26 280W 240pcs/Bridge 28800lm/350mA 10m-12m 14kg /13kg 113x36x11 116x38x20 310 /620
HL720-1-30-BR-M20 30W 30pcs/Bridge 4350lm/100mA 3m-6m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-1-40-BR-M20 40W 30pcs/Bridge 5600lm/100mA 3m-6m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-1-45-BR-M20 45W 30pcs/Bridge 5850lm/100mA 3m-6m 7kg /6kg 50x36x11 53x38x20 700 /1400
HL720-2-60-BR-M20 60W 60pcs/Bridge 8700lm/100mA 6m-9m 8kg /7kg 60x36x11 63x38x20 560 /1120
HL720-2-80-BR-M20 80W 60pcs/Bridge 11200lm/100mA 6m-9m 8kg /7kg 60x36x11 63x38x20 560 /1120
HL720-2-90-BR-M20 90W 60pcs/Bridge 11700lm/100mA 10m-12m 8kg /7kg 60x36x11 63x38x20 560 /1120
HL720-3-120-BR-M20 120W 90pcs/Bridge 16800lm/100mA 10m-12m 9kg /8kg 70x36x11 73x38x20 500 /1000
HL720-3-135-BR-M20 135W 90pcs/Bridge 17550lm/100mA 10m-12m 9kg /8kg 70x36x11 73x38x20 500 /1000
HL720-4-160-BR-M20 160W 120pcs/Bridge 22400lm/100mA 10m-12m 10kg /9kg 79x36x11 82x38x20 450 /900
HL720-4-180-BR-M20 180W 120pcs/Bridge 23400lm/100mA 10m-12m 10kg /9kg 79x36x11 82x38x20 450 /900
HL720-5-200-BR-M20 200W 150pcs/Bridge 28000lm/100mA 10m-12m 11kg /10kg 89x36x11 92x38x20 400 /800
HL720-5-225-BR-M20 225W 150pcs/Bridge 29250lm/100mA 10m-12m 11kg /10kg 89x36x11 92x38x20 400 /800
HL720-6-240-BR-M20 240W 180pcs/Bridge 33600lm/100mA 10m-12m 12kg /11kg 98x36x11 101x38x20 370 /740
HL720-6-270-BR-M20 270W 180pcs/Bridge 35100lm/100mA 10m-12m 12kg /11kg 98x36x11 101x38x20 370 /740



►HL720 PDF Brochure

Please contact HSO to get more information and high resolution catalog &pictures
