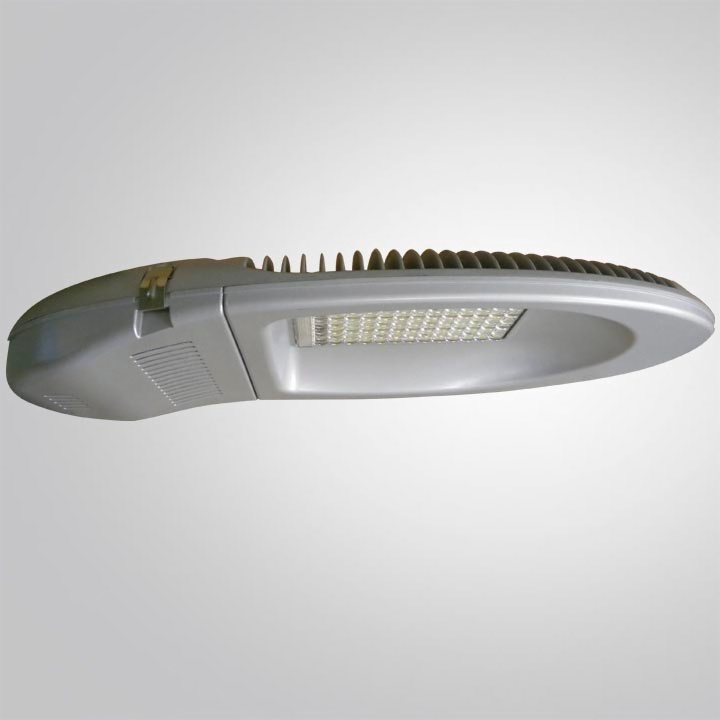

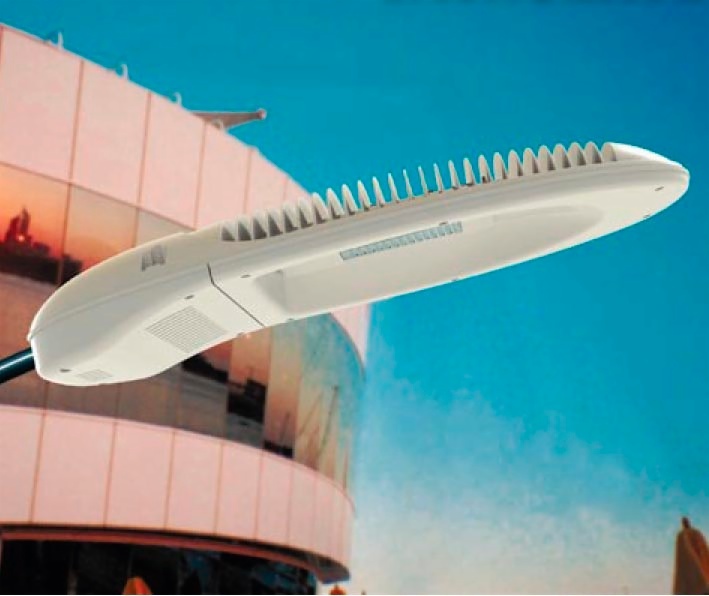

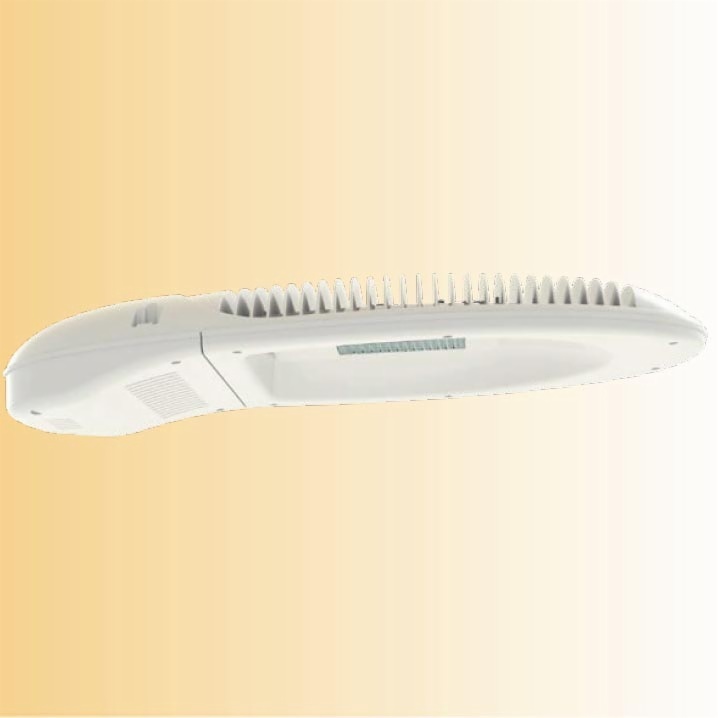

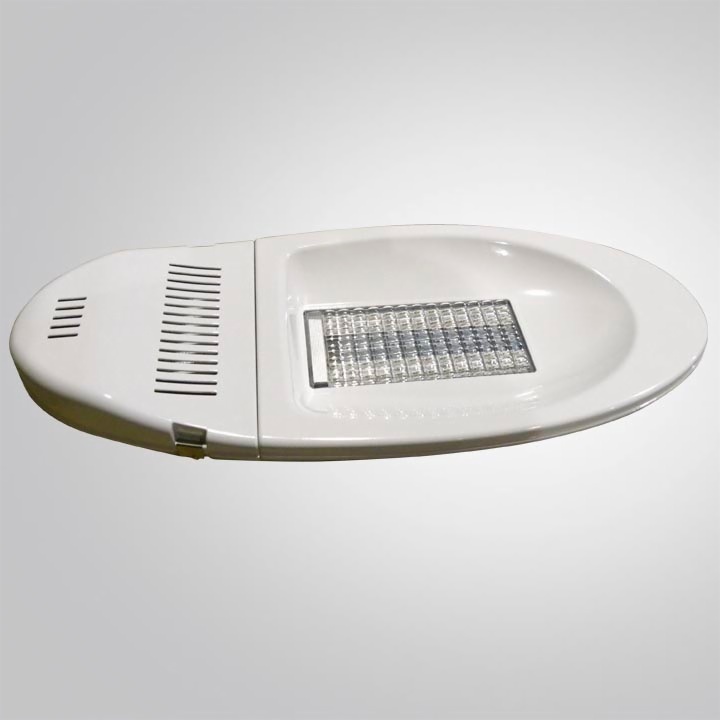

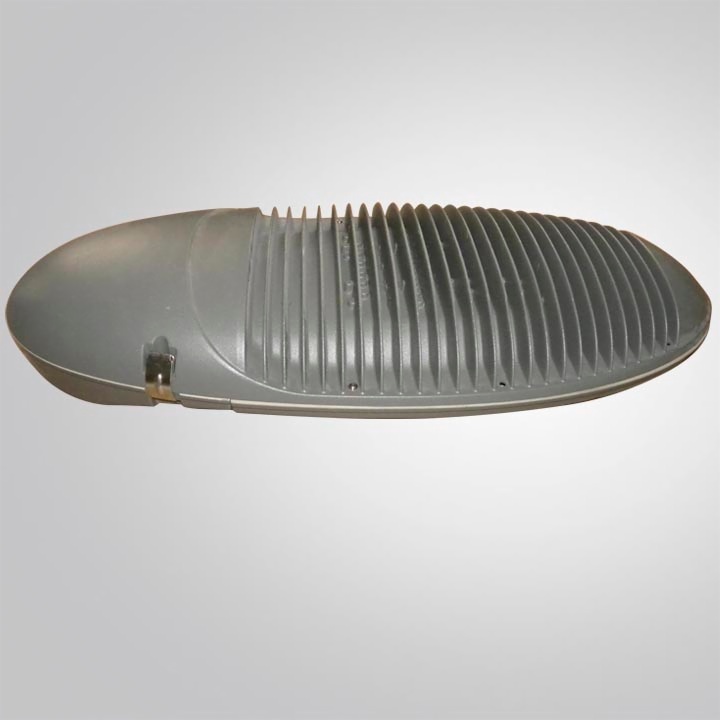

LED Street lighting Meilin HL80

  • Description

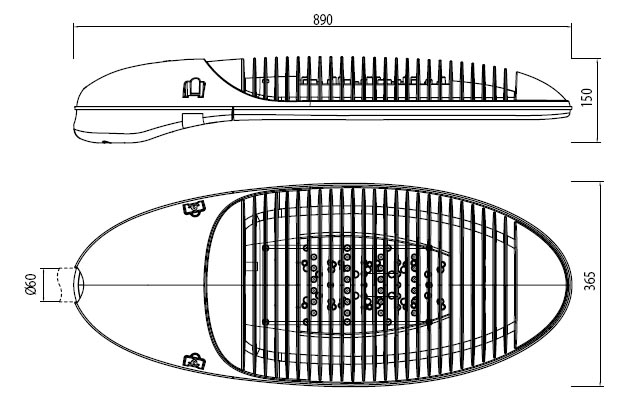

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Meilin HL80
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 5 years

Application: Roads and highways,Urban roads and street,
             Squares areas,Pedestrian areas,Parks
Installing Hight: 3-12m
Mounting : Side-entry, Ø60mm x120mm spigot
Lamps: LED modules,LEDM-01
Lamp wattage: 20W-160W
Input Voltage: 90-305V AC,50/60HZ,or 12V/24V DC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours
Material: FRP & aluminium, fiber glass cover,aluminium sink,
Lower cover: Fiberglass-reinforced plastics,excellent
                 mechanical strength and bear the causticity
Top cover with heat sink: Heavy-duty die cast aluminium
Lens: High efficiency acrylic refractor
Color: Standard painting colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),Silver grey(SG),White(WH),
 other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65



Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HL80-20-CR 20W 10pcs/CREE 2100lm/650mA 3m-6m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-30-BR 30W 27pcs/Bridge 3240lm/350mA 3m-6m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-30-CR 30W 14pcs/CREE 3150lm/700mA 3m-6m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-40-BR 40W 36pcs/Bridge 4320lm/350mA 3m-6m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-40-CR 40W 20pcs/CREE 4500lm/700mA 3m-6m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-50-BR 50W 44pcs/Bridge 5280lm/350mA 6m-9m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-50-CR 50W 24pcs/CREE 5400lm/700mA 6m-9m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-60-BR 60W 54pcs/Bridge 6480lm/350mA 6m-9m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-60-CR 60W 30pcs/CREE 6300lm/650mA 6m-9m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-70-BR 70W 60pcs/Bridge 7200lm/350mA 6m-9m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-70-CR 70W 33pcs/CREE 7425lm/700mA 6m-9m 11kg /10kg 89x36.5x15 90x40x18 400 /800
HL80-80-BR 80W 72pcs/Bridge 8640lm/350mA 6m-9m 12kg /11kg 89x36.5x15 90x40x18 400 /800
HL80-80-CR 80W 36pcs/CREE 8100lm/700mA 6m-9m 12kg /11kg 89x36.5x15 90x40x18 400 /800
HL80-100-CR 100W 48pcs/CREE 10800lm/700mA 10m-12m 12kg /11kg 89x36.5x15 90x40x18 400 /800
HL80-120-CR 120W 55pcs/CREE 12375lm/700mA 10m-12m 12kg /11kg 89x36.5x15 90x40x18 400 /800
HL80-140-CR 140W 66pcs/CREE 14850lm/700mA 10m-12m 12kg /11kg 89x36.5x15 90x40x18 400 /800
HL80-150-CR 150W 72pcs/CREE 16200lm/700mA 10m-12m 12kg /11kg 89x36.5x15 90x40x18 400 /800
HL80-160-CR 160W 78pcs/CREE 17550lm/700mA 10m-12m 12kg /11kg 89x36.5x15 90x40x18 400 /800
