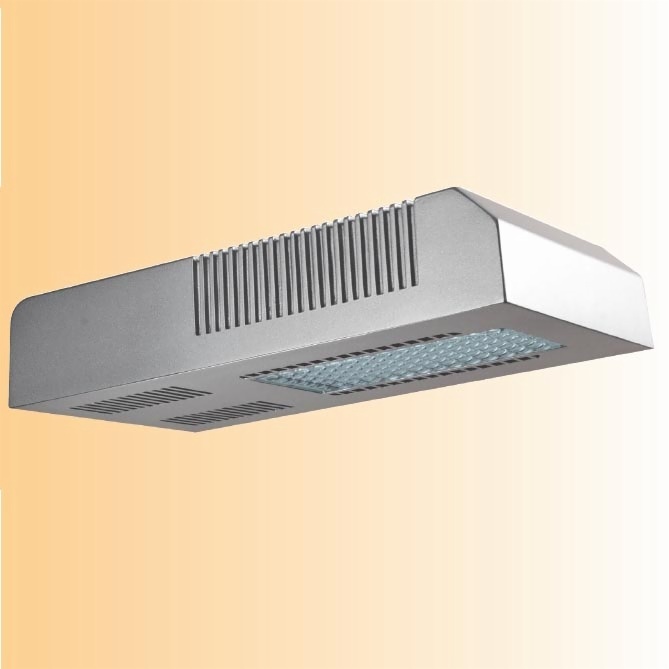

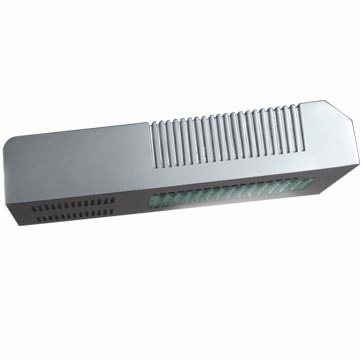

Number: Box HL60
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 5 years

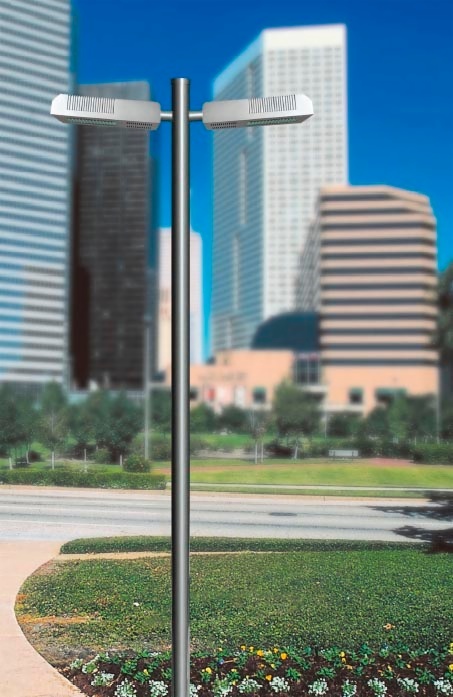

Application: Roads and highways,Urban roads and street,
Squares areas,Pedestrian areas,Parks
Installing Hight: 3-12m

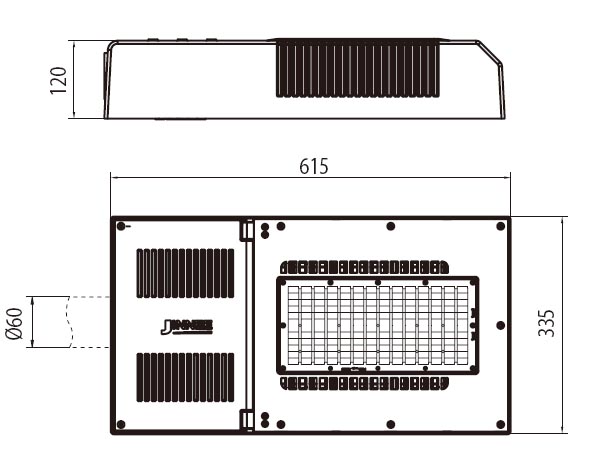

Mounting : Side-entry, Ø60mm x120mm spigot
Lamps: LED modules,LEDM-01
Lamp wattage: 20W-160W
Input Voltage: 90-305V AC,50/60HZ,or 12V/24V DC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours
Material: FRP & aluminium, fiber glass cover,aluminium sink,
Cover: Fiberglass-reinforced plastics,excellent
mechanical strength and bear the causticity
Driver housing: Heavy-duty die cast aluminium
Heat Sink: 6063 Exturde aluminium,
lens: High efficiency acrylic refractor
Color: Standard painting colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),Silver grey(SG),White(WH),
other colors are available
Standard:
Isolation degree Class I, IP Rating(optical) IP65
