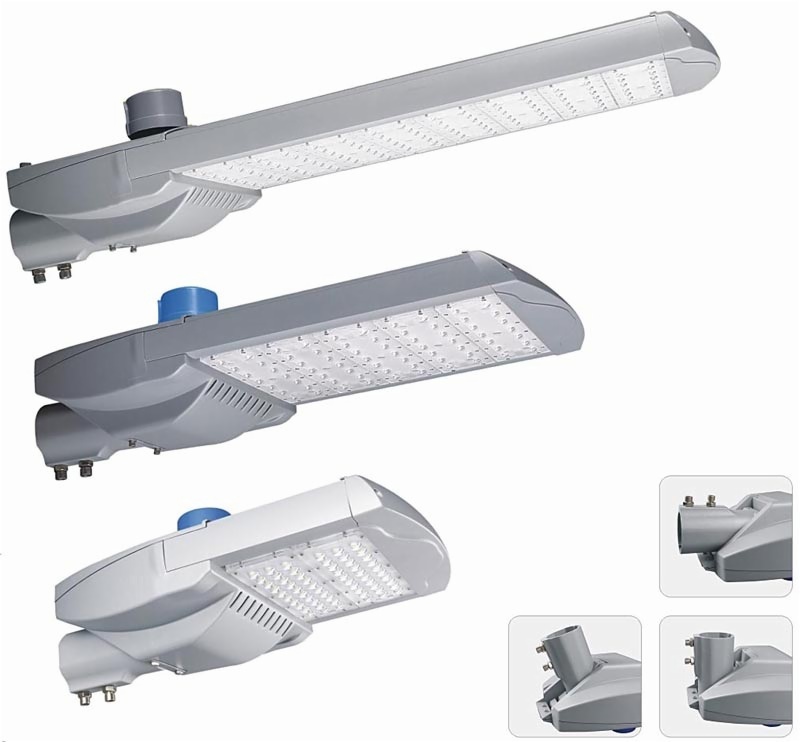

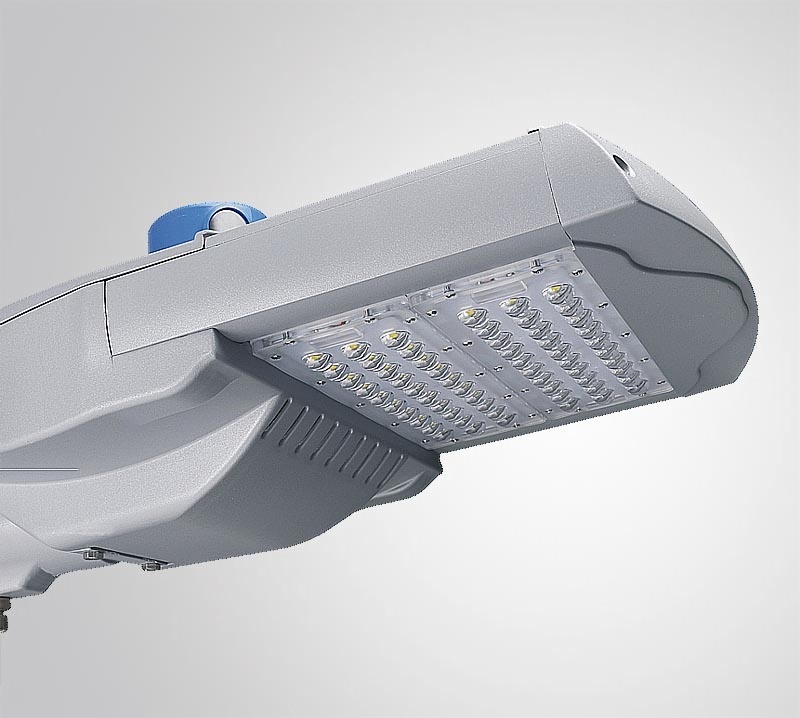

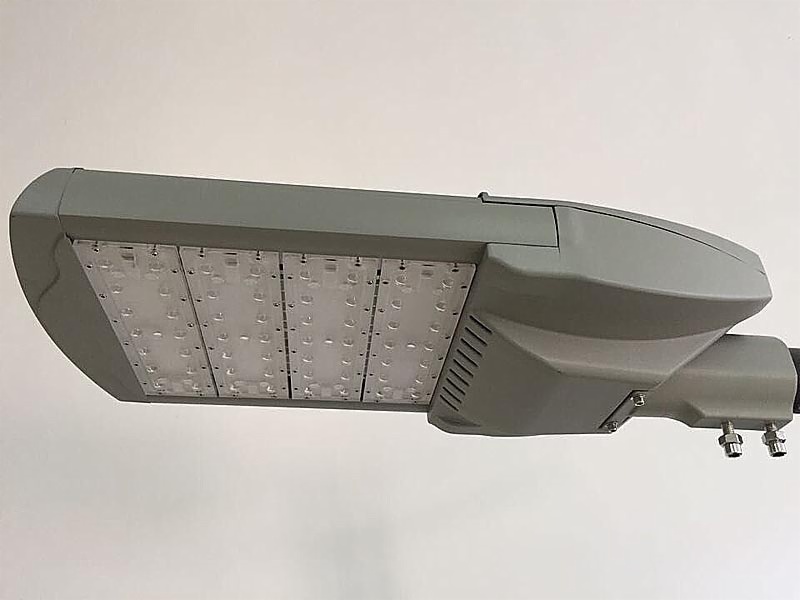

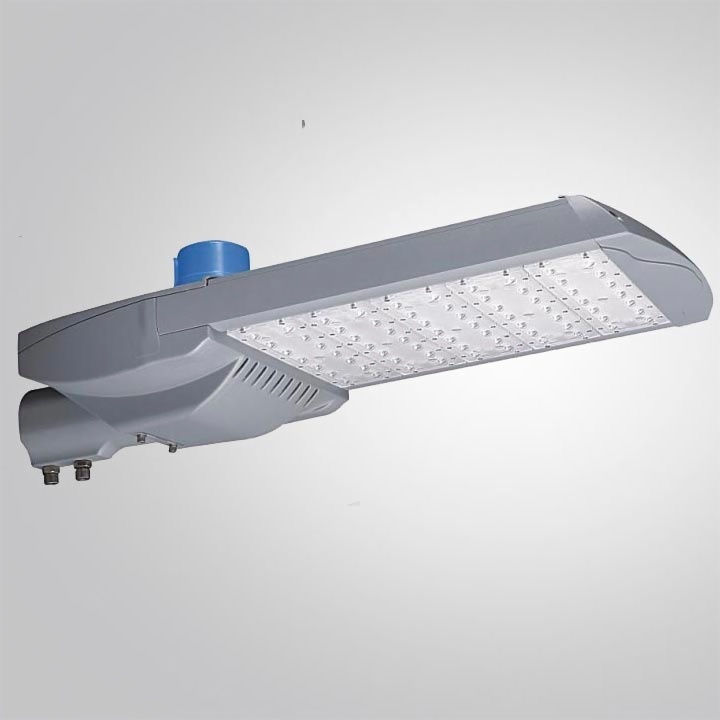

LED Street lighting Jioner HL721

Item Code:HL721 Features:
  • Description

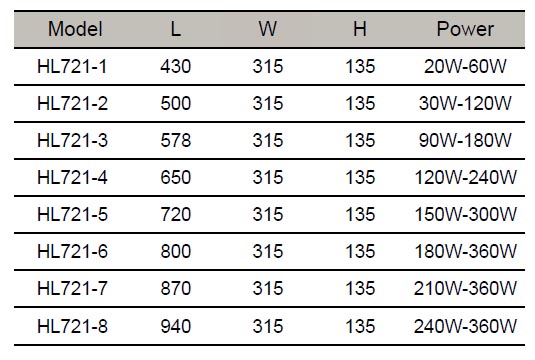

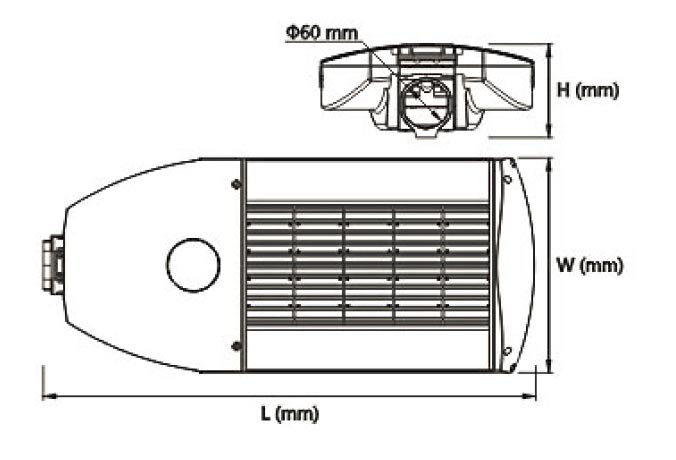

  • Dimensions

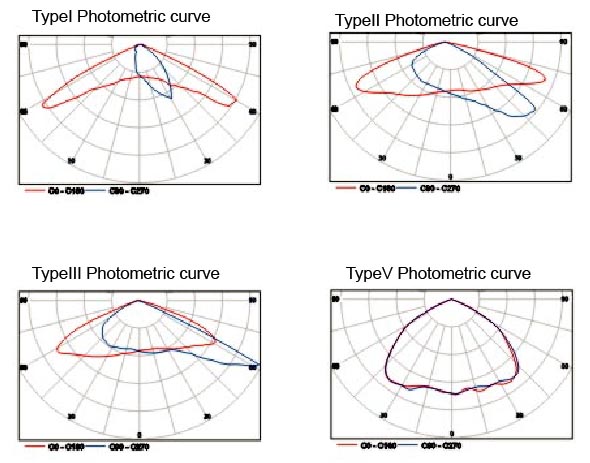

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Jioner HL721
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 5 years

Application: Roads and highways,Urban roads and street,
             Squares areas,Pedestrian areas,Parks
Installing Hight: 3-12m
Mounting : Side-entry or Post top,  Ø48- Ø60mm x120mm spigot
Lamps: LED modules,,LED-M20(30pcs),LED-M22(30pcs),LED-M23(14pcs)
Lamp wattage: 30W-300W
Input Voltage: 90-305V AC,50/60HZ,or 12V/24V DC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours
Material: Aluminium body,
Body: Die cast aluminium,polyster powder coating.
Heat sink: 6063 extrude aluminium
Lens: High efficiency acrylic refractor
Color: Standard painting colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),silver grey(SG),White(WH),
 other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information


Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HL721-1-20-BR 20W 18pcs/Bridge 2160lm/350mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-1-30-BR 30W 27pcs/Bridge 3240lm/350mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-1-30-CR 30W 14pcs/CREE 3150lm/700mA 3m-6m 5kg /4kg 43x31.5x13.5 45x34x18 900 /1800
HL721-2-40-BR 40W 36pcs/Bridge 4320lm/350mA 3m-6m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-2-50-BR 50W 48pcs/Bridge 5760lm/350mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-2-60-BR 60W 54pcs/Bridge 6480lm/350mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-2-60-CR 60W 28pcs/CREE 6300lm/700mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-2-70-BR 70W 60pcs/Bridge 7200lm/350mA 6m-9m 6kg /5kg 50x31.5x13.5 52x34x18 850 /1700
HL721-3-80-BR 80W 72pcs/Bridge 8640lm/350mA 6m-9m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-3-90-BR 90W 81pcs/Bridge 9720lm/350mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-3-90-CR 90W 42pcs/CREE 9450lm/700mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-3-100-BR 100W 90pcs/Bridge 10800lm/350mA 10m-12m 7kg /6kg 58x31.5x13.5 60x34x18 750 /1500
HL721-4-120-BR 120W 108pcs/Bridge 12960lm/350mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-4-120-CR 120W 56pcs/CREE 12600lm/700mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-4-140-BR 140W 120pcs/Bridge 14400lm/350mA 10m-12m 8kg /7kg 65x31.5x13.5 67x34x18 700 /1400
HL721-5-150-BR 150W 135pcs/Bridge 16200lm/350mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
HL721-5-150-CR 150W 70pcs/CREE 15750lm/700mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
HL721-5-160-BR 160W 150pcs/Bridge 16200lm/350mA 10m-12m 9kg /8kg 72x31.5x13.5 75x34x18 600 /1200
HL721-6-180-BR 180W 162pcs/Bridge 19440lm/350mA 10m-12m 10kg /9kg 80x31.5x13.5 82x34x18 560 /1120
HL721-6-180-CR 180W 84pcs/CREE 18900lm/700mA 10m-12m 10kg /9kg 80x31.5x13.5 82x34x18 560 /1120
HL721-6-200-BR 200W 180pcs/Bridge 21600lm/350mA 10m-12m 10kg /9kg 80x31.5x13.5 82x34x18 560 /1120
HL721-7-210-CR 210W 98pcs/CREE 22050lm/700mA 10m-12m 11kg /10kg 87x31.5x13.5 89x34x18 500 /1000
HL721-7-240-BR 240W 210pcs/Bridge 25200lm/350mA 10m-12m 11kg /10kg 87x31.5x13.5 89x34x18 500 /1000
HL721-8-240-CR 240W 112pcs/CREE 25200lm/700mA 10m-12m 12kg /11kg 94x31.5x13.5 96x34x18 470 /940
HL721-8-280-BR 280W 240pcs/Bridge 28800lm/350mA 10m-12m 12kg /11kg 94x31.5x13.5 96x34x18 470 /940



►HL721 PDF Brochure

Please contact HSO to get more information and high resolution catalog &pictures
