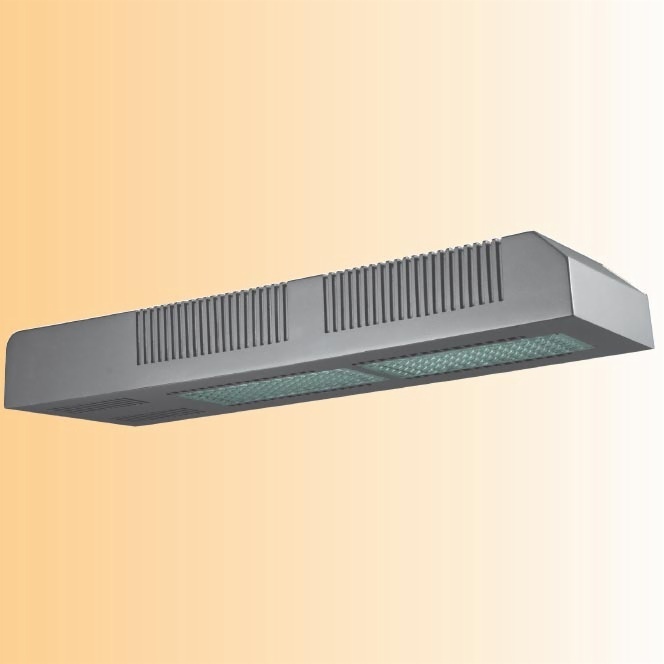

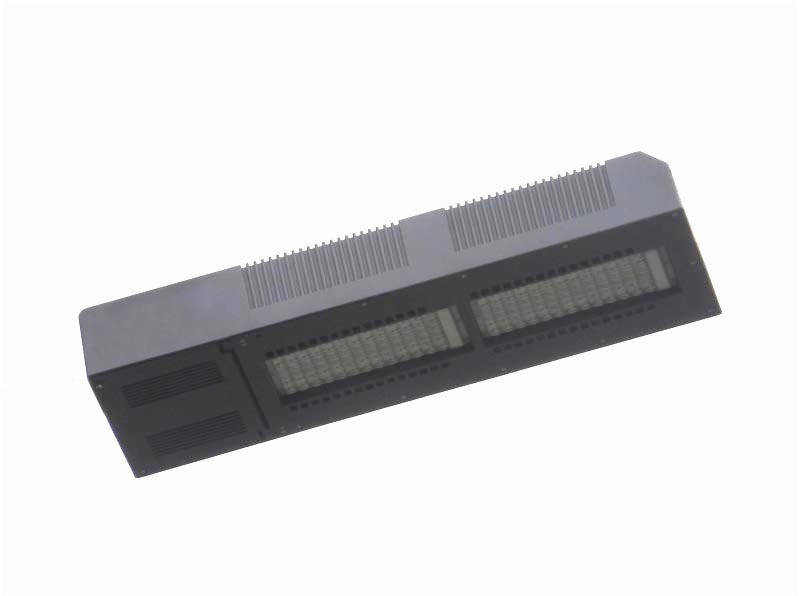

LED Street lighting Box HL60A

Item Code:HL60A Features:
  • Description

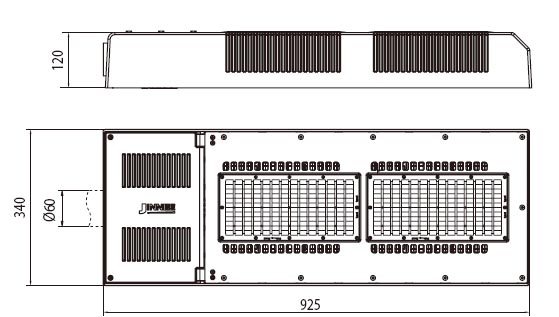

  • Dimensions

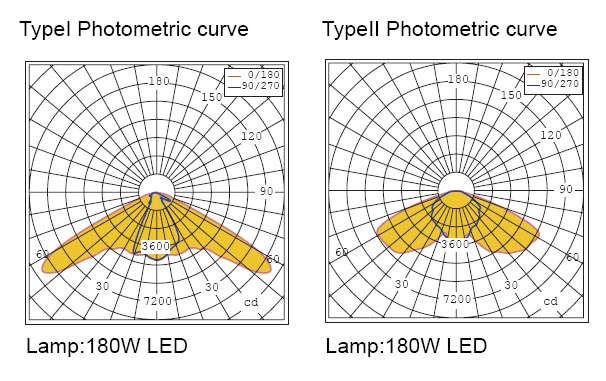

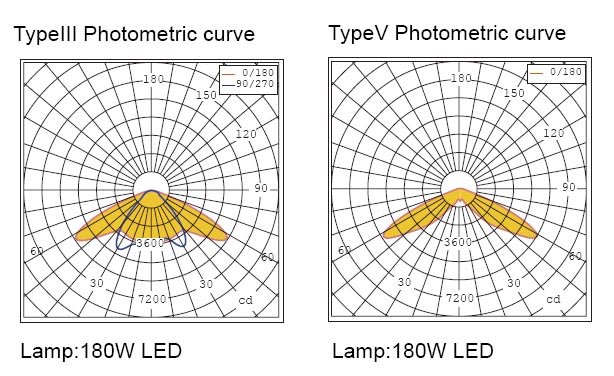

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Box HL60A
Type:LED Street lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 5 years

Application: Roads and highways,Urban roads and street,
             Squares areas,Pedestrian areas,Parks
Installing Hight: 3-12m
Mounting : Side-entry, Ø60mm x120mm spigot
Lamps: LED modules,LEDM-01
Lamp wattage: 180W-320W
Input Voltage: 90-305V AC,50/60HZ,or 12V/24V DC
Power Factor: >0.9
Luminous Flux: >100lm/W
LED Chips Brand: CREE,OSRAM,Philips,Bridgelux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K,4000K,5000K,6500K
Color Rending Index(CRI): Ra>70
Beam Angel: 120x60°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours
Material: FRP & aluminium, fiber glass cover,aluminium sink,
Cover: Fiberglass-reinforced plastics,excellent
  mechanical strength and bear the causticity
Driver housing: Heavy-duty die cast aluminium
Heat Sink: 6063 Exturde aluminium,
lens: High efficiency acrylic refractor
Color: Standard painting colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),Silver grey(SG),White(WH),
 other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65



Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HL60A-180-CR 180W 84pcs/CREE 18900lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
HL60A-200-CR 200W 96pcs/CREE 21600lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
HL60A-240-CR 240W 110pcs/CREE 24750lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
HL60A-260-CR 260W 120pcs/CREE 27000lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
HL60A-280-CR 280W 132pcs/CREE 29700lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
HL60A-300-CR 300W 144pcs/CREE 32400lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
HL60A-320-CR 320W 156pcs/CREE 35100lm/700mA 10m-12m 17kg /16kg 92.5x34x12 98x40x18 400 /800
