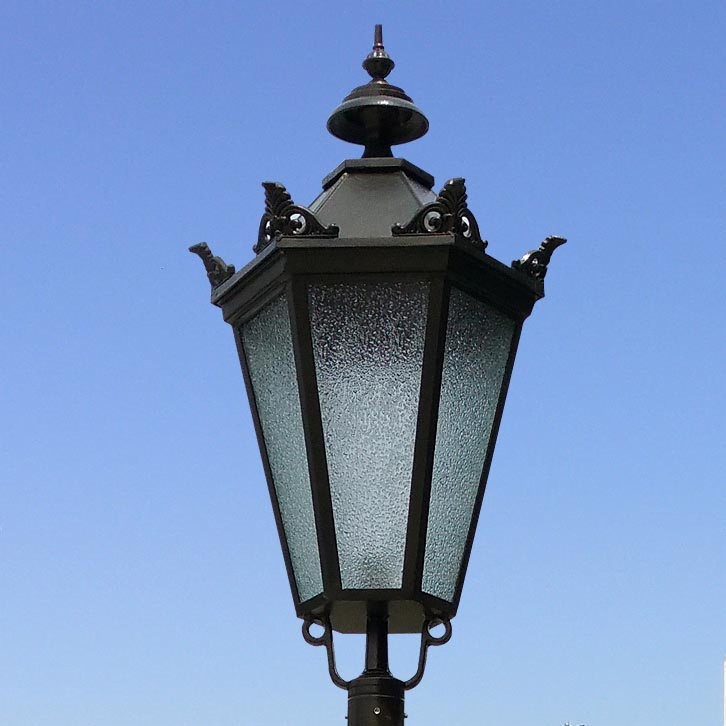

Traditional Post top lighting Hexagon HA401

  • Description

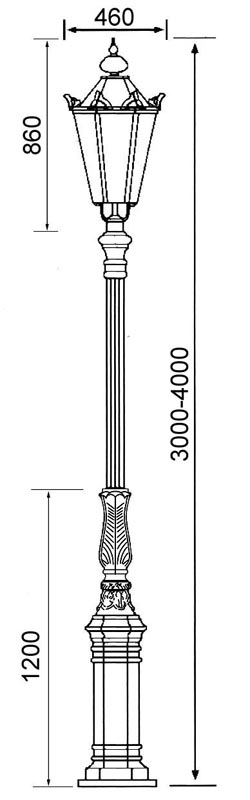

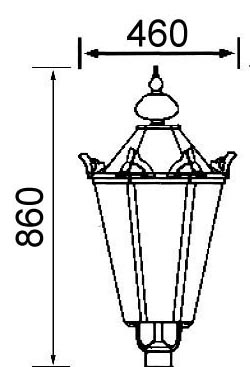

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Feature
Classical type of traditional area lighting
Very High quality for upmarket
Heavy-duty die-cast aluminiun housing
Clear or textture glass or acrylic refractor
Available with medium- or mogul-base socket
Base casting slip fits over a standard 60mm O.D. tenon

Number: Hexagon HA401
Type: Garden Post top lighting
Style: Tranditional
Quality: High Quality
Price: Upmarket
Warranty: 3 years

Application: Urban roads and street , Squares areas,
Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-5m
Mounting : Post-top: suitable for Ø60mmx55mm tenon
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
20W/30w/50W Led bulb, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26
Material: Aluminium body
Final: Cast aluminium
Housing: Heavy-duty die cast aluminium, Powder coating
Globe : Clear or textture glass, clear arcylic is optional
Color: Standard colors is black (BK) Yellow metal or Red metal,other colors are available
Standards:
Isolation degree Class I, IP Rating(optical) IP54

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
Head HA401 MAX 150W E27/E40 3m-5m 9 / 8kg 46x40x86 46x41x58 240/480
HA401-PA01-2.1 MAX 150W E27/E40 3m 22 /21kg 46x40x86  30x30x210 46x41x58   30x30x210 100/ 200
HA401-PA01-2.6 MAX 150W E27/E40 3.5m 25 /24kg 46x40x86  30x30x260 46x41x58   30x30x260 90/ 180
HA401-PA01-3.1 MAX 150W E27/E40 4m 30 /29kg 46x40x86  30x30x310 46x41x58   30x30x310 50/ 150
HA401-3HR2-PA01-2.3 MAX 3*150W E27/E40 3.5m 44 /41kg 46x40x86 *3  30x30x230 46x41x58 *3   30x30x230 50/ 100
HA401-3HR2-PA01-2.8 MAX 3*150W E27/E40 4m 46 /43kg 46x40x86 *3 30x30x280 46x41x58 *3   30x30x280 45/ 90
HA401-3HR2-PA01-3.2 MAX 3*150W E27/E40 4.5m 49 /46kg 46x40x86 *3 30x30x320 46x41x58 *3   30x30x320 40/ 80



►HA401-PA01 PDF Brochure

►HA401-3HR2-PA01 PDF Brochure
Please contact us to get high resolution catalog and pictures
