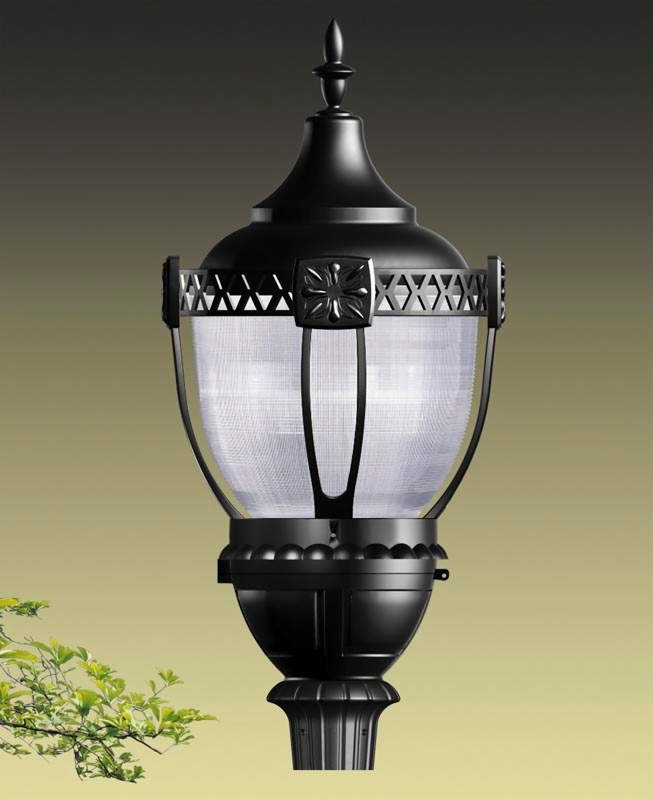

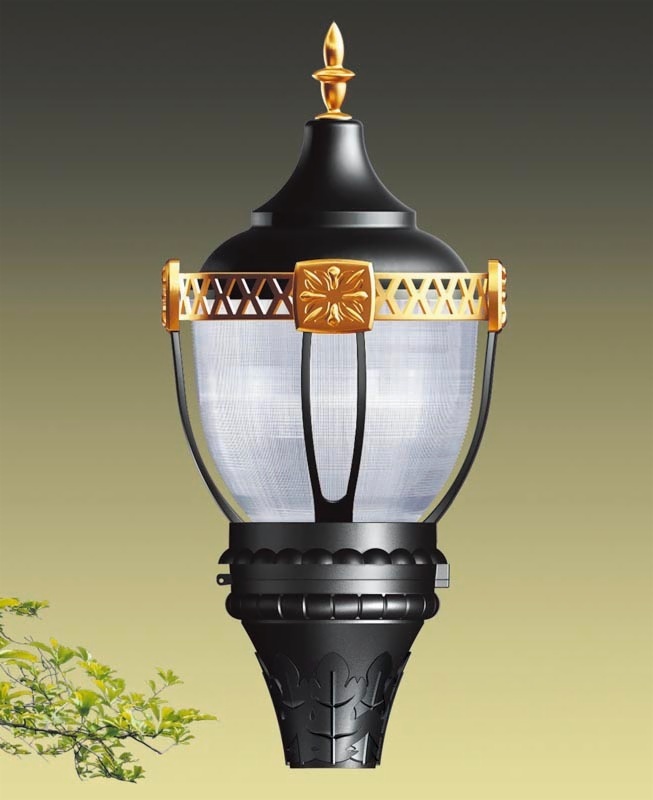

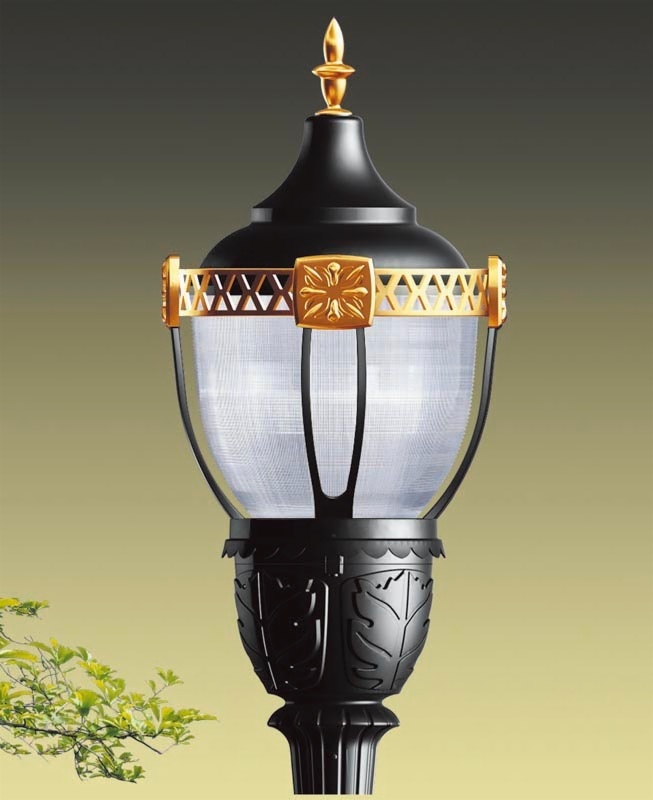

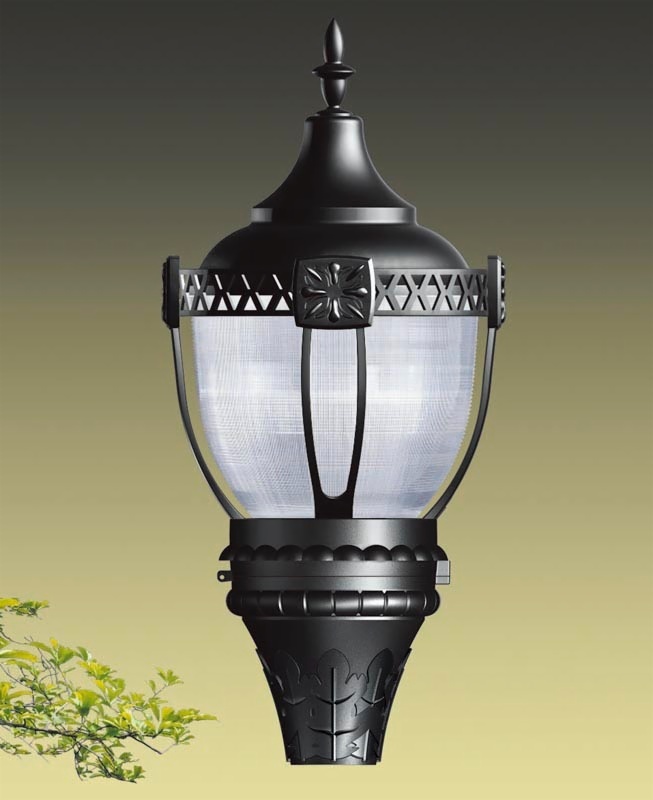

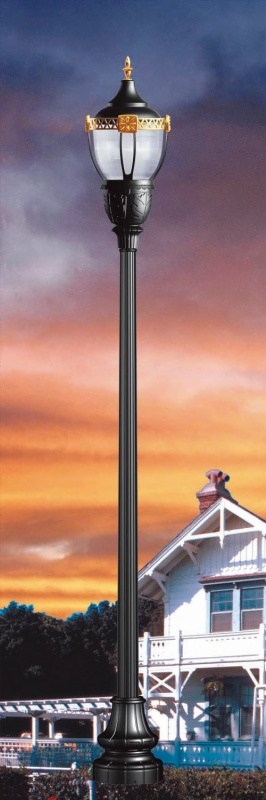

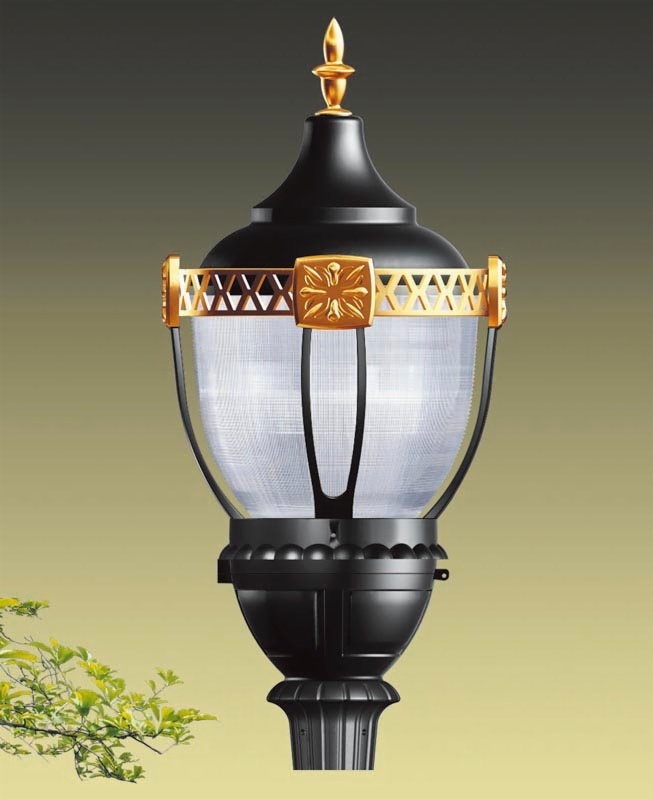

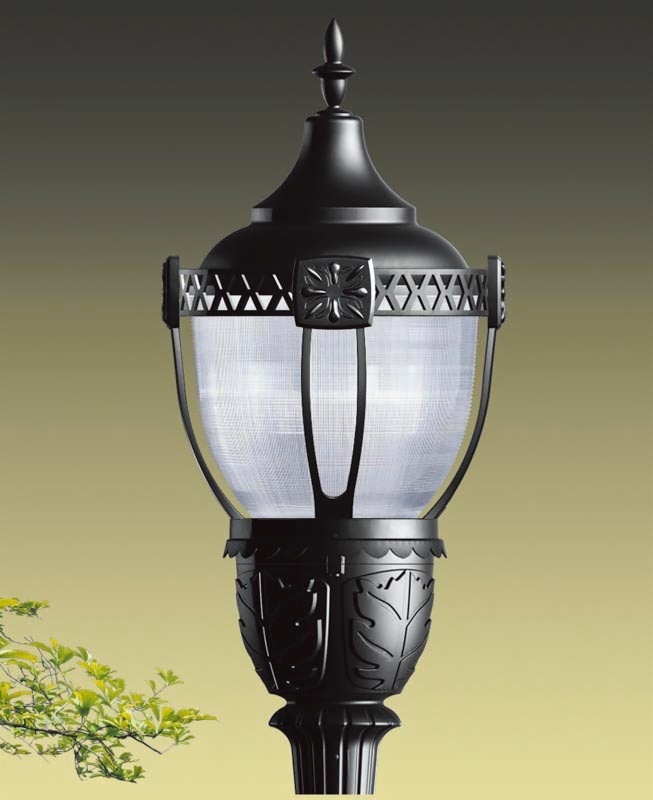

Traditional Post top lighting ACORN HA121 HA121A,HA121B,HA121C

  • Description

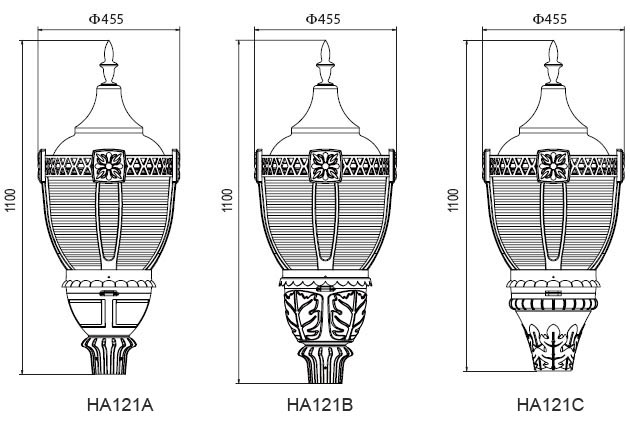

  • Dimensions

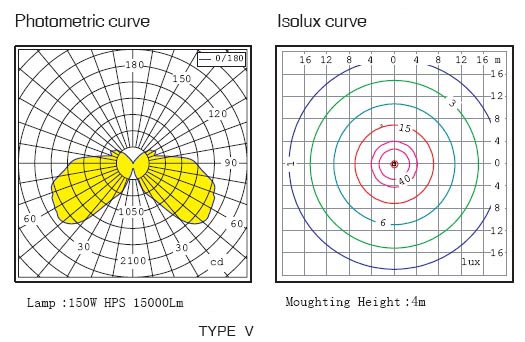

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Crown HA121A,HA121B,HA121C
Type: Garden Post top lighting
Style: Traditional
Quality: High Quality
Price: Upmarket
Warranty: 3 years

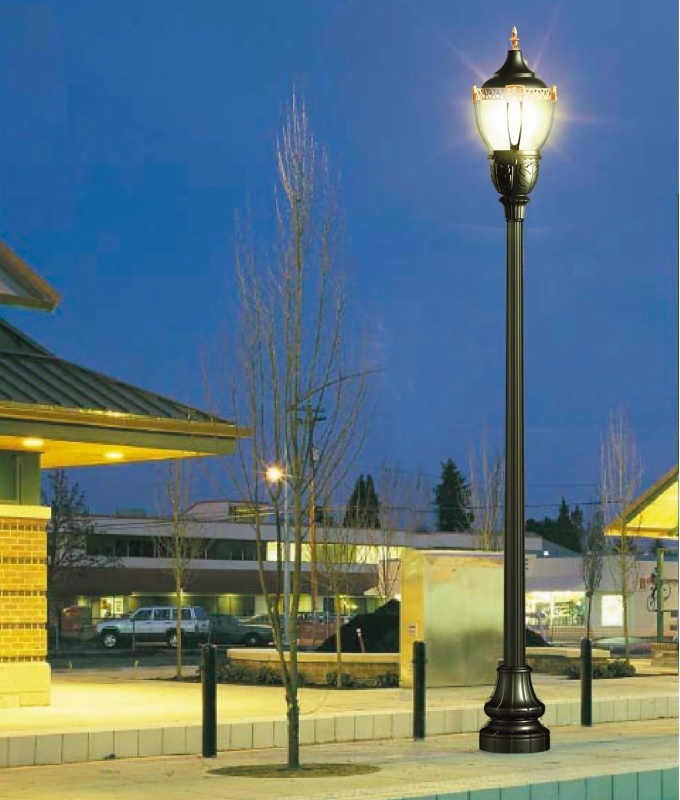

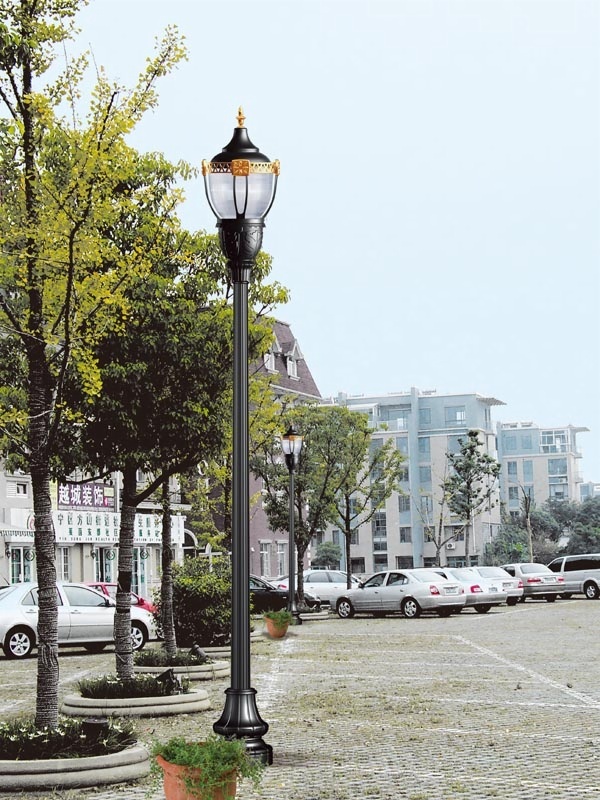

Application: Urban roads and street , Squares areas, Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-5m
Mounting : Post-top: suitable for Ø76mmx90mm tenon
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26

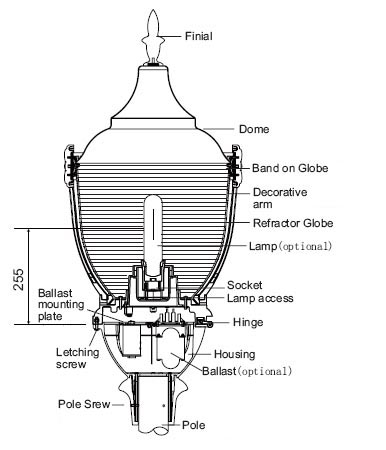

Material: FRP, fiber glass body
Final: Cast aluminium
Dome: Spun aluminium
Decorative arm , Band & Housing: Fiberglass-reinforced plastics,excellent mechanical strength and  bear the causticity
Globe : High efficiency acrylic refractor
ColorStandard colors is black (BK) ,other colors dark bronze (DB)(RAL7013), dark grey (GY)(RAL7016), light grey(LG)(RAL7042), dark green (DN)(RAL6005) are available
Standards:
Electrical Class I, IP Rating(optical) IP65

Ordering  information

Sample Number: HA121A-15S1R16-RTA2-PT02-3.0-BK

Luminaire

(Lamp

Wattage)

(Lamp

Type)

(Lamp&

Ballast)

(Ballast Type)

(Voltage) (Freq.) (Mounting) (Pole) Finish
HA121A 70=70W M=MH 1,only  I=Impedance 1=120V 5=50Hz     BK=Black
HA121B 10-100W   ballast M=Leakage 0=208V 6=60Hz RTA   DB=Dark
HA121C 15-150W S=HPS include       magnetic 2=220V   RTA2         Bronze
  17=175W   2. all P=HX-HPF 3=230V   ...   GY=Grey
  25=250W   incude W=CWA 4=240V       DN=Dark
          7=277V             Green
          8=480V
          9=347V

















Order No. Lamp Wattage Lamp Socket Install  Height m Gross / Net.W(kg) Dimension (cm) Packing size(cm) QTY 20/40GP
HA121A MAX 150W,HID E27/E40 3-5m 16/12 45X45x105 46x46x100 130/260
HA121B MAX 150W,HID E27/E40 3-5m 17/13 45X45x105 46x46x100 130/260
HA121C MAX 150W,HID E27/E40 3-5m 17/13 45X45x105 46x46x100 130/260

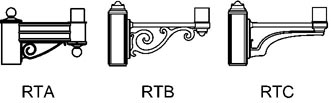

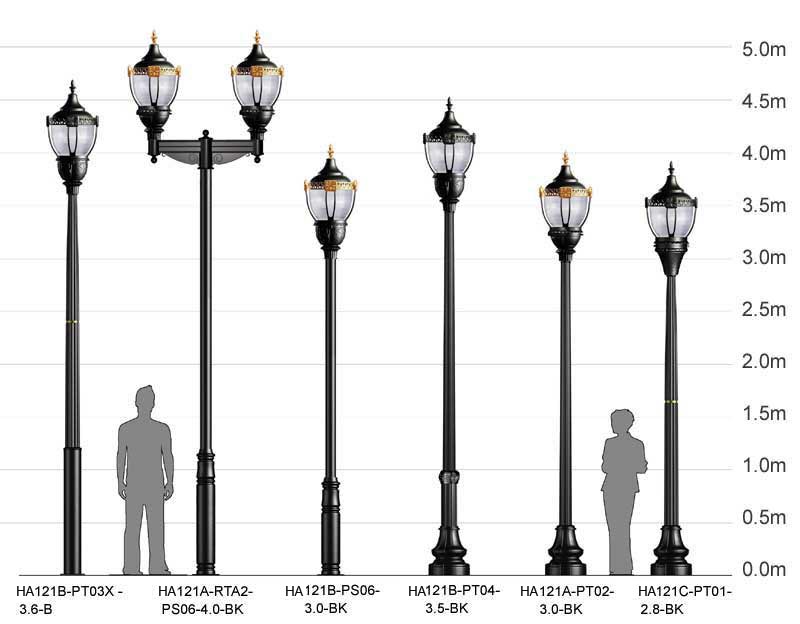

Bracket type and config



Poles Options
