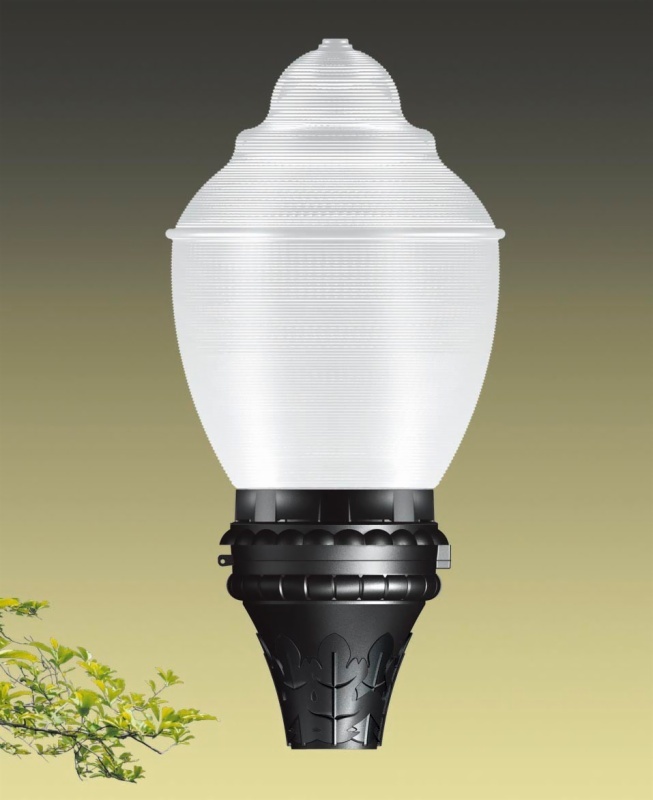

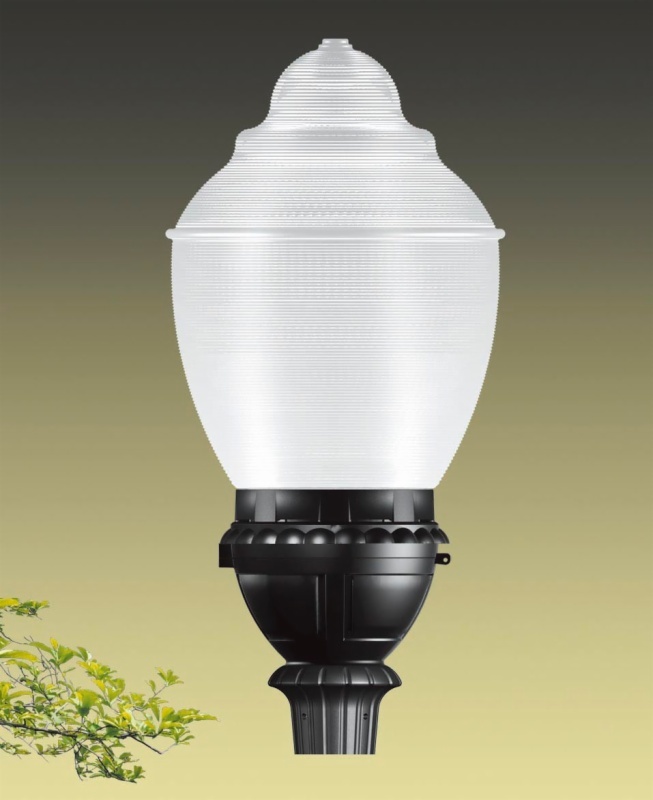

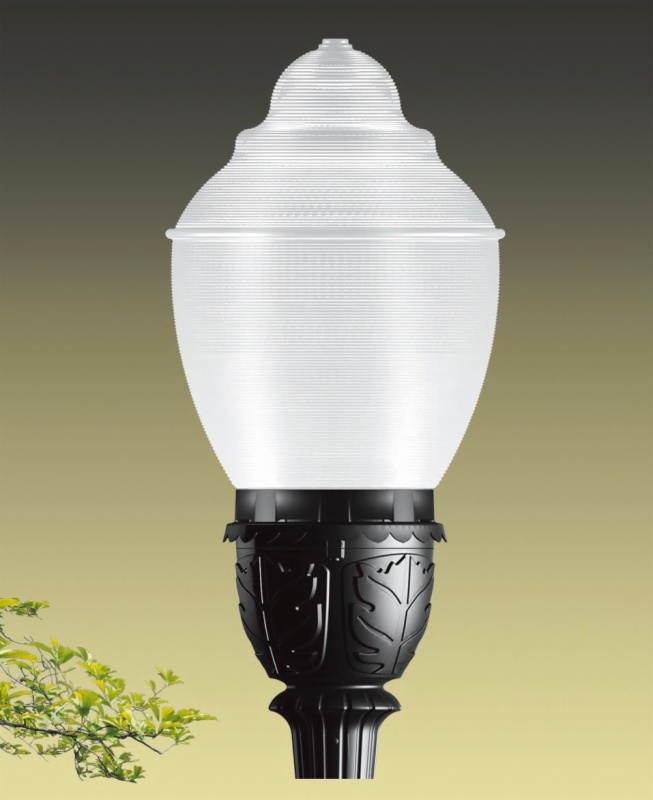

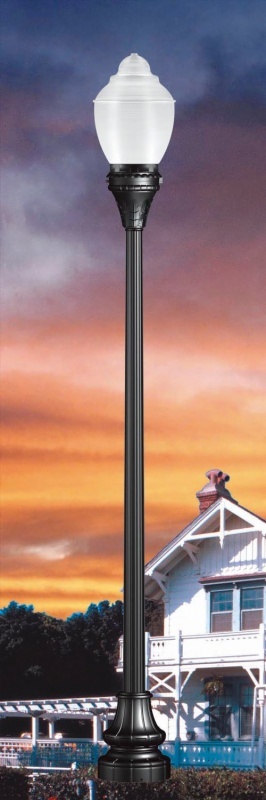

Traditional Post top lighting ACORN HA126 HA126A,HA126B,HA126C

Item Code:HA126A,HA126B,HA126C Features:
  • Description

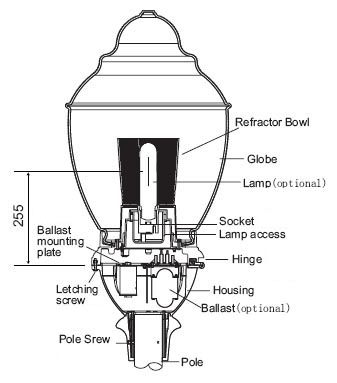

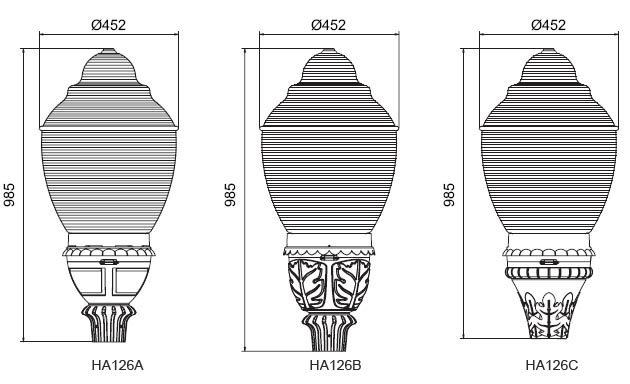

  • Dimensions

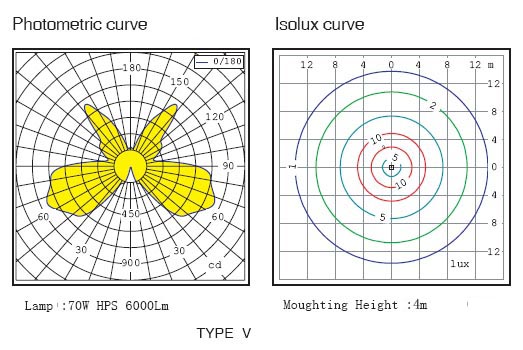

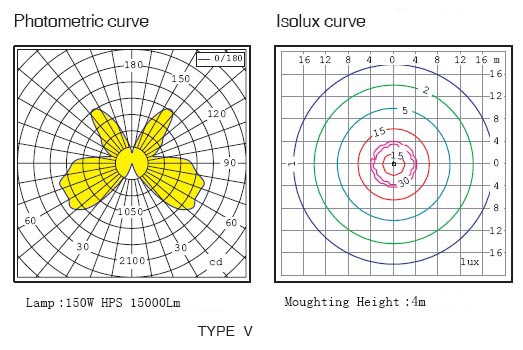

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Acorn HA126A,HA126B,HA126C
Type: Garden Post top lighting
Style: Traditional
Quality: High Quality
Price: Upmarket
Warranty: 3 years

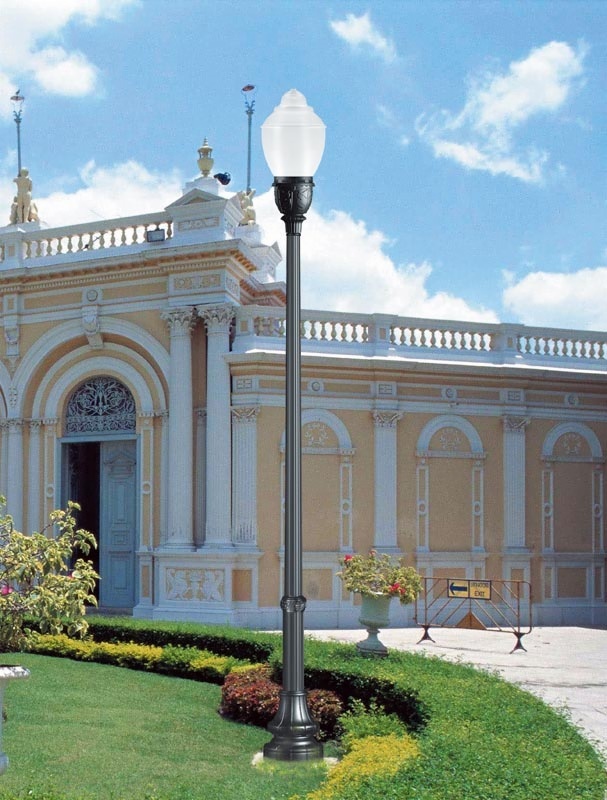

Application: Urban roads and street , Squares areas, Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-5m
Mounting : Post-top: suitable for Ø76mmx90mm tenon
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26
Material: FRP, fiber glass body

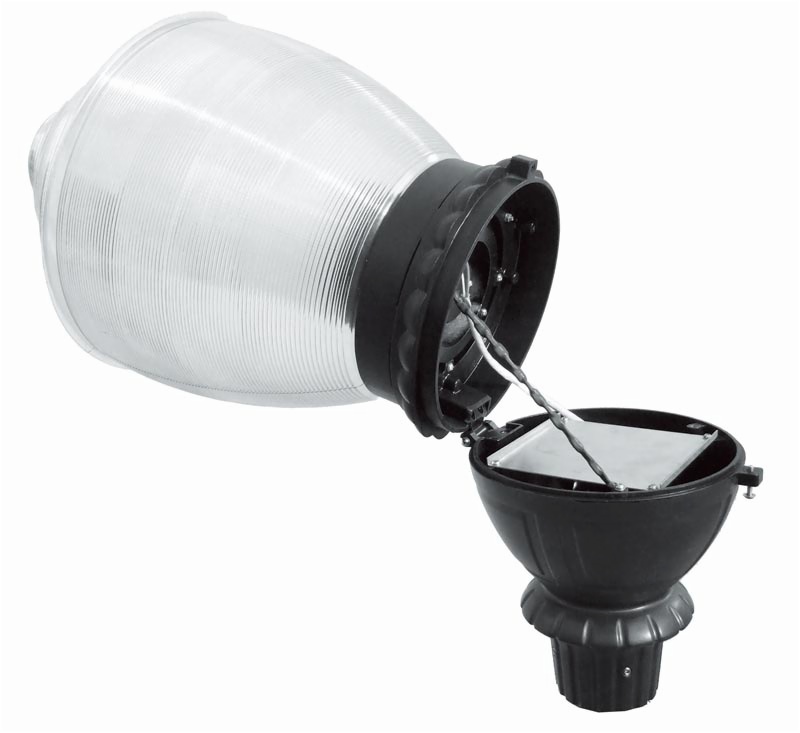

Housing: Fiberglass-reinforced plastics,excellent mechanical strength and  bear the causticity
Globe : High efficiency ploycarbonate ,stippled
Refractor Bowl::High efficiency acrylic refractor or glass(only for 150 HID lamp)
ColorStandard colors is black (BK) ,other colors dark bronze (DB)(RAL7013), dark grey (GY)(RAL7016), light grey(LG)(RAL7042), dark green (DN)(RAL6005) are available
Standards:
Electrical Class I, IP Rating(optical) IP65

Ordering  information

Sample Number: HA126A-15S1R16-RTA2-PT02-3.0-BK

Luminaire

(Lamp

Wattage)

(Lamp

Type)

(Lamp&

Ballast)

(Ballast Type)

(Voltage) (Freq.) (Mounting) (Pole) Finish
HA126A 70=70W M=MH 1,only  I=Impedance 1=120V 5=50Hz     BK=Black
HA126B 10-100W   ballast M=Leakage 0=208V 6=60Hz RTA   DB=Dark
HA126C 15-150W S=HPS include       magnetic 2=220V   RTA2         Bronze
  17=175W   2. all P=HX-HPF 3=230V   ...   GY=Grey
  25=250W   incude W=CWA 4=240V       DN=Dark
          7=277V             Green
          8=480V
          9=347V

















Order No. Lamp Wattage Lamp Socket Install  Height m Gross / Net.W(kg) Dimension (cm) Packing size(cm) QTY 20/40GP
HA126A MAX 150W,HID E27/E40 3-5m 11/9 45X45x99 47x47x102 130/260
HA126B MAX 150W,HID E27/E40 3-5m 12/10 45X45x99 47x47x102 130/260
HA126C MAX 150W,HID E27/E40 3-5m 12/10 45X45x99 47x47x102 130/260

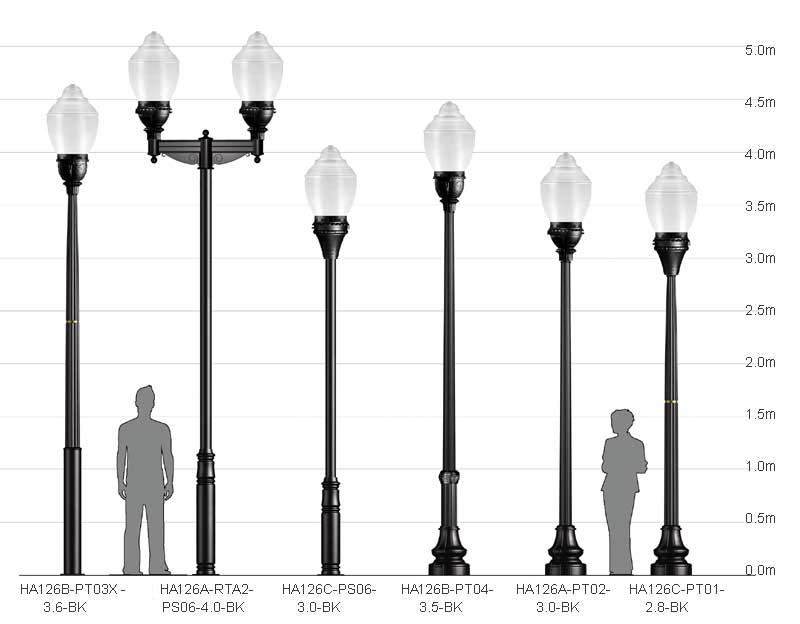

Bracket type and config



Poles Options
