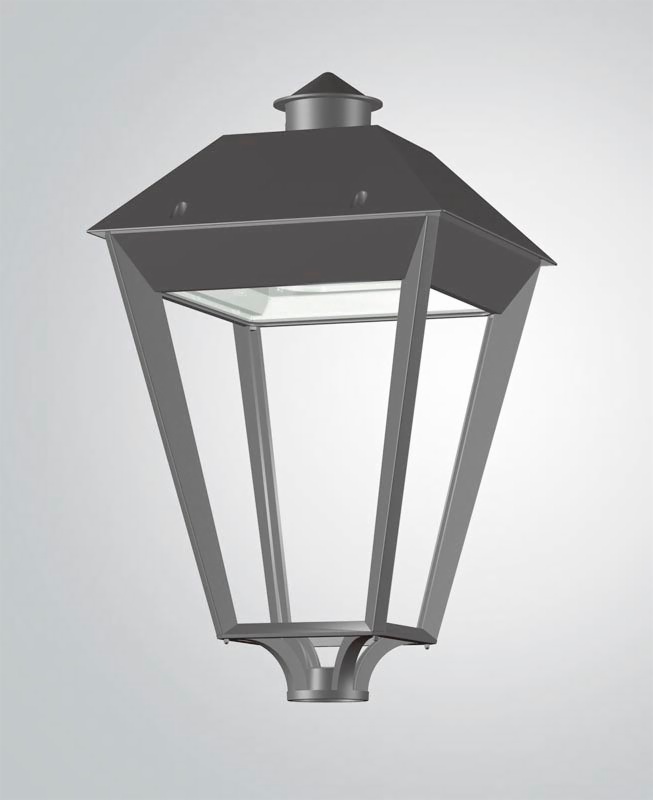

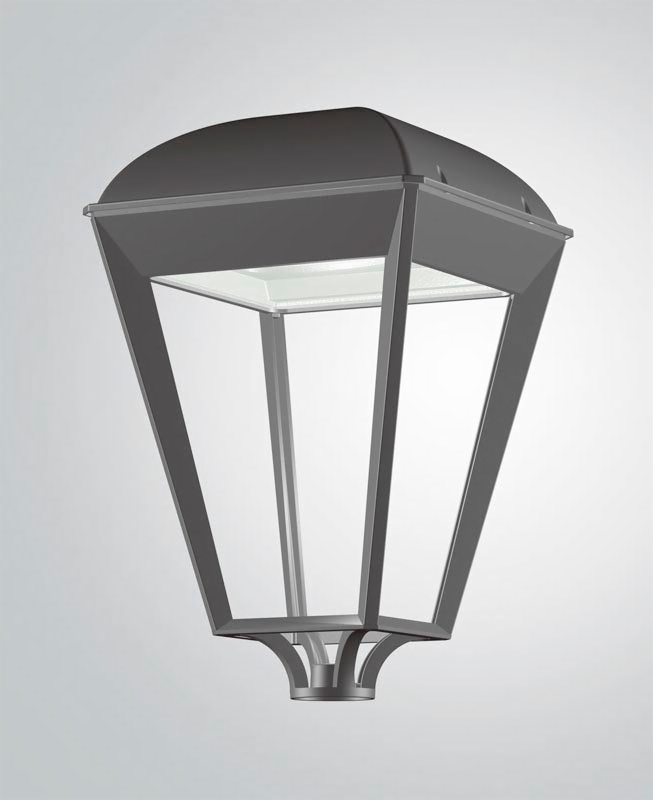

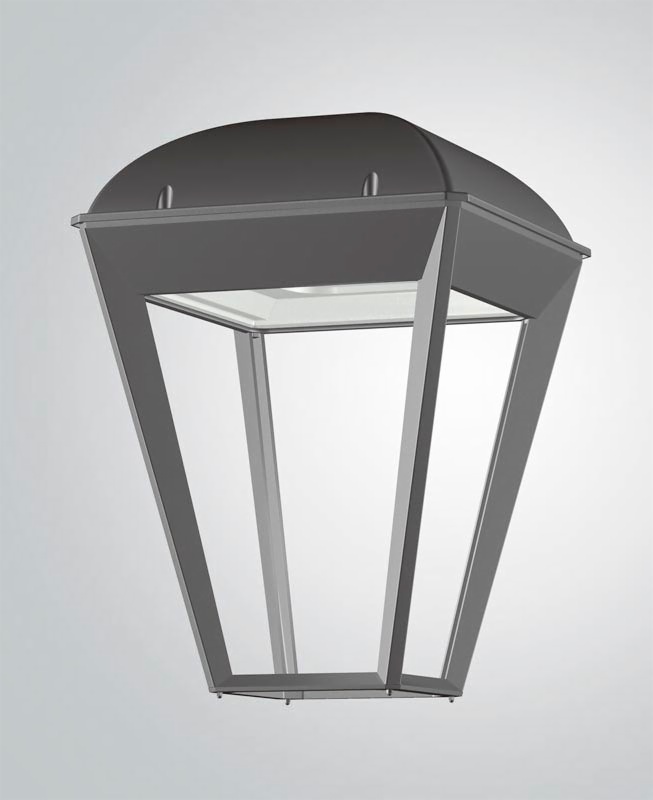

Traditional Post top lighting VIta HA157A / HA157B / HA157C

Item Code:HA157A / HA157B / HA157C Features:
  • Description

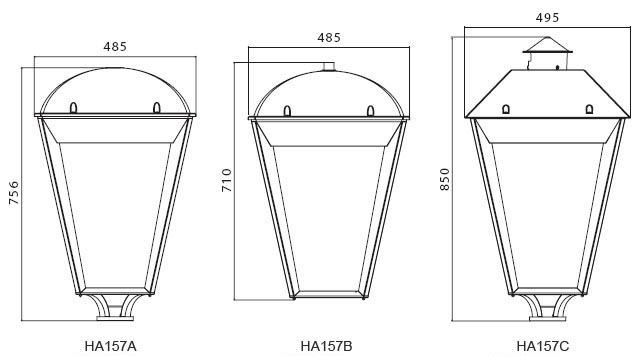

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Vita HA157A / HA157B / HA157C
Type: Garden Post top lighting
Style: Tranditional
Quality: High Quality
Price: Upmarket
Warranty: 3 years

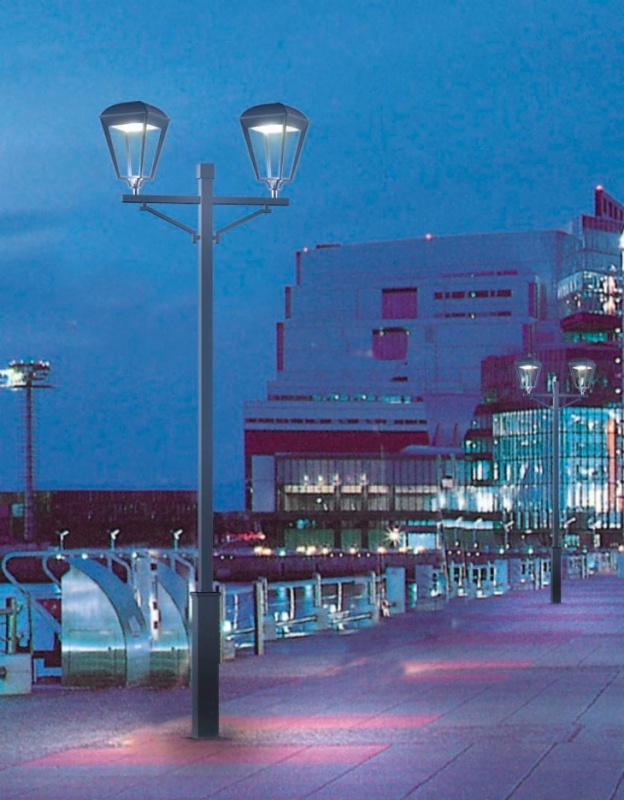

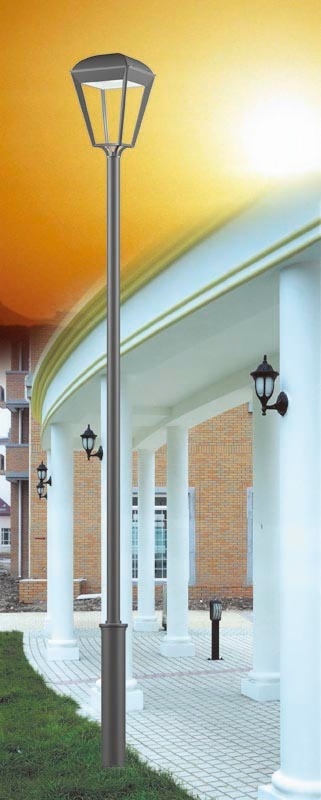

Application: Urban roads and street , Squares areas, Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-5m
Mounting : Post-top: suitable for Ø76mmx90mm tenon
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
Material: FRP, fiber glass body

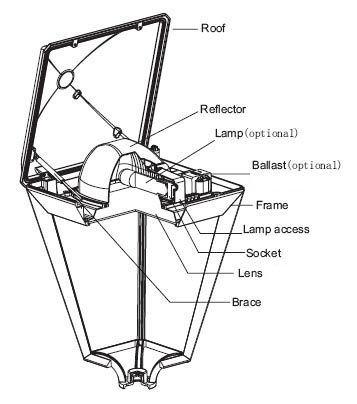

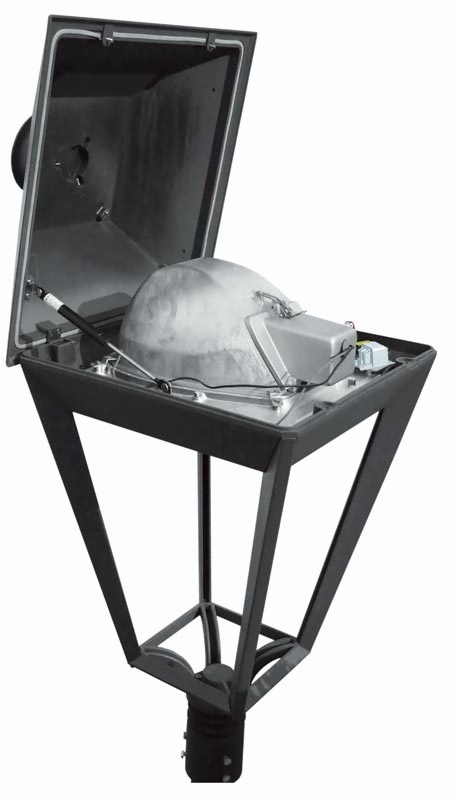

Roof,Frame,Base & Reflector: Fiberglass-reinforced plastics,excellent
mechanical strength and bear the causticity ,vacuum metalizing for the
Lens : Toughened flat glass
Color: Standard colors is black (BK) ,other colors dark bronze (DB)(RAL7013), dark grey (GY)(RAL7016), light grey(LG)(RAL7042), dark green (DN)(RAL6005) are available
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information

Order No. Lamp Wattage Lamp Socket Install  Height(m) Gross / Net Weight(kg) Dimension L*W*H(cm) Packing size(cm) QTY 20'/40'GP
HA157A MAX 150W E27/E40 3m-5m 12 / 10 48.5x48.5X75 51x51x78 143/299
HA157B MAX 150W E27/E40 3m-5m 12 / 10 48.5x48.5X75 51x51x78 143/299
HA157C MAX 150W E27/E40 3m-5m 13 / 11 50x50X86 52x52x89 112/224

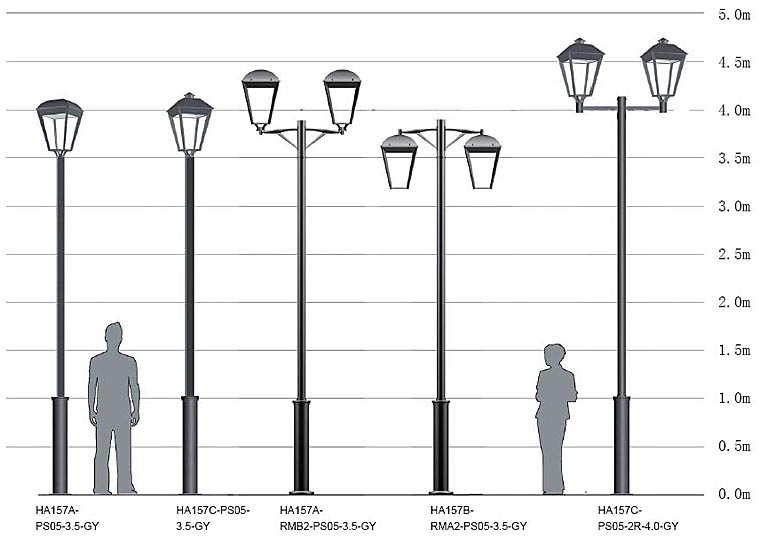

Poles Options
