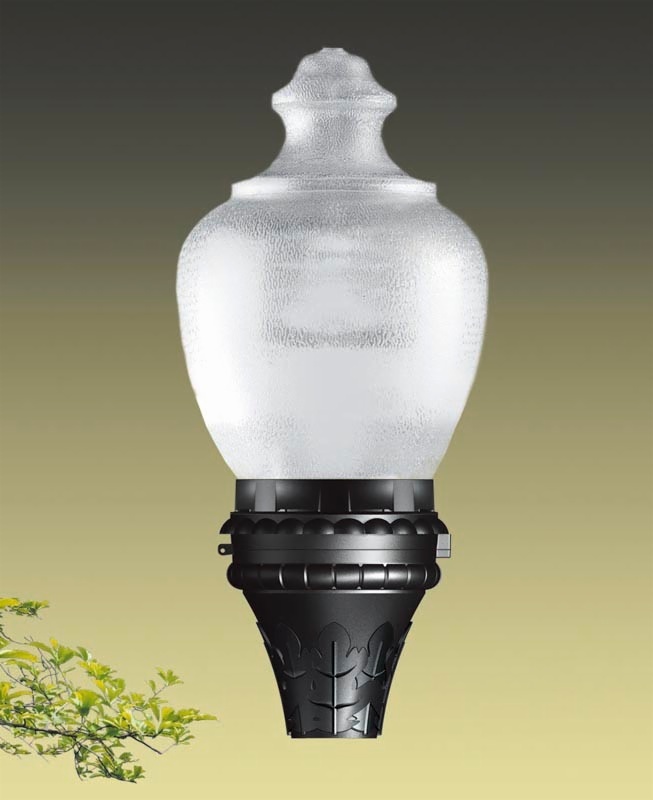

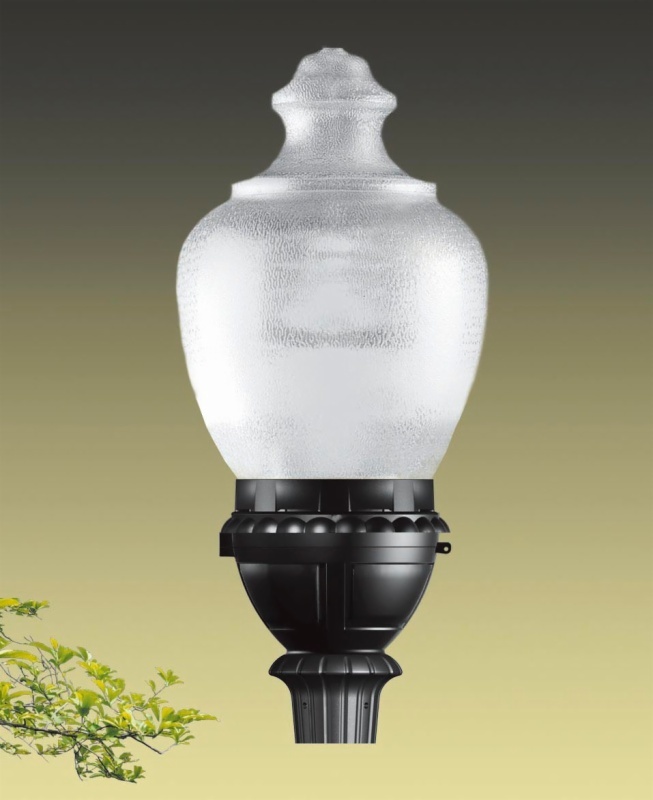

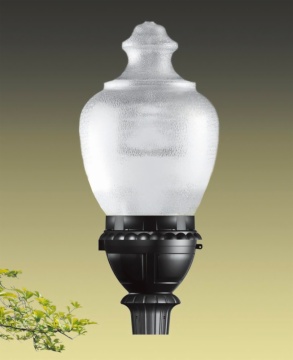

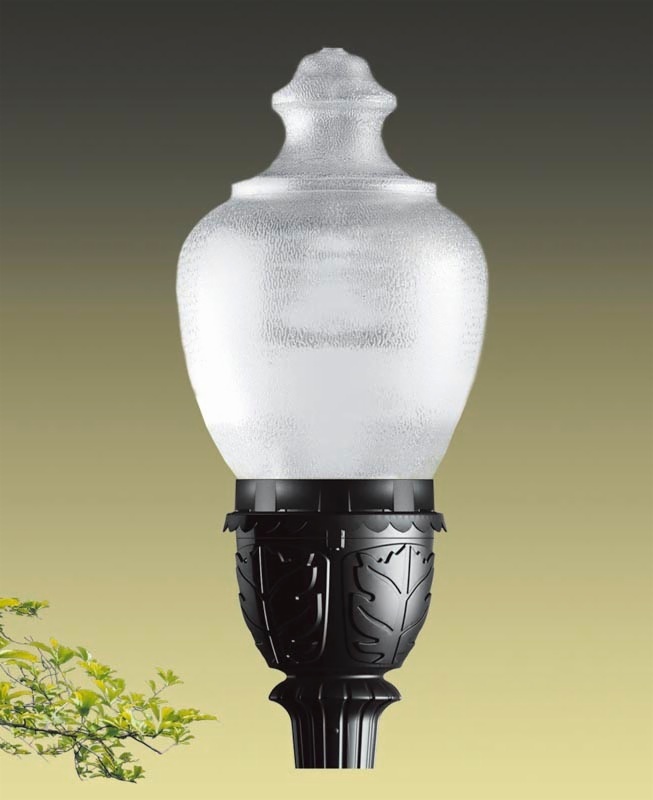

Number: Acorn HA125A,HA125B,HA125C
Type: Garden Post top lighting
Style: Traditional
Quality: High Quality
Price: Upmarket
Warranty: 3 years

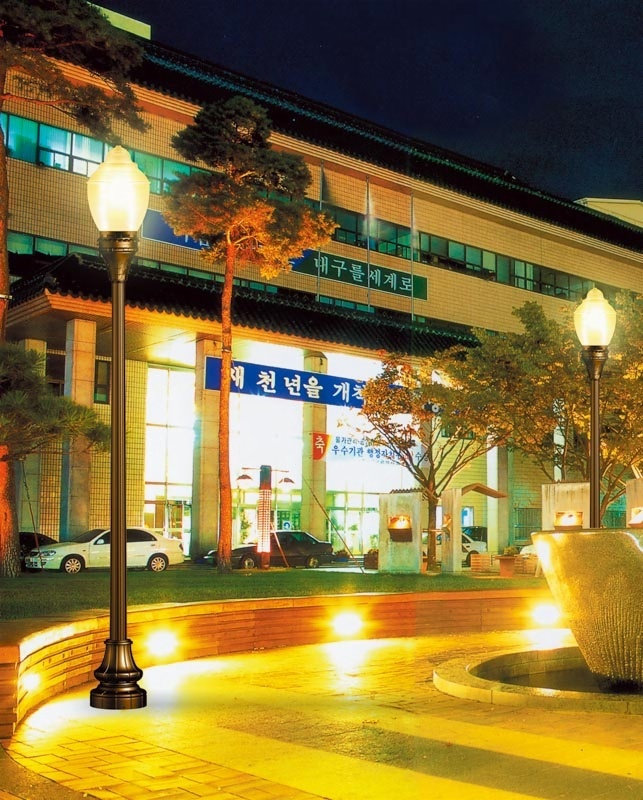

Application: Urban roads and street , Squares areas, Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-5m
Mounting : Post-top: suitable for Ø76mmx90mm tenon
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26

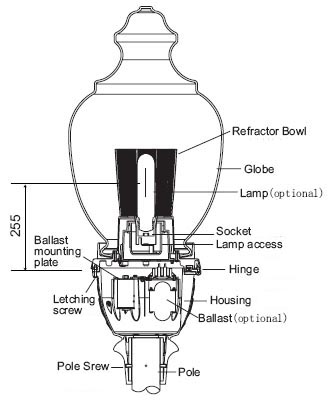

Material: FRP, fiber glass body
Housing: Fiberglass-reinforced plastics,excellent mechanical strength and bear the causticity
Globe : High efficiency ploycarbonate ,stippled
Refractor Bowl::High efficiency acrylic refractor or glass(only for 150 HID lamp)
Color: Standard colors is black (BK) ,other colors dark bronze (DB)(RAL7013), dark grey (GY)(RAL7016), light grey(LG)(RAL7042), dark green (DN)(RAL6005) are available
Standards:
Electrical Class I, IP Rating(optical) IP65
Ordering information
Sample Number: HA125A-15S1R16-RTA2-PT02-3.0-BK
|
Luminaire |
(Lamp
Wattage)
|
(Lamp
Type)
|
(Lamp&
Ballast)
|
(Ballast Type)
|
(Voltage) |
(Freq.) |
(Mounting) |
(Pole) |
Finish |
|
HA125A |
70=70W |
M=MH |
1,only |
I=Impedance |
1=120V |
5=50Hz |
|
|
BK=Black |
|
HA125B |
10-100W |
|
ballast |
M=Leakage |
0=208V |
6=60Hz |
RTA |
|
DB=Dark |
|
HA125C |
15-150W |
S=HPS |
include |
magnetic |
2=220V |
|
RTA2 |
|
Bronze |
|
|
17=175W |
|
2. all |
P=HX-HPF |
3=230V |
|
... |
|
GY=Grey |
|
|
25=250W |
|
incude |
W=CWA |
4=240V |
|
|
|
DN=Dark |
|
|
|
|
|
|
7=277V |
|
|
|
Green |
|
|
|
|
|
|
8=480V |
|
|
|
|
|
|
|
|
|
|
9=347V |
|
|
|
|
|
Order No. |
Lamp Wattage |
Lamp Socket |
Install Height m |
Gross / Net.W(kg) |

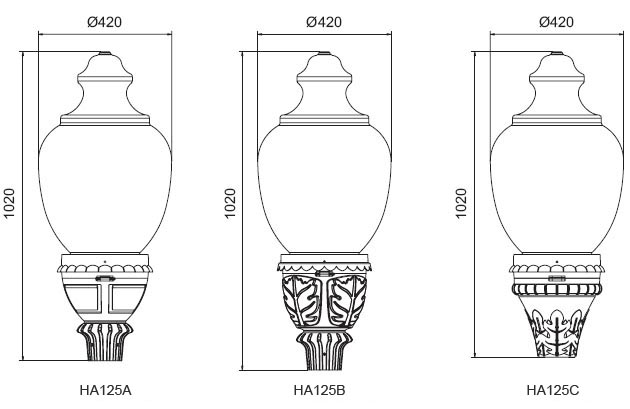

Dimension (cm) |
Packing size(cm) |
QTY 20/40GP |
|
HA125A |
MAX 150W,HID |
E27/E40 |
3-5m |
11/9 |
42X42x102 |
44x44x105 |
130/260 |
|
HA125B |
MAX 150W,HID |
E27/E40 |
3-5m |
12/10 |
42X42x102 |
44x44x105 |
130/260 |
|
HA125C |
MAX 150W,HID |
E27/E40 |
3-5m |
12/10 |
42X42x102 |
44x44x105 |
130/260 |

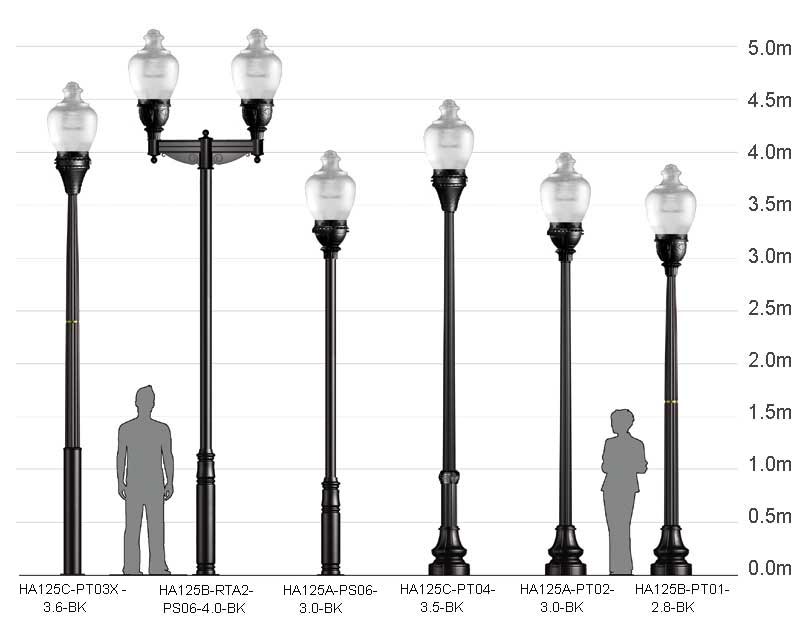

Bracket type and config

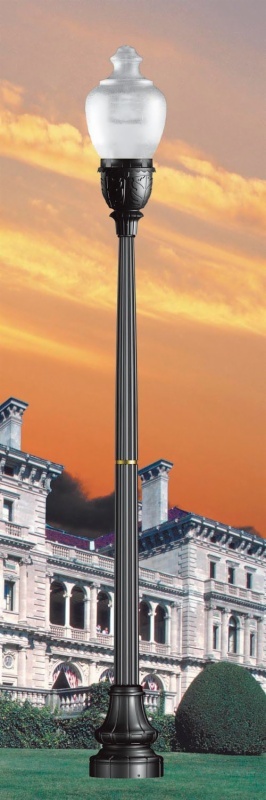

Poles Options
