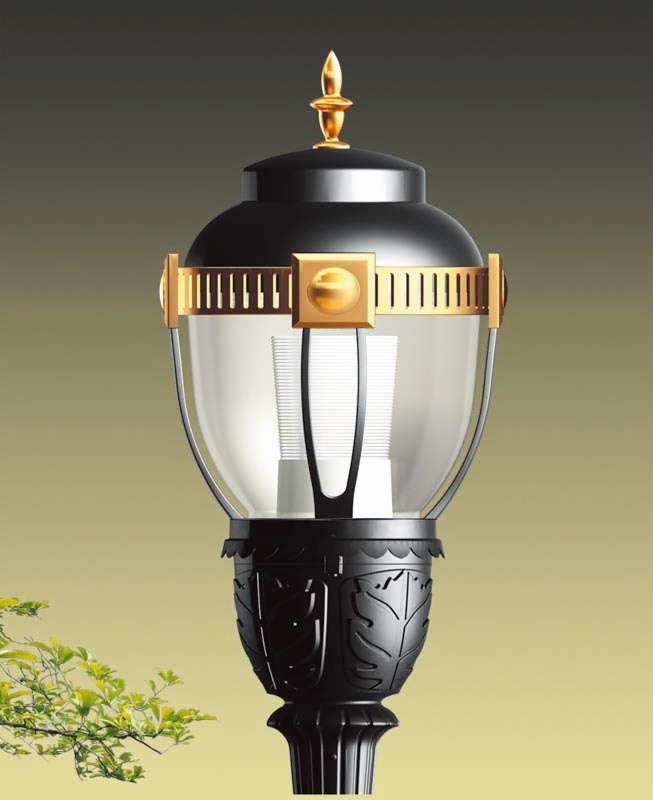

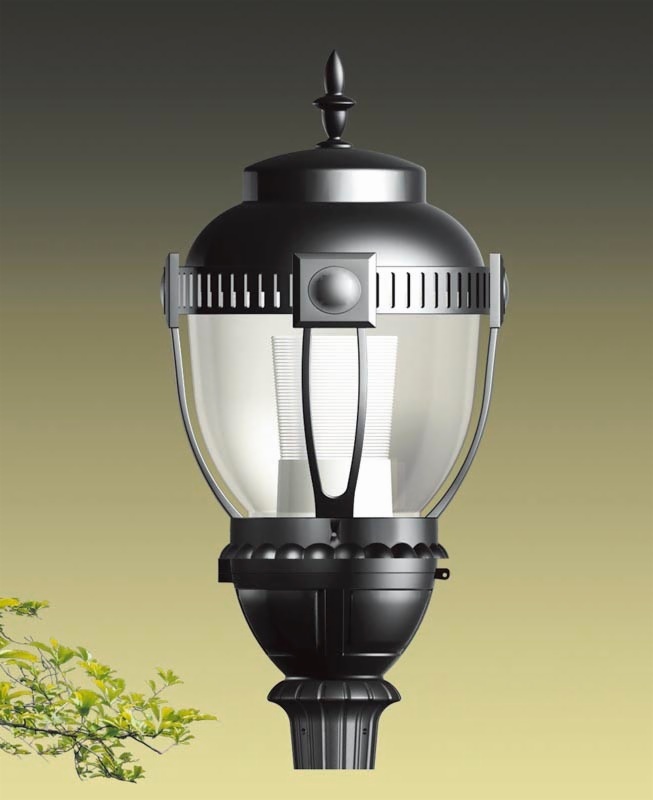

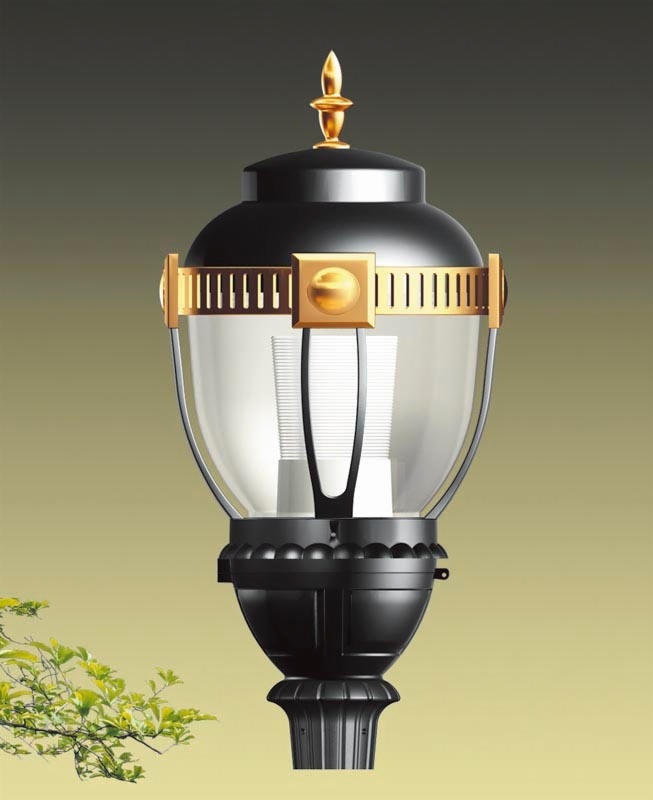

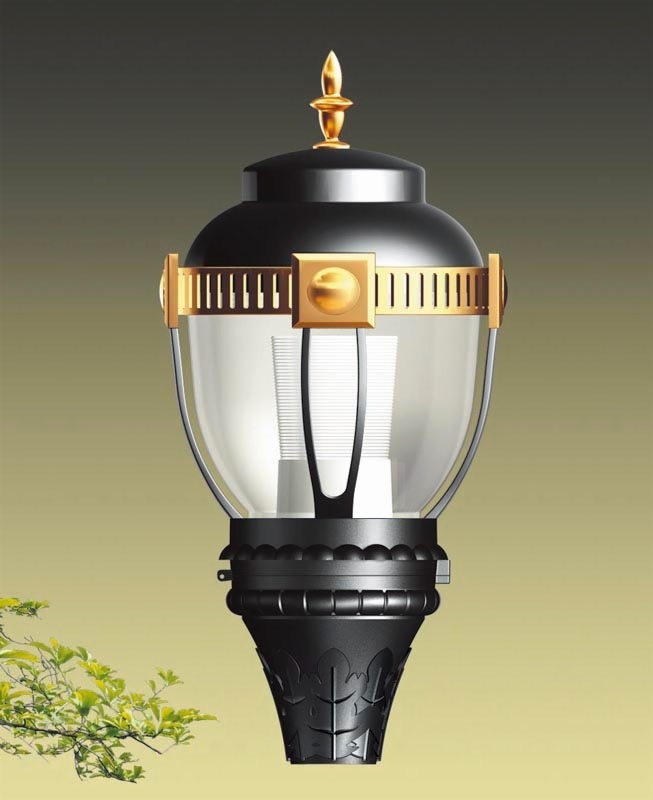

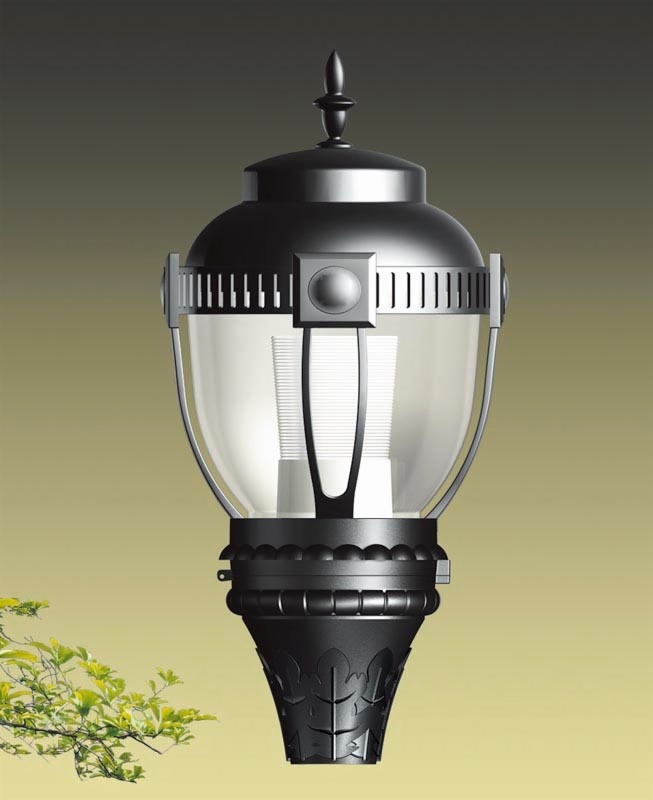

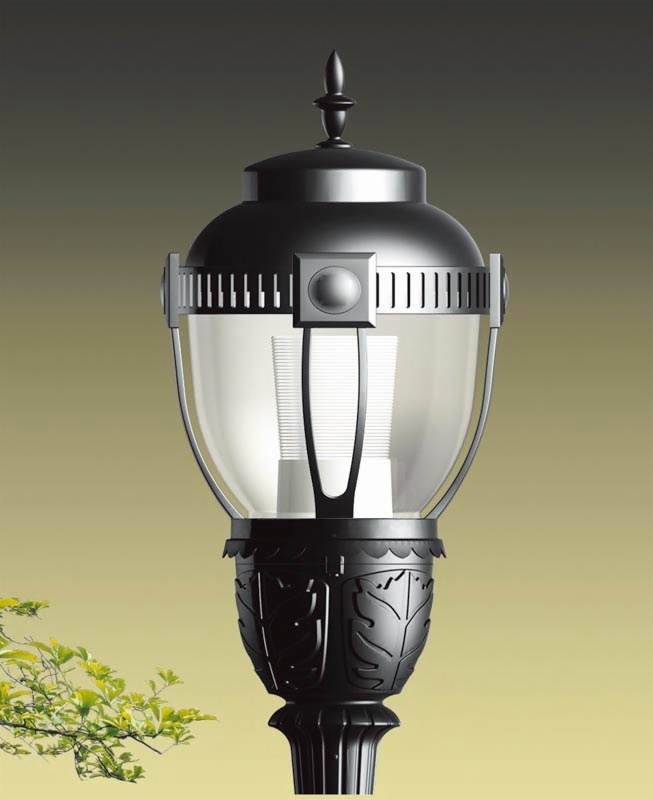

Traditional Post top lighting ACORN HA123 HA123A,HA123B,HA123C

  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Crown HA123A,HA123B,HA123C
Type: Garden Post top lighting
Style: Traditional
Quality: High Quality
Price: Upmarket
Warranty: 3 years

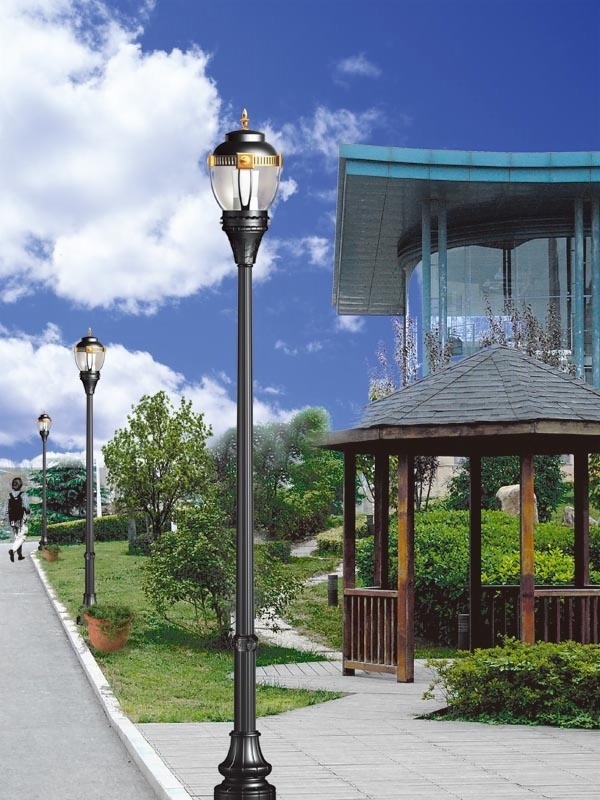

Application: Urban roads and street , Squares areas, Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3-5m
Mounting : Post-top: suitable for Ø76mmx90mm tenon
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26

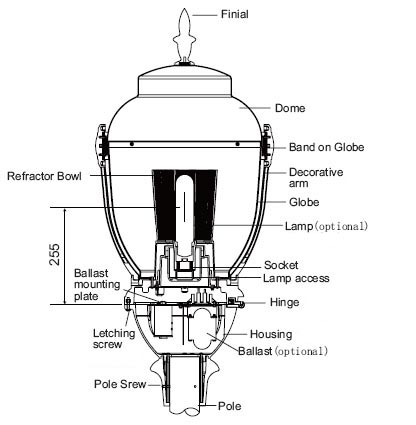

Material: FRP, fiber glass body
Final: Cast aluminium
Dome: Spun aluminium
Decorative arm , Band & Housing: Fiberglass-reinforced plastics,excellent mechanical strength and  bear the causticity
Globe : High efficiency acrylic refractor
Refractor Bowl::High efficiency acrylic refractor or glass(only for 150 HID lamp)
ColorStandard colors is black (BK) ,other colors dark bronze (DB)(RAL7013), dark grey (GY)(RAL7016), light grey(LG)(RAL7042), dark green (DN)(RAL6005) are available
Electrical Class I, IP Rating(optical) IP65


Ordering  information

Sample Number: HA123A-15S1R16-RTA2-PT02-3.0-BK








(Ballast Type)

(Voltage) (Freq.) (Mounting) (Pole) Finish
HA123A 70=70W M=MH 1,only  I=Impedance 1=120V 5=50Hz     BK=Black
HA123B 10-100W   ballast M=Leakage 0=208V 6=60Hz RTA   DB=Dark
HA123C 15-150W S=HPS include       magnetic 2=220V   RTA2         Bronze
  17=175W   2. all P=HX-HPF 3=230V   ...   GY=Grey
  25=250W   incude W=CWA 4=240V       DN=Dark
          7=277V             Green









Order No. Lamp Wattage Lamp Socket Install  Height m Gross / Net.W(kg) Dimension (cm) Packing size(cm) QTY 20/40GP
HA123A MAX 150W,HID E27/E40 3-5m 17/13 45X45x105 46x46x95 130/260
HA123B MAX 150W,HID E27/E40 3-5m 18/14 45X45x105 46x46x95 130/260
HA123C MAX 150W,HID E27/E40 3-5m 18/14 45X45x105 46x46x95 130/260

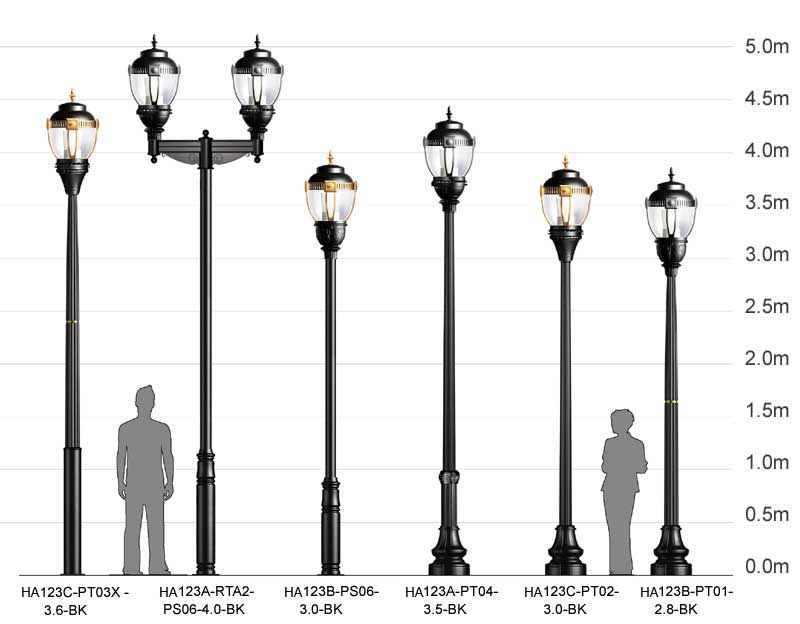

Bracket type and config


Poles Options
