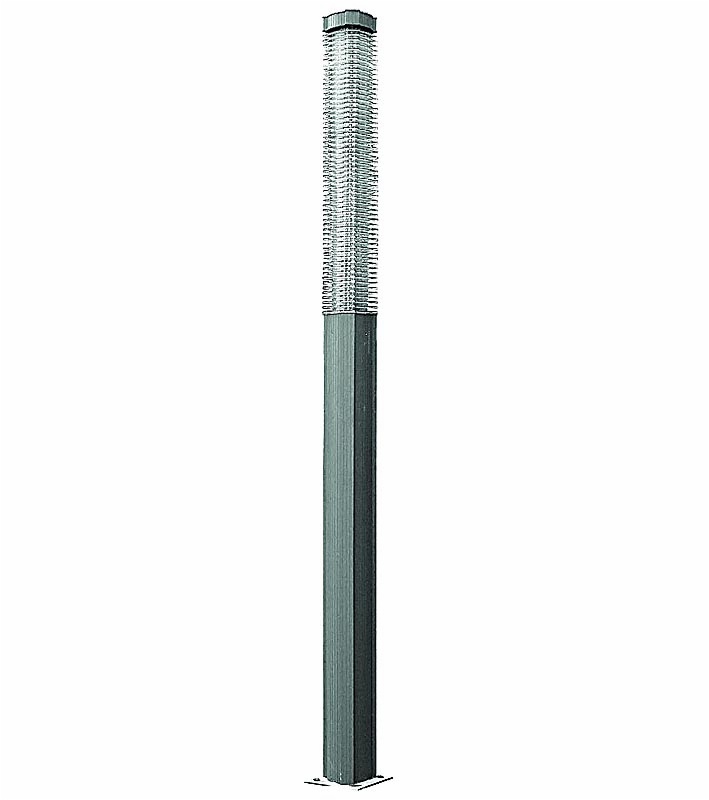

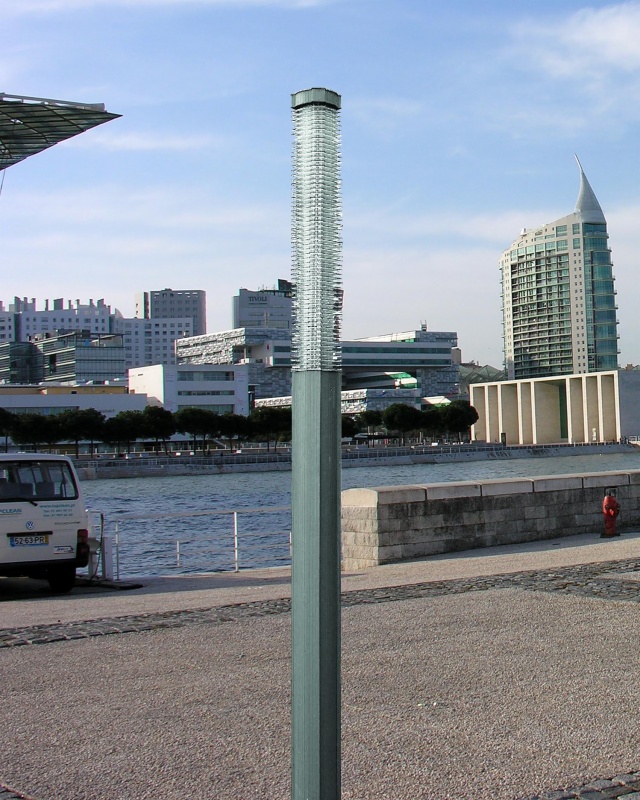

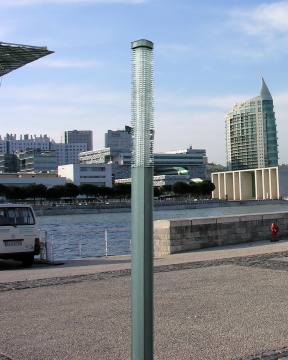

Modern Area/Site lighting Trigon HA0003D

Item Code:HA0003D Features:
  • Description

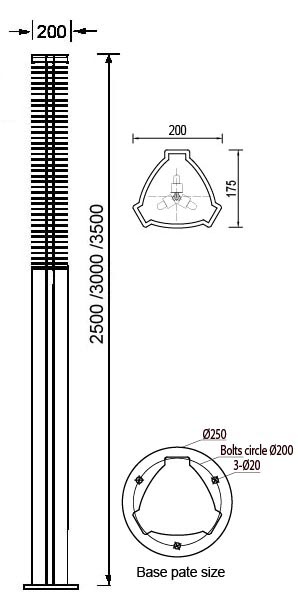

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Trigon HA0003D
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Squares areas, Pedestrian areas, Residential
areas,Parks,Walkways,Pathway,Driveway,Entrance
Installing Hight: 3-5m
Lamps: LED tube or Fluorescent lamp,30w-150w
Lamp Wattage:
2.5m pole:900mm light 3*10w T5 led or 3*21w T5 FL
3m pole:1200mm light ,3*A14w T5 led or 3*28w T5 FL
3.5m pole:1200mm light ,3*14w T5 led or 3*28w T5 FL
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Material: Aluminium body
Lighting Column: Three pieces extrude aluminium assembed trigon column
(stripe surface) , four aluminium bar supporting lampshade, powder coating
Lens: Clear acrylic /PC lampshade
Color: Standard color are Black,Dark grey RAL7016 or Light grey
RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP54


Ordering  information

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HA0003D-2.5 T5,LED or FL G5 2.5m 16/15kg 20x20x250 22x22x250 160/320
HA0003D-3.0 T5,LED or FL G5 3.0m 19/18kg 20x20x300 22x22x300 80/240
HA0003D-3.5 T5,LED or FL G5 3.5m 22/21kg 20x20x350 22x22x350 80/240
