Garden area/site lighting Obama LED HA83

  • Description

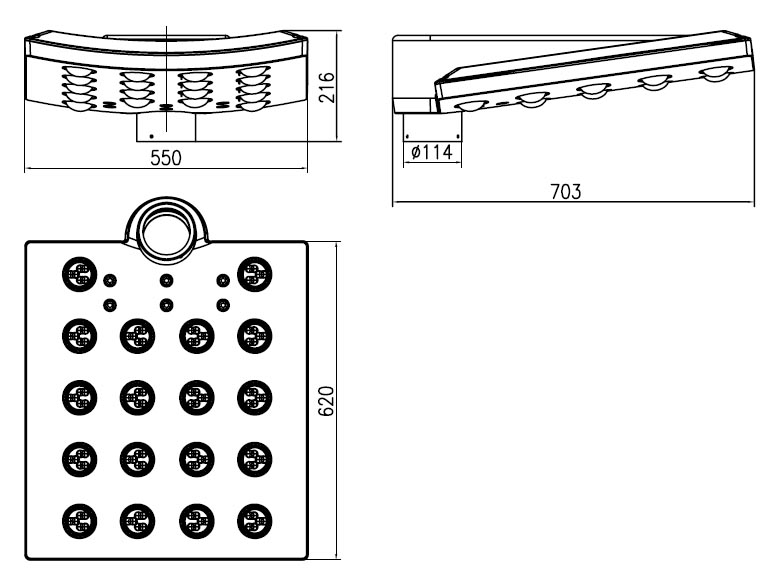

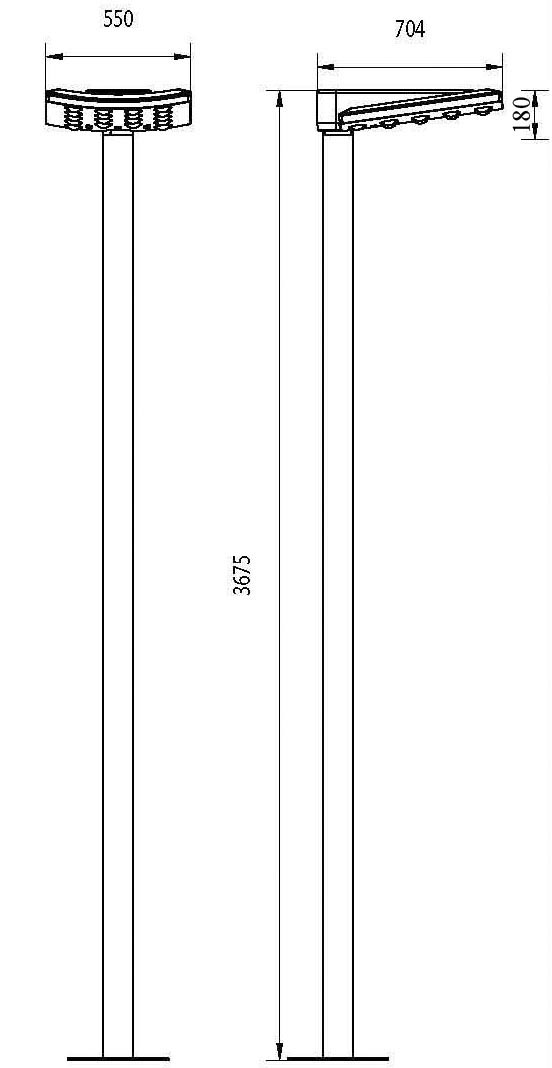

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Obama HA83
Type: Garden area/site lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Mounting : Post-top, suitable for Ø90mmx120mm tenon
Lamps: LED modules GFGY-09
Lamp Wattage: 40W/ 50w/ 60W/ 80W/ 100W
Input Voltage: 90-270VAC,50-60HZ or 12V-24VDC
Power Factor: >0.9
Luminous Flux: 100lm/W
LED Chips Brand: Cree,OSRAM,Philips,Bridge lux
LED Driver Brand: MEAN WELL,MOSO,INVENTRONICS
Color Temperature(CCT): 3000K / 4000k / 5000k / 6500k
Color Rending Index(CRI): CRI>70
Beam Angel: 120x60°
Working Temperature: -30 to 50℃
Working Lifetime: 50000 hours
Material: FRP, fiber glass body
Housing: Fiber glass reinforced plastics
Heat Sink: Die cast aluminium
lens: High efficiency acrylic refractor,
Pole: Hot dipped galvanized steel, powder coating
Color: Standard color is dark grey RAL7016 or Light grey
RAL 7042 or Black,Other color is available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux  /Current If Install  Height Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) QTY(pcs) 20'/40'GP
HA83-40-BR 40W 36pcs/Bridge 4800lm/350mA 3m-4m 13kg /12kg 70x55X21.5 72x58X24 280/560
HA83-50-CR 50W 36pcs/Cree 5580lm/450mA 3m-5m 13kg /12kg 70x55X21.5 72x58X24 280/560
HA83-60-BR 60W 54pcs/Bridge 6480lm/350mA 4m-5m 13kg /12kg 70x55X21.5 72x58X24 280/560
HA83-60-CR 60W 36pcs/Cree 6480lm/550mA 4m-5m 13kg /12kg 70x55X21.5 72x58X24 280/560
HA83-80-CR 80W 54pcs/Cree 8910m/500mA 5m 13kg /12kg 70x55X21.5 72x58X24 280/560
HA83-100-CR 100W 54pcs/Cree 10530lm/600mA 5m 13kg /12kg 70x55X21.5 72x58X24 280/560
