FRP Bollard lighting HC9903

Item Code:HC9903 Features:
  • Description

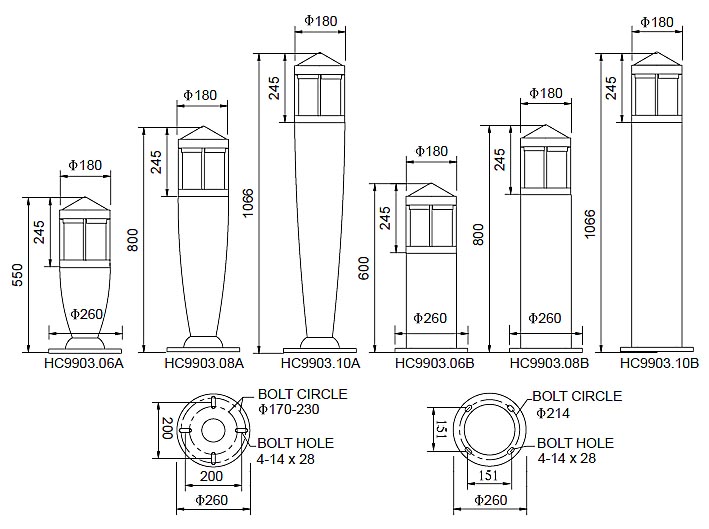

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC9903
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

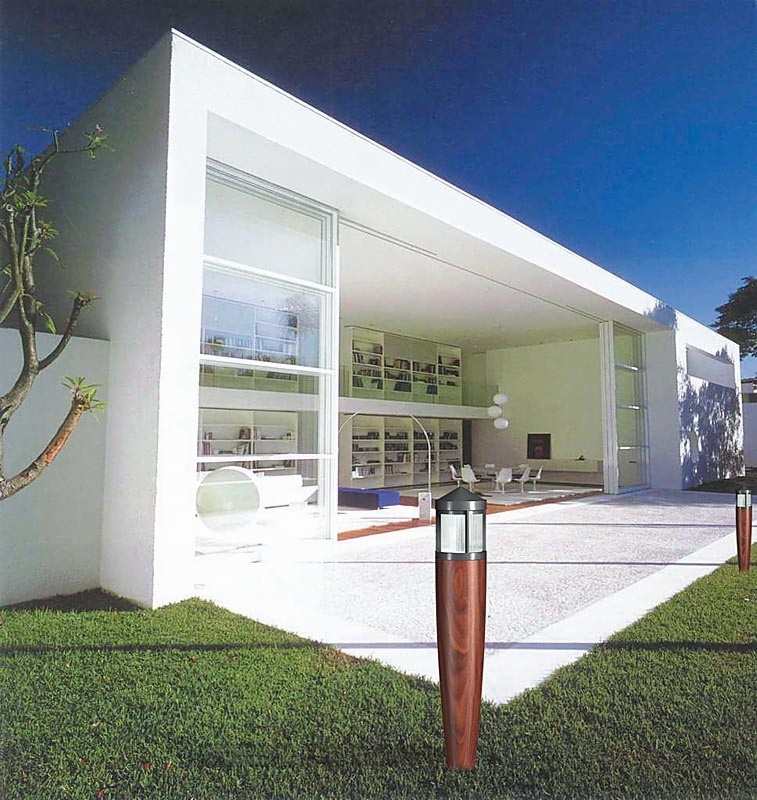

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance
Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz
Lamp: Max 70W high pressure sodium(HPS) or metal
halide(MH),or Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26
Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: High efficiency clear PC/acrylic refractor
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

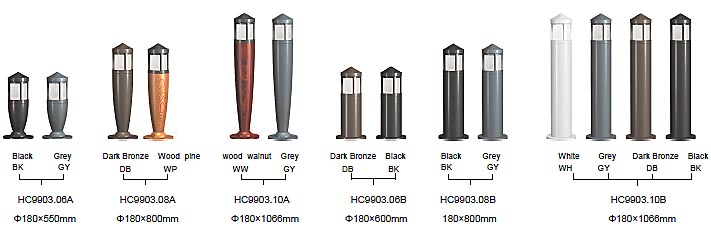

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

Ordering  information

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC9903.06A MAX 23W  E27/E26 550mm 5kg /4kg 23x23x55 27x27x57 640/1280
HC9903.08A MAX 70W  E27/E26 800mm 6kg /5kg 26x26x80 27x27x82 430/860
HC9903.10A MAX 70W  E27/E26 1066mm 7kg /6kg 26x26x107 27x27x109 330/660
HC9903.06B MAX 70W  E27/E26 600mm 5kg /4kg 26x26x60 27x27x62 570/1140
HC9903.08B MAX 70W  E27/E26 800mm 6kg /5kg 26x26x80 27x27x82 430/860
HC9903.10B MAX 70W  E27/E26 1066mm 7kg /6kg 26x26x107 27x27x109 330/660
