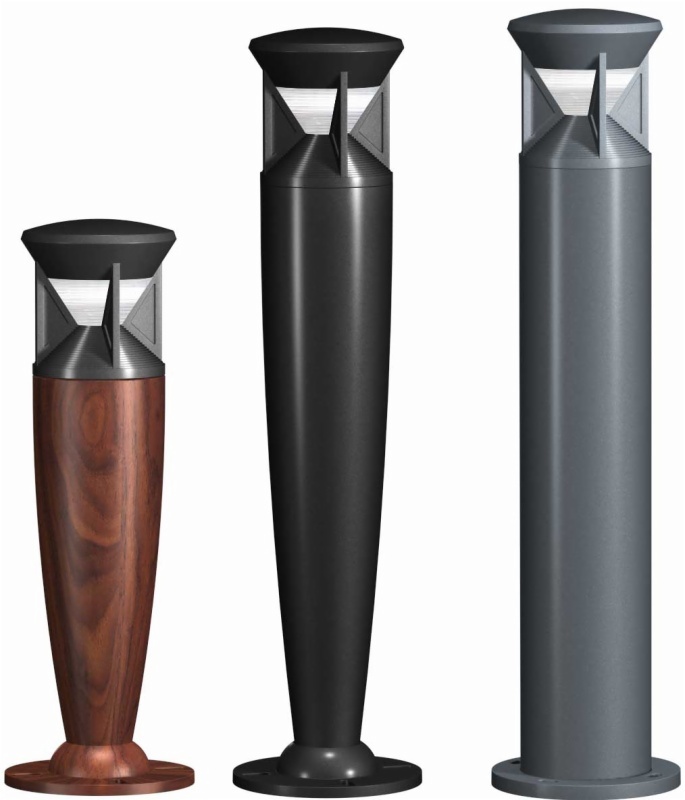

FRP Bollard lighting HC9961

Item Code:HC9961 Features:
  • Description

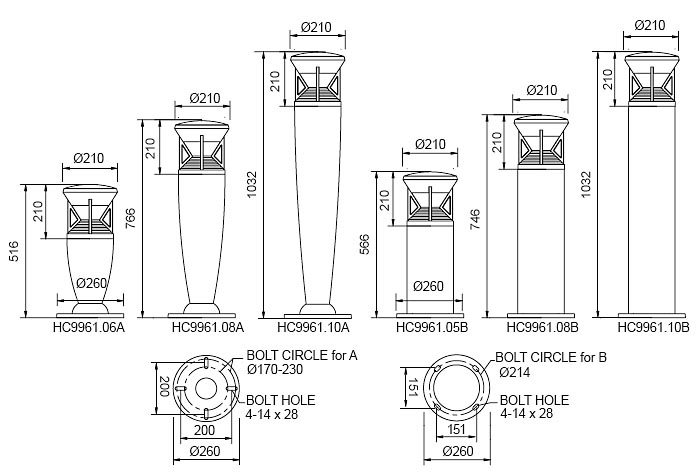

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC9961
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance
Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz
Lamp: Max 70W high pressure sodium(HPS) or metal
halide(MH),or Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26

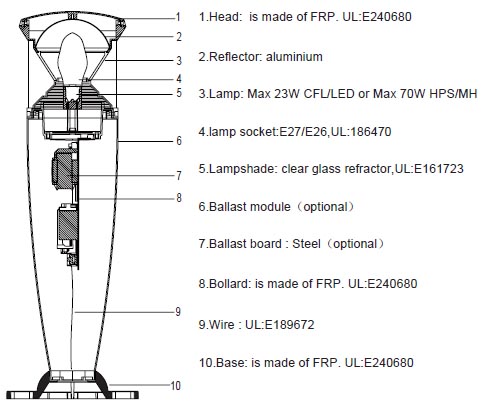

Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: Clear glass refrator with top aluminium reflector
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

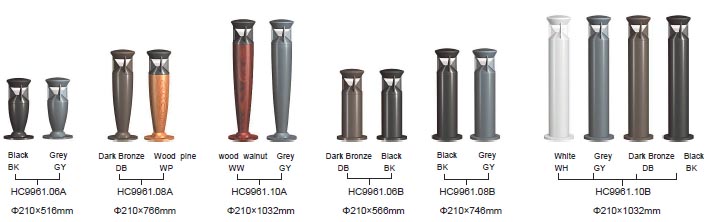

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

Ordering  information

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC9961.06A MAX 23W  E27/E26 516mm 5kg /4kg 23x23x52 27x27x54 672/1344
HC9961.08A MAX 70W  E27/E26 766mm 6kg /5kg 26x26x77 27x27x79 464/928
HC9961.10A MAX 70W  E27/E26 1032mm 7kg /6kg 26x26x103 27x27x105 352/704
HC9961.06B MAX 70W  E27/E26 566mm 5kg /4kg 26x26x57 27x27x59 640/1280
HC9961.08B MAX 70W  E27/E26 746mm 6kg /5kg 26x26x75 27x27x77 464/928
HC9961.10B MAX 70W  E27/E26 1032mm 7kg /6kg 26x26x103 27x27x105 352/704
