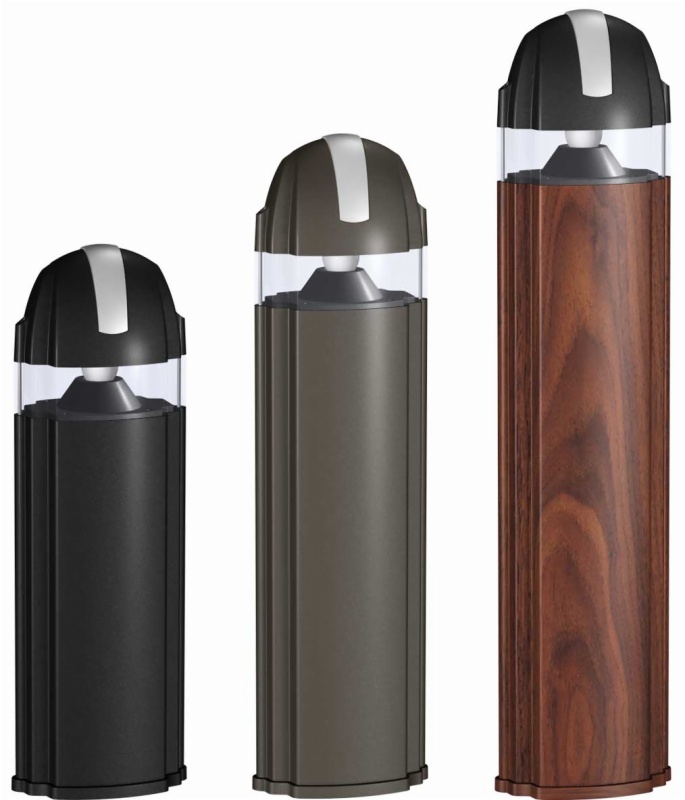

FRP Bollard lighting HC2043

Item Code:HC2043 Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC2043
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance
Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz
Lamp: Max 70W high pressure sodium(HPS) or metal
halide(MH),or Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26

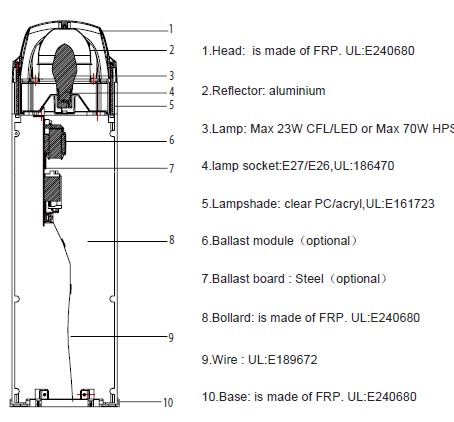

Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: High efficiency clear PC/acrylic lens,aluminium reflector
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

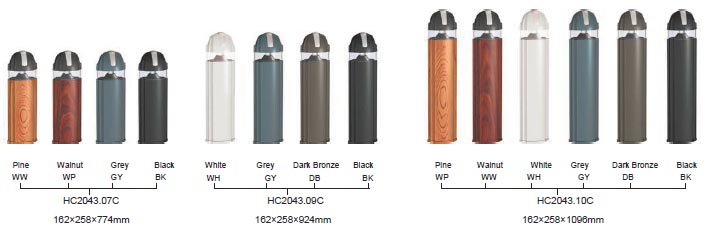

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

Ordering  information

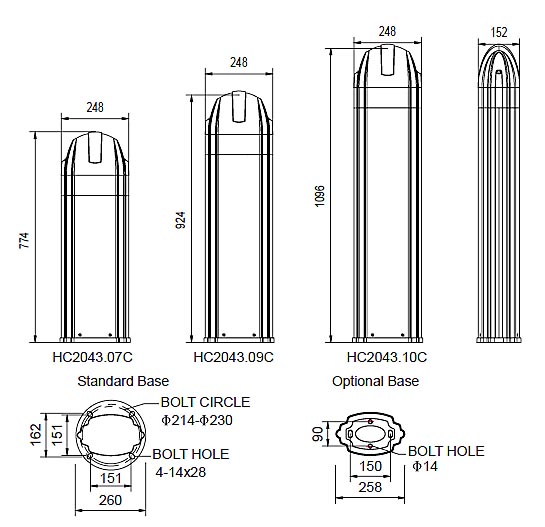

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC2043.07C MAX 70W  E27/E26 770mm 5kg /4kg 26x26x77 27x27x80 448 /896
HC2043.09C MAX 70W  E27/E26 920mm 6kg /5kg 26x26x92 27x27x95 380 /760
HC2043.10C MAX 70W  E27/E26 1090mm 7kg /6kg 26x26x109 27x27x112 330 /660
