FRP Bollard lighting HC9701

Item Code:HC9701 Features:
  • Description

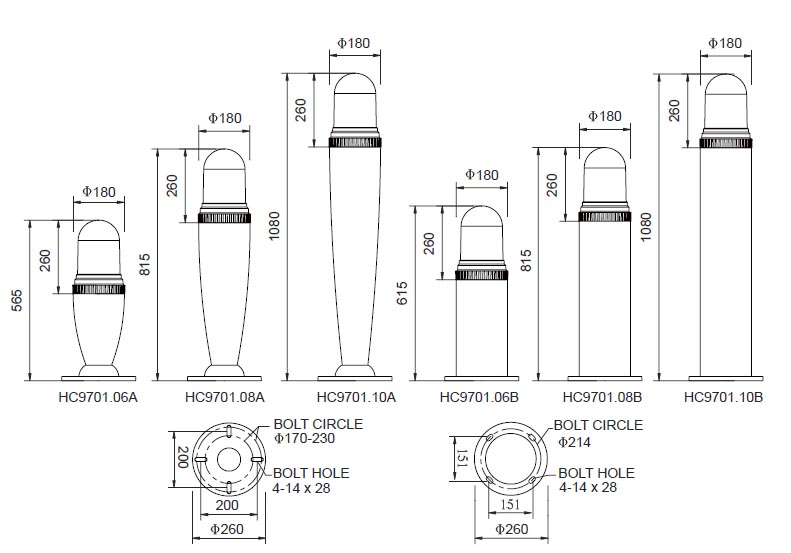

  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC9701
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

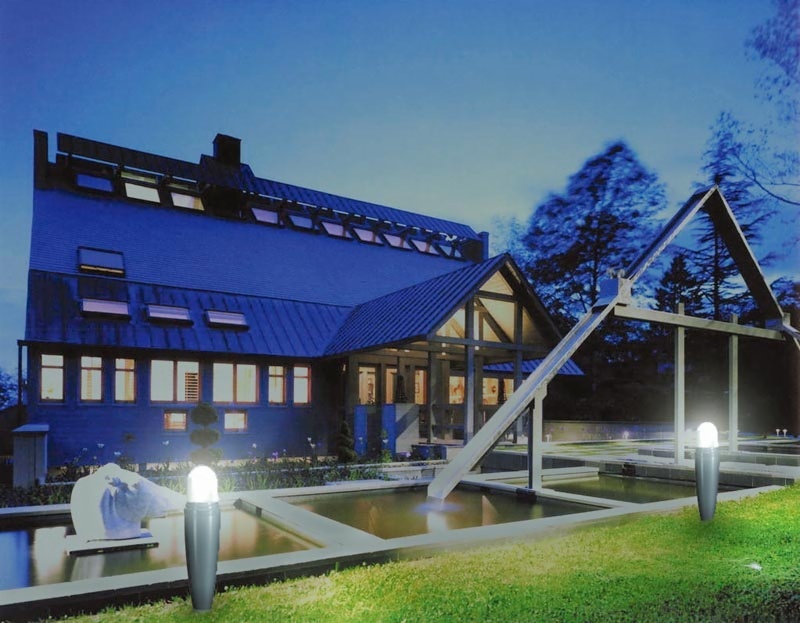

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance
Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz
Lamp: Max 70W high pressure sodium(HPS) or metal
halide(MH),or Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26

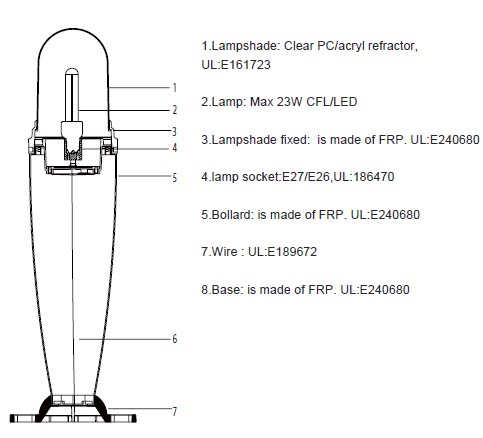

Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: High efficiency clear PC/acrylic refractor
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

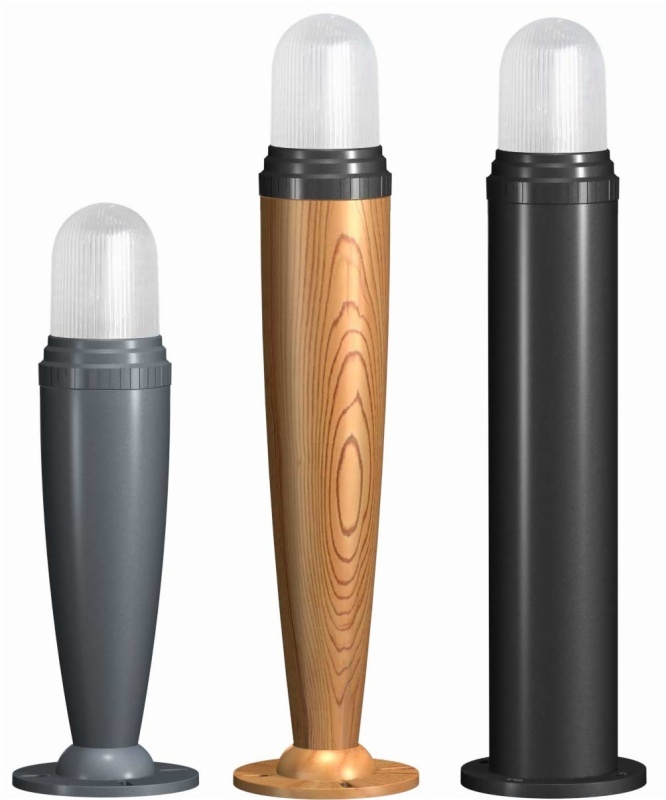

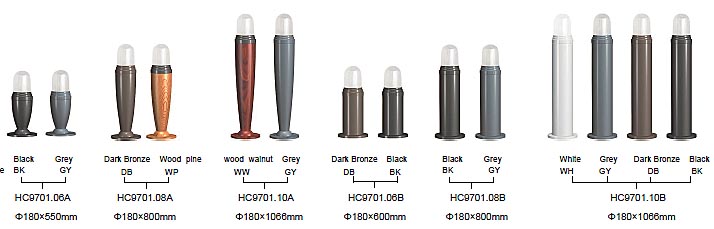

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

Ordering  information

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC9701.06A MAX 23W  E27/E26 565mm 5kg /4kg 23x23x57 27x27x59 640/1280
HC9701.08A MAX 70W  E27/E26 815mm 6kg /5kg 26x26x82 27x27x84 430/860
HC9701.10A MAX 70W  E27/E26 1080mm 7kg /6kg 26x26x108 27x27x111 330/660
HC9701.06B MAX 70W  E27/E26 615mm 5kg /4kg 26x26x62 27x27x64 570/1140
HC9701.08B MAX 70W  E27/E26 815mm 6kg /5kg 26x26x82 27x27x84 430/860
HC9701.10B MAX 70W  E27/E26 1080mm 7kg /6kg 26x26x108 27x27x111 330/660
