FRP Bollard lighting HC9804F

Item Code:HC9804F Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC9804F
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

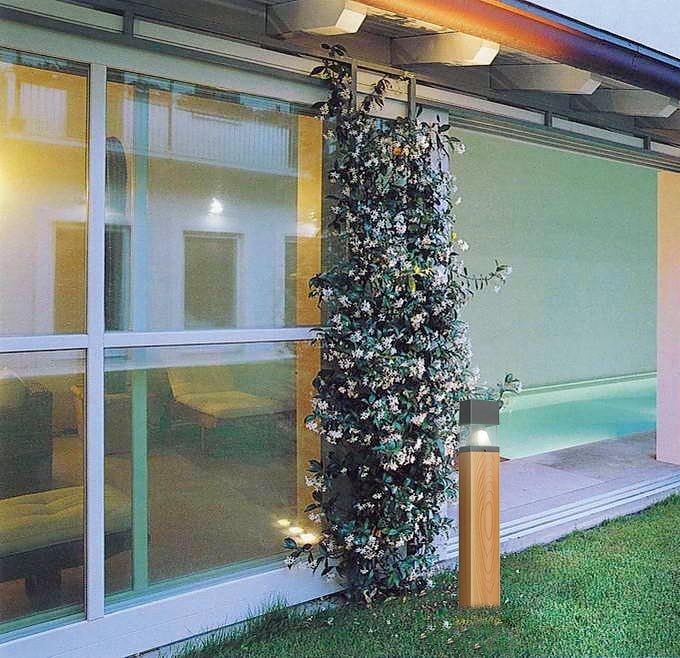

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance
Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz
Lamp: Max 70W high pressure sodium(HPS) or metal
halide(MH),or Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26

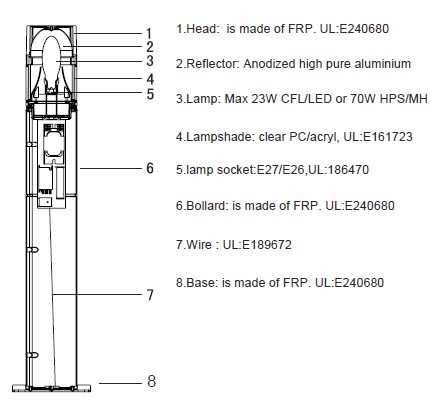

Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: High efficiency Clear PC/acrylic lens,with anodized
              aluminium reflector
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

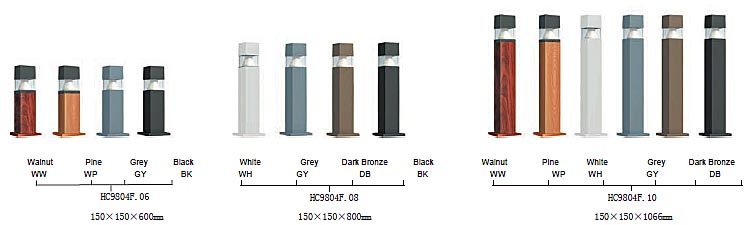

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

Ordering  information

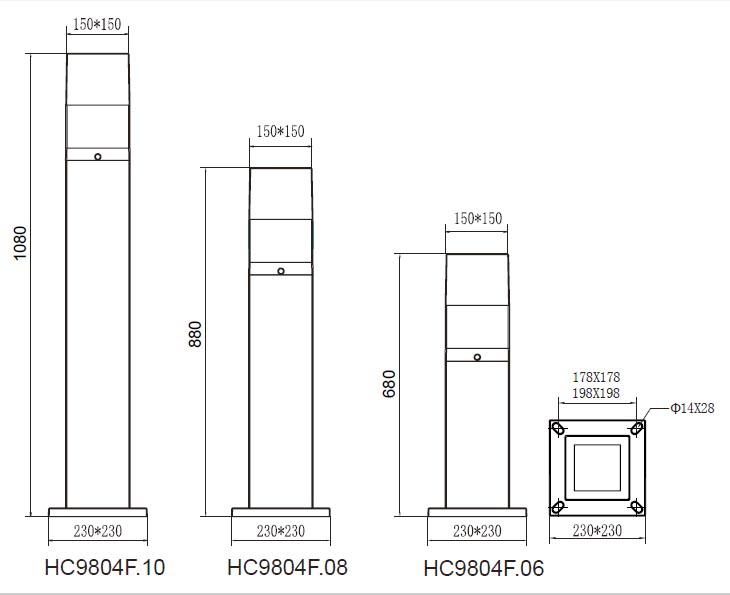

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC9804F.06 MAX 70W  E27/E26 680mm 5kg /4kg 23x23x68 25x25x71 600 /1200
HC9804F.08 MAX 70W  E27/E26 880mm 6kg /5kg 23x23x88 25x25x91 490 /980
HC9804F.10 MAX 70W  E27/E26 1080mm 7kg /6kg 23x23x108 25x25x111 400 /800
