FRP Bollard lighting HC9491

Item Code:HC9491 Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC9491
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

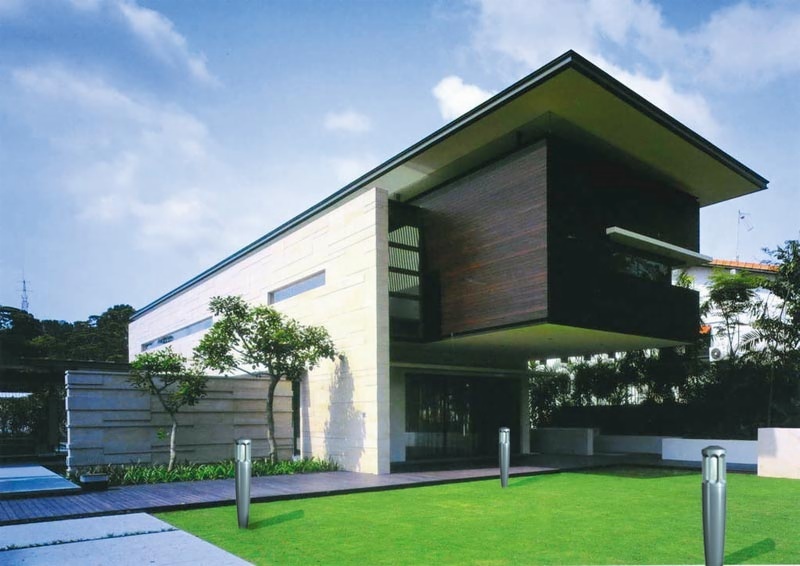

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance
Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz
Lamp: Max 70W high pressure sodium(HPS) or metal
halide(MH),or Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26

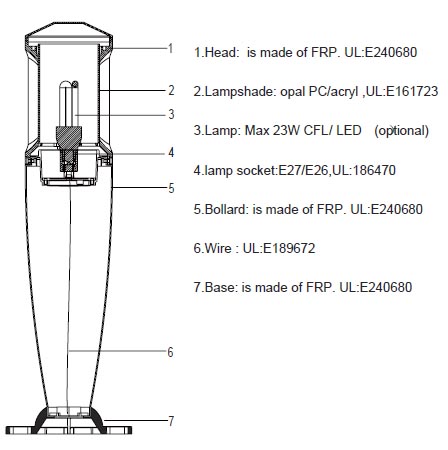

Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: High efficiency clear acrylic refractor
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

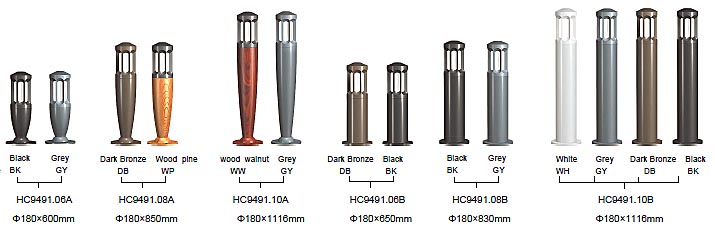

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

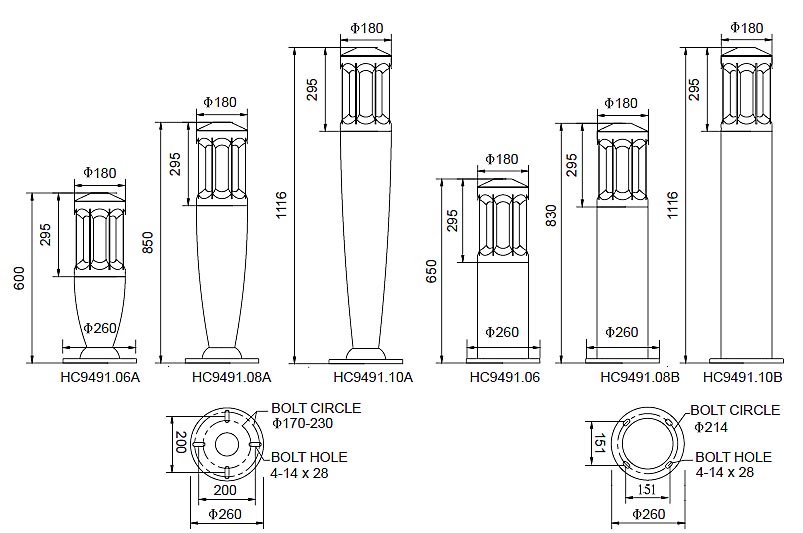

Ordering  information

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC9491.06A MAX 23W  E27/E26 600mm 5kg /4kg 26x26x60 27x27x63 570 /1140
HC9491.08A MAX 70W  E27/E26 850mm 6kg /5kg 26x26x85 27x27x88 400 /800
HC9491.10A MAX 70W  E27/E26 1116mm 7kg /6kg 26x26x112 27x27x115 310 /620
HC9491.06B MAX 70W  E27/E26 650mm 5kg /4kg 26x26x65 27x27x68 530 /1060
HC9491.08B MAX 70W  E27/E26 850mm 6kg /5kg 26x26x85 27x27x88 400 /800
HC9491.10B MAX 70W  E27/E26 1116mm 7kg /6kg 26x26x112 27x27x115 310 /620
