FRP Bollard lighting HC1951

Item Code:HC1951 Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: HC1951
Type: FRP Bollard lighting
Quality: High Quality
Price: Upmarket
Warranty: 3 years

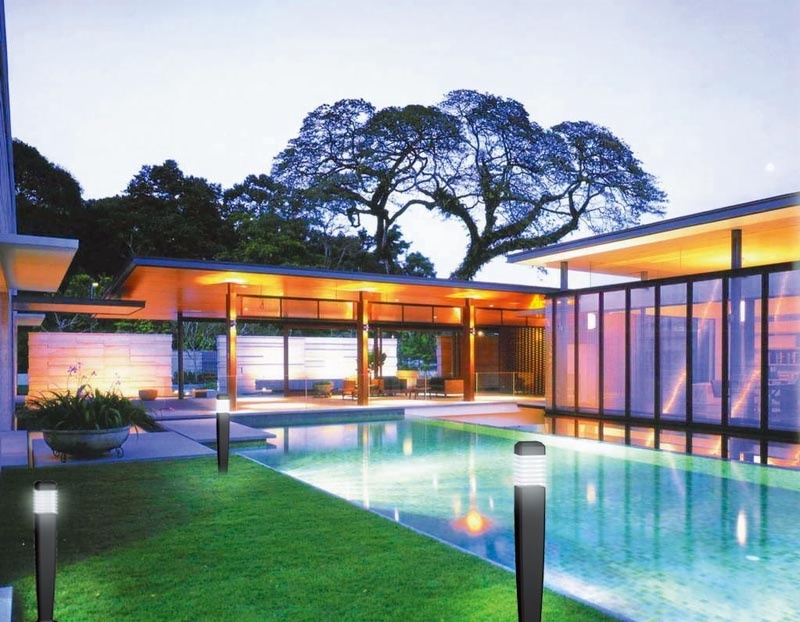

Application: Parks,Gardens,Squares areas,Plazas,Residential
                    areas,Walkways,Pathway,Driveway,Entrance

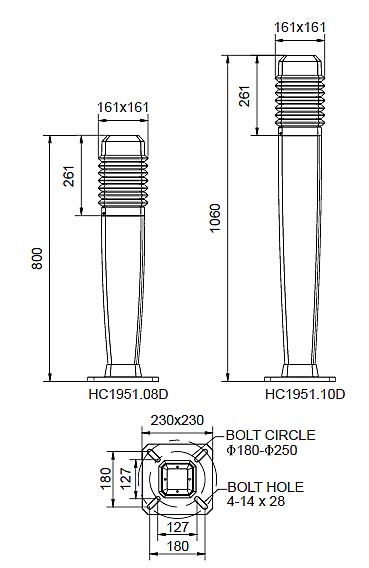

Mounting:Base mounts onto foundation with four (4)
                  12mm x 250mm anchor bolts
Voltage: 220-240V/50Hz,110-130V/60Hz

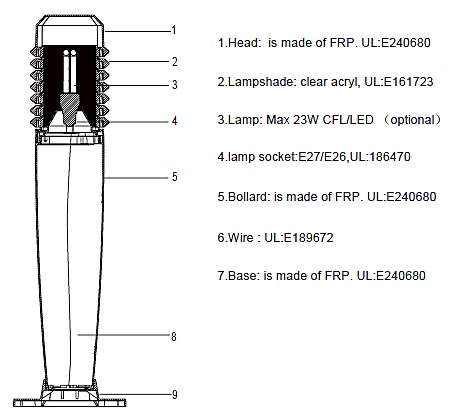

Lamp: Max 23W compact fluorescent(CFL).
or 3W /5W/7W/9W LED bulb, Socket: E27/E26
Bollard: Fiberglass-reinforced plastics body,having excellent
mechanical strength and bear the causticity.
Optics: High efficiency clear acrylic refractor
Standard: Comply with IEC598/EN60598, Class I eletrical,
                    IP rating:IP65

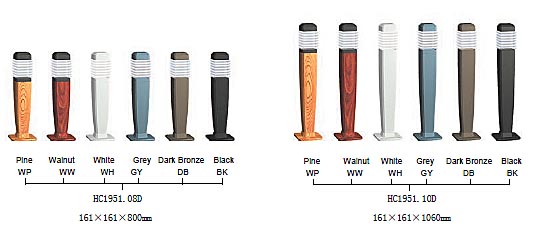

Finish: Standard painting colors is black (BK) ,dark bronze
(DB), grey(GY),white(WH),standard texture colors is pine wood
texture(WP),walnut wood texture(WW),special colors is available.

Ordering  information

Order No. Lamp    Wattage Lamp   Socket Install   Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)   20'/40'GP
HC1951.08B MAX 23W  E27/E26 800mm 6kg /5kg 23x23x80 23x23x83 540 /1080
HC1951.10B MAX 23W  E27/E26 1060mm 7kg /6kg 23x23x106 23x23x109 410 /820
