Number: Phenix HL602

Type:HID Street lighting

Style: Contemporary

Quality: High Quality

Price: Upmarket

Warranty: 3 years

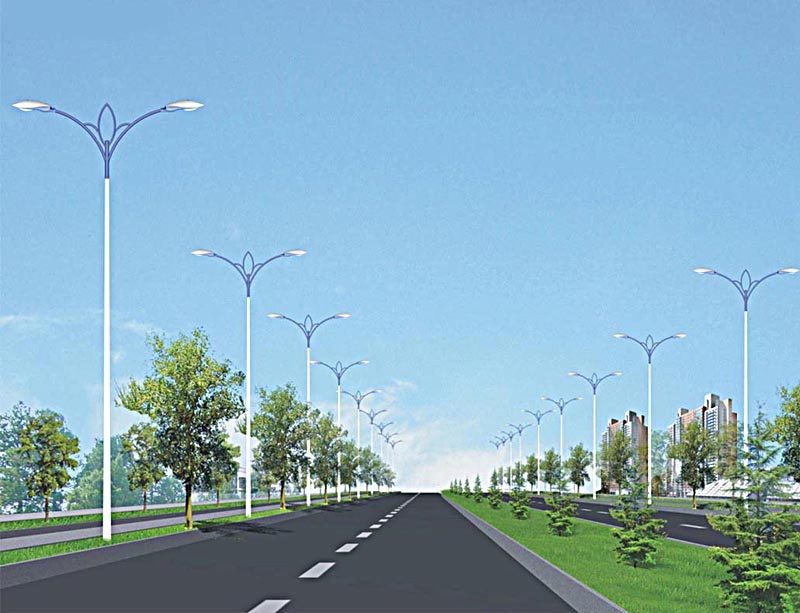

Application: Roads and highways,Urban roads and street,

Squares areas,Pedestrian areas, Residential areas,Parks

Installing Hight: 5-12m

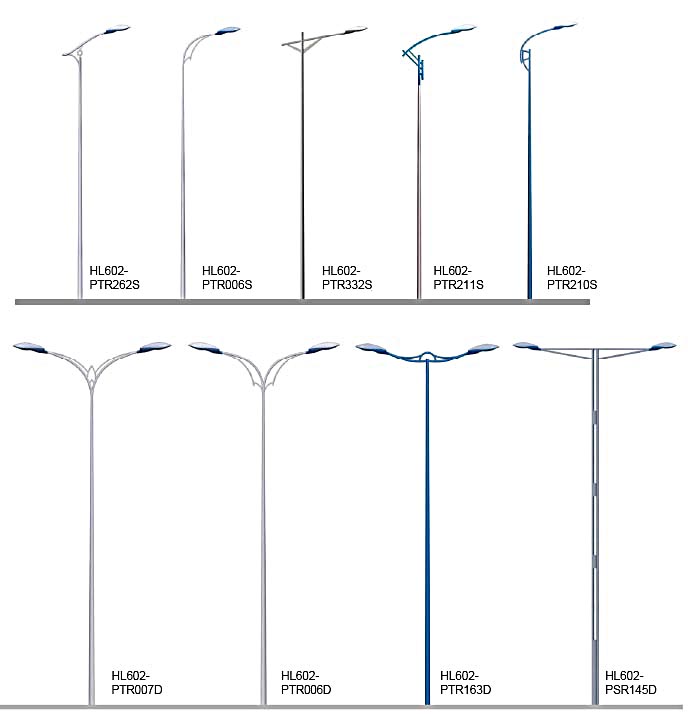

Mounting : Side-entry or Post top, Ø60mm x120 spigot

or vertical installing for Ø60-Ø76mm pole

Lamps: HID,HPS High pressure sodium or MH metal halide

Lamp Wattage:150W,250W,400W ,E40/E39 Socket

Input Voltage: 220-240V/50Hz,110-130V/60Hz

Power Factor: >0.9

Working Temperature: -40 to 50℃

Material: Aluminium body

Body: Heavy duty die cast aluminium,Polyester powder coating

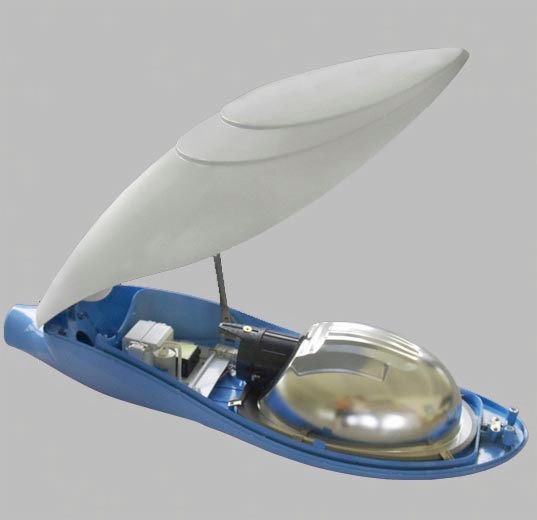

Reflector: Anodized high pure aluminium

lens: Clear curved glass toughened,

Gasket: Silicone rubber

Toggles : Stainless steel

Color: Polyester powder coated,standard colors is black (BK),

dark grey(GY)(RAL7016),light grey(LG)(RAL7042),Silver grey(SG),

White(WH),Dark Blue(BU)(RAL5005),other colors are available

Standard:

Isolation degree Class I, IP Rating(optical) IP65

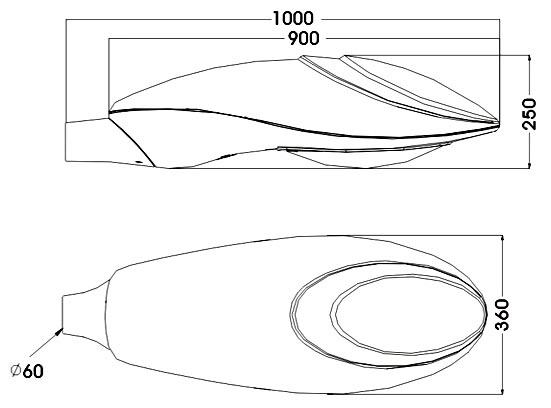

Order No.	Lamp Wattage	Lamp Socket	Install Height	Gross/ Net Weight	*Dimension LWH(cm)*	Packing size(cm)	QTY(pcs) 20'/40'GP
HL602	MAX 400W	E40/E39	5m-12m	11 / 10kg	100x36x25	103x39x30	240/480

Please contact HSO to get more information and high resolution catalog &pictures
