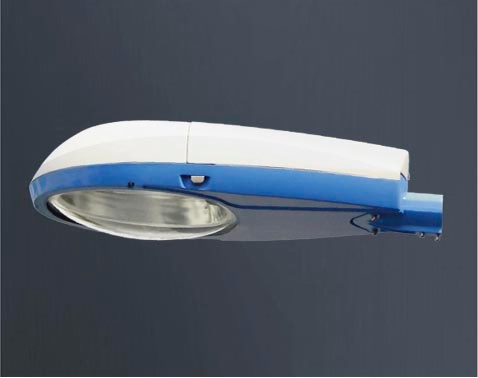

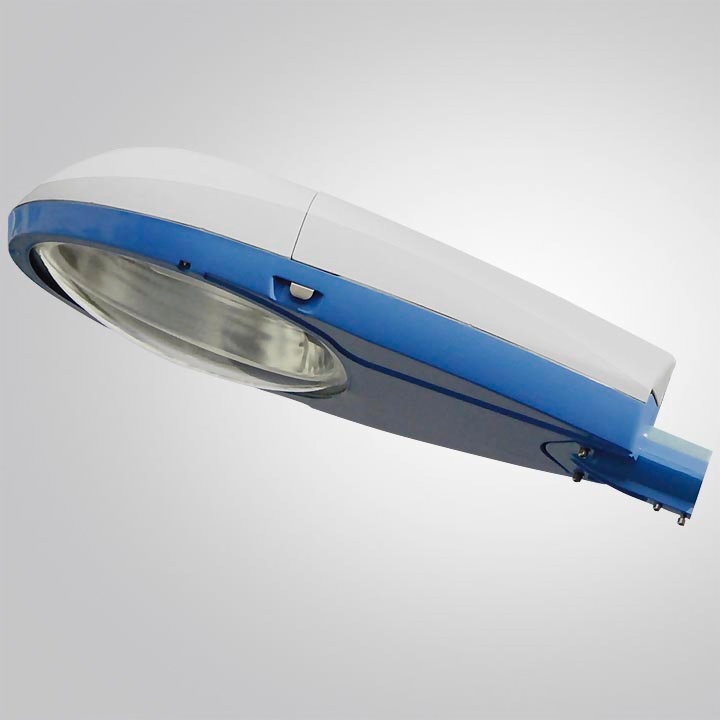

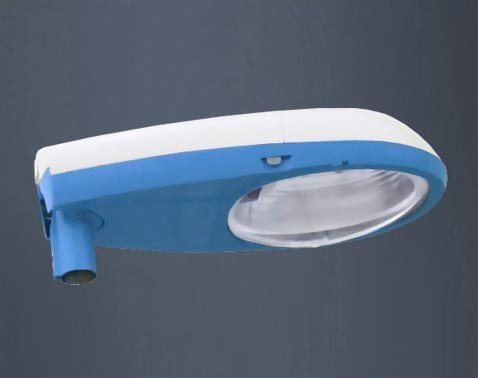

HID Street lighting 338 HL607

  • Description
  • Dimensions

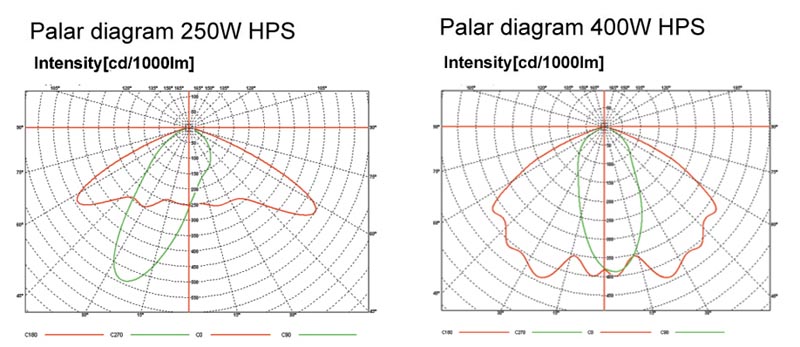

  • Photometrics
  • Ordering Guide
  • Downloads
Number:   HL607
Type:HID Street lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

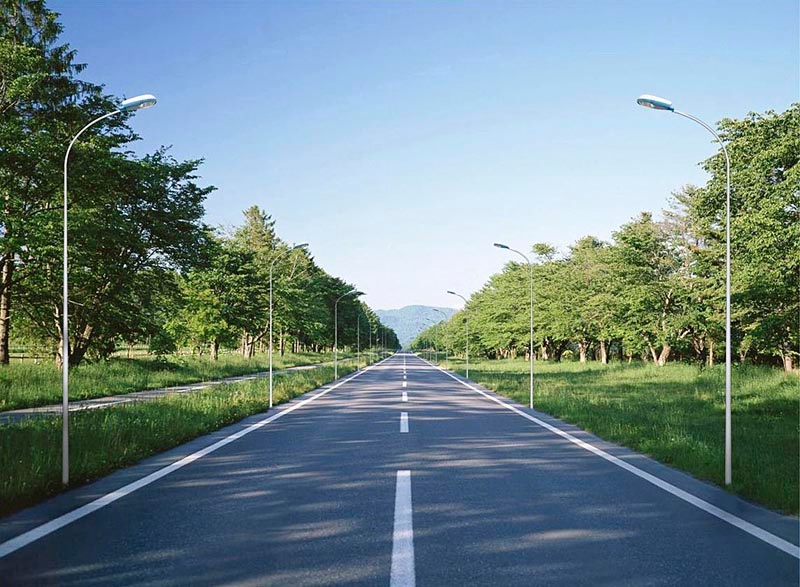

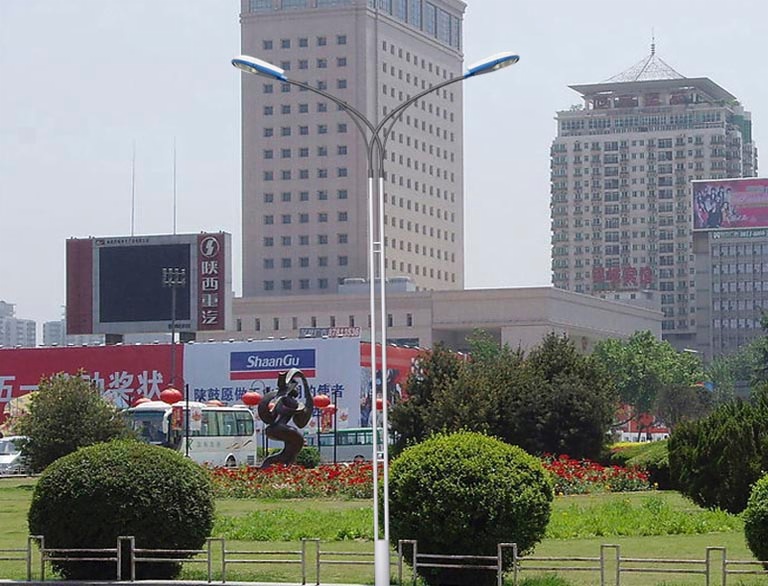

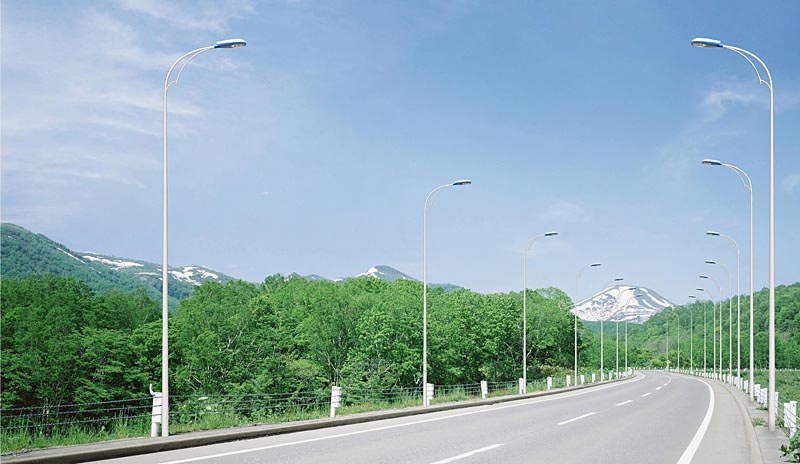

Application: Roads and highways,Urban roads and street,
Squares areas,Pedestrian areas, Residential areas,Parks
Installing Hight: 5-12m
Mounting : Side-entry or Post top, Ø48Ø60mm x120 spigot
Lamps: HID,HPS High pressure sodium or MH metal halide
Lamp Wattage:150W,250W,400W ,E40/E39 Socket
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Power Factor: >0.9
Working Temperature: -40 to 50℃
Material: Aluminium body

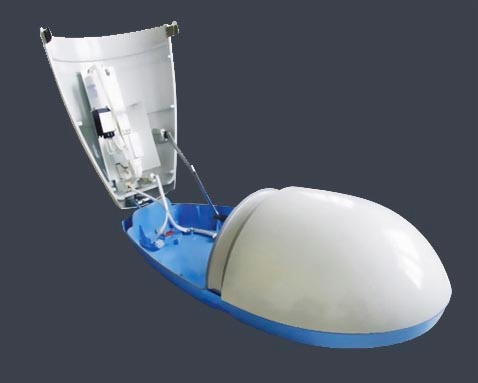

Body: Heavy duty die cast aluminium,Polyester powder coating
Reflector: Anodized high pure aluminium
lens: Clear curved glass toughened,
Gasket: Silicone rubber
Toggles : Stainless steel
Color: Polyester powder coated,standard colors is black (BK),
dark grey(GY)(RAL7016),light grey(LG)(RAL7042),Silver grey(SG),
White(WH),Dark Blue(BU)(RAL5005),other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65

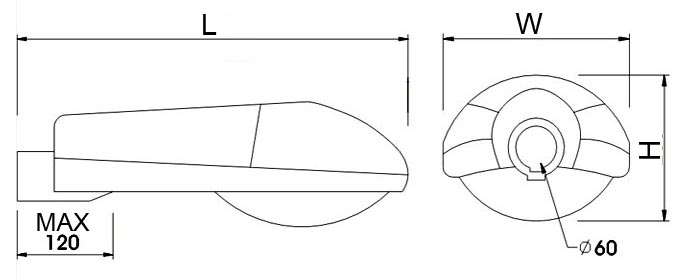

 Model L W H Power
HL607L 980 416 280 150W-400W
HL607M 820 400 230 150W-400W
HL607S 680 330 220 150W-250W





Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)  20'/40'GP Volume / PCS  CBM
HL607L MAX 400W E40 5m-12m 12 / 11kg 98x41.5x28 100x44x31 200 /400 0.14
HL607M MAX 400W E40 5m-12m 6 / 5kg 82x40x23 84x42x26 310 /620 0.09
HL607S MAX 250W E40 5m-8m 4.5 / 4kg 68x33x22 70x35x25 450 /900 0.06



►HL607 PDF Brochure

Please contact HSO to get more information and high resolution catalog &pictures
