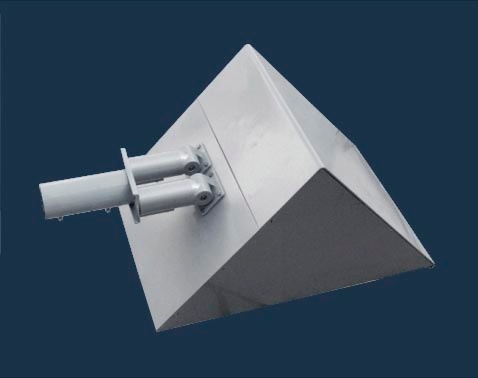

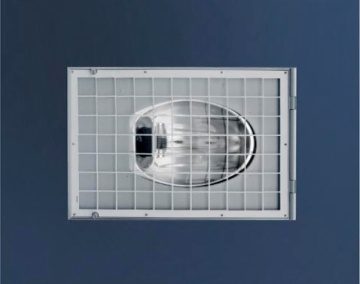

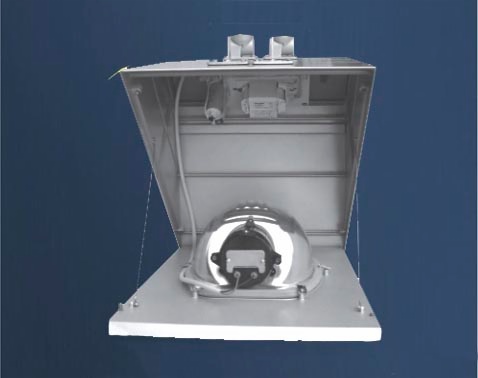

HID Street lighting trigon HL609

  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number:  Trigon HL609
Type:HID Street lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

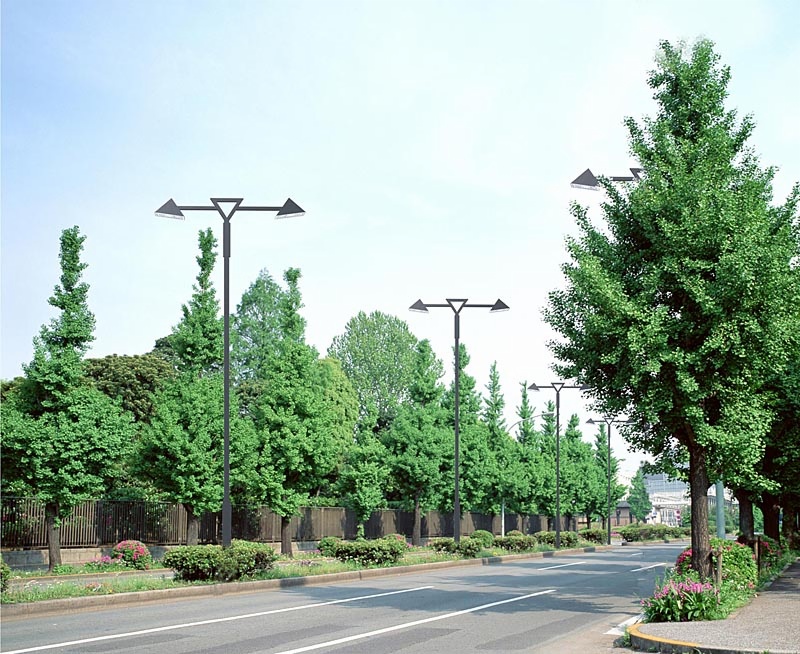

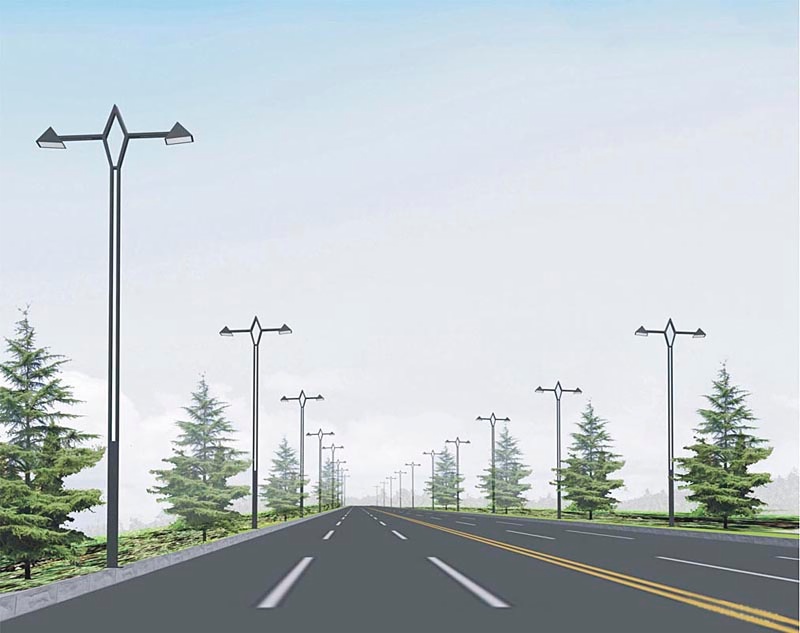

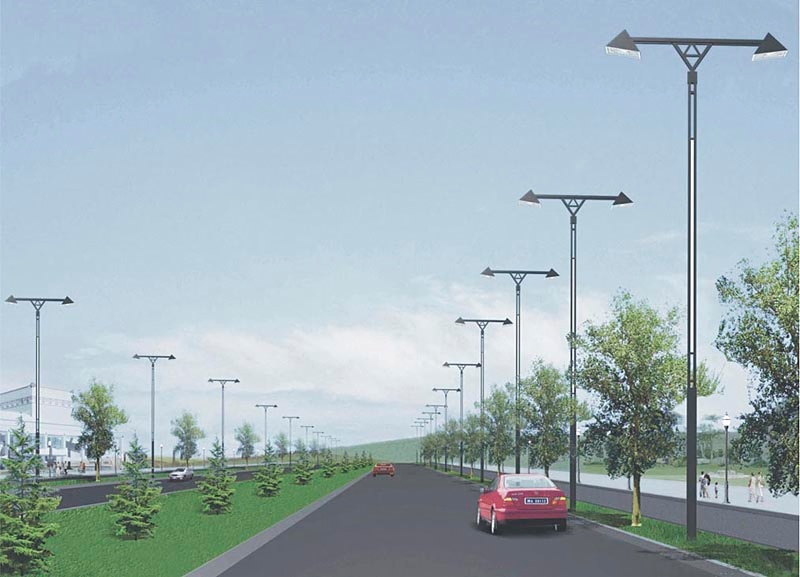

Application: Roads and highways,Urban roads and street,
Squares areas,Pedestrian areas, Residential areas,Parks
Installing Hight: 5-12m
Mounting : Side-entry or Post top, Ø48Ø60mm x120 spigot
Lamps: HID,HPS High pressure sodium or MH metal halide
Lamp Wattage:150W,250W,400W ,E40/E39 Socket
Input Voltage: 220-240V/50Hz,110-130V/60Hz
Power Factor: >0.9
Working Temperature: -40 to 50℃
Material: Aluminium body
Body: Heavy duty die cast aluminium,Polyester powder coating

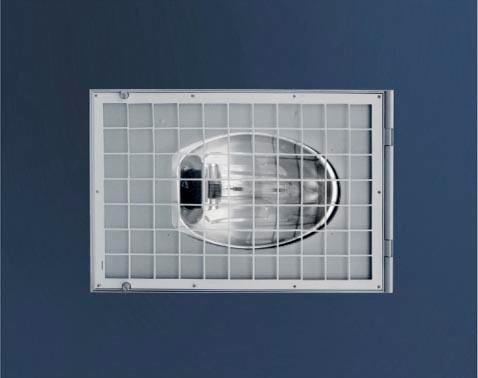

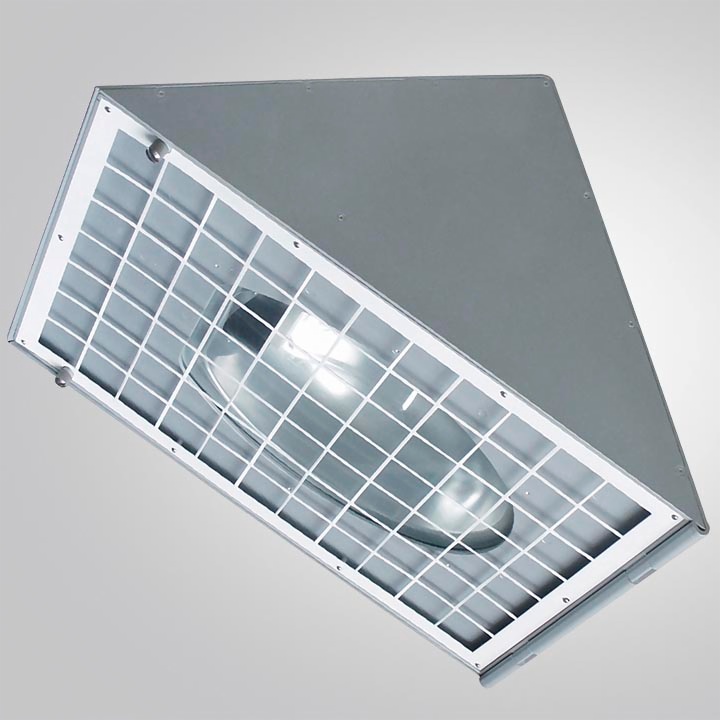

Reflector: Anodized high pure aluminium
lens: Clear curved glass toughened,
Gasket: Silicone rubber
Toggles : Stainless steel
Color: Polyester powder coated,standard colors is black (BK),
dark grey(GY)(RAL7016),light grey(LG)(RAL7042),Silver grey(SG),
White(WH),Dark Blue(BU)(RAL5005),other colors are available
Standard
Isolation degree Class I, IP Rating(optical) IP65

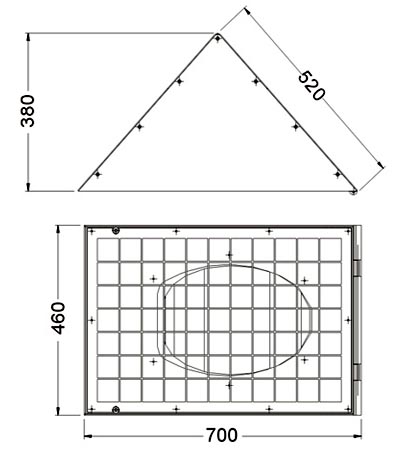

Order No. Lamp  Wattage Lamp Socket Install  Height Gross/ Net Weight Dimension L*W*H(cm) Packing size(cm) QTY(pcs)  20'/40'GP
HL609 MAX 400W E40 5m-12m 13 / 12kg 70x46x38 73x48x41 200 /400

►HL609 PDF Brochure

Please contact HSO to get more information and high resolution catalog &pictures
