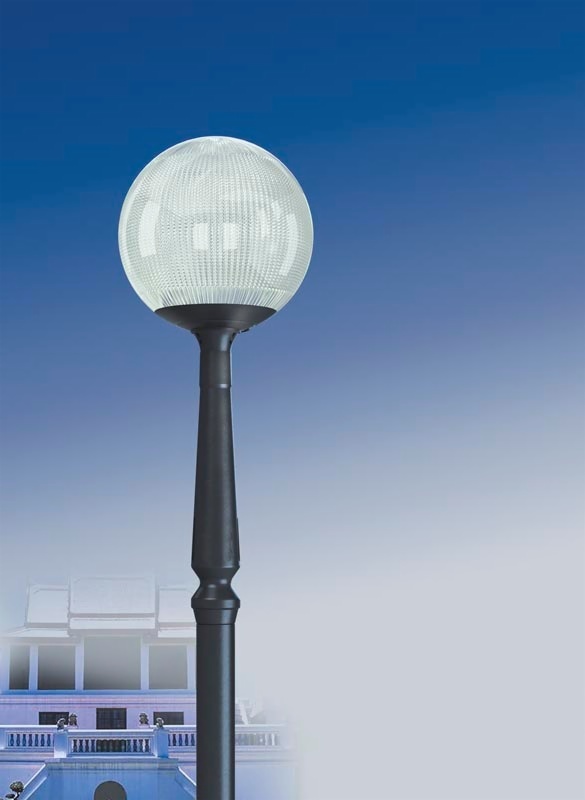

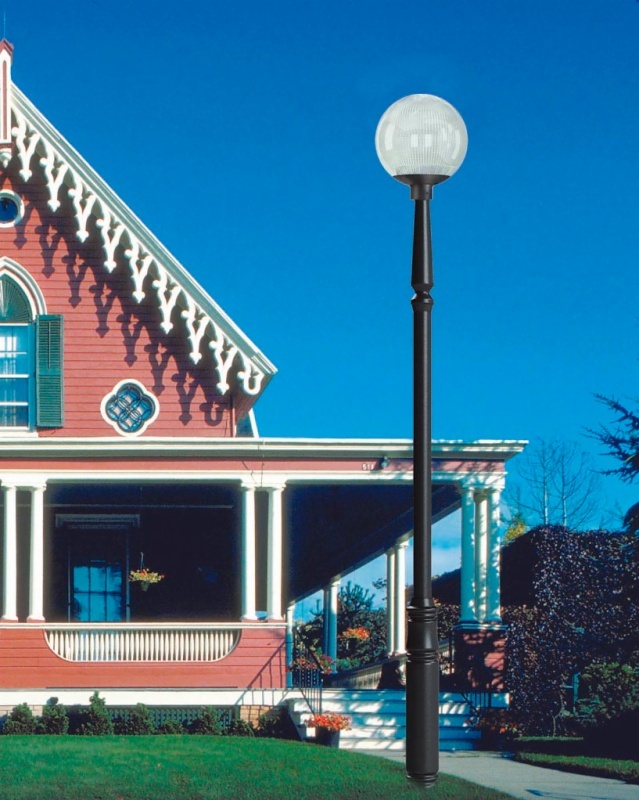

Contemporary Post top lighting Xili HA376/HA376A/HA376C

  • Description

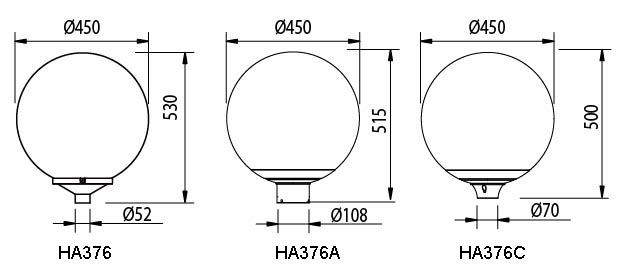

  • Dimensions

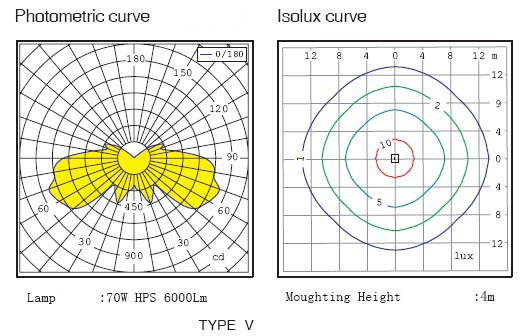

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Xili HA376/HA376A/HA376C
Type: Garden Post top lighting
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 3 years

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Mounting : Post-top, tenon Ø42mmx40mm/Standard,
        Ø76mmx60mm/model A, Ø60mmx50mm/model C
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35W/45W/65W Compact fluorescent lamp, cap: E27/E26
Input Voltage: 90-270VAC,50-60HZ
Material: Aluminium body
Housing: Die cast aluminium,Polyester powder coating
Globe : High efficiency acrylic refractor
Color: Standard color are Black,Dark grey RAL7016 or
Light grey RAL 7042 ,other colors are available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp Wattage Lamp Socket Install  Height(m) Gross / Net Weight(kg) Dimension L*W*H(cm) Packing size(cm) QTY 20'/40'GP
HA376 MAX150W E27 3m-5m 5 / 4 45x45X53 47x47x55 192/384
HA376A MAX150W E27 3m-5m 5 / 4 45x45X51.5 47x47x54 192/384
HA376C MAX150W E27 3m-5m 5 / 4 45x45X50 47x47x53 192/384

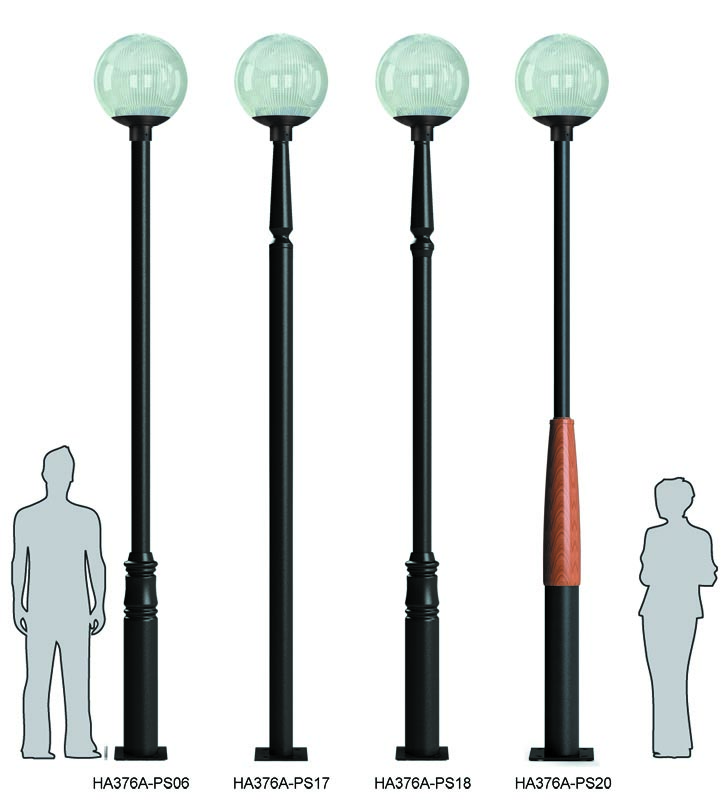

Poles
