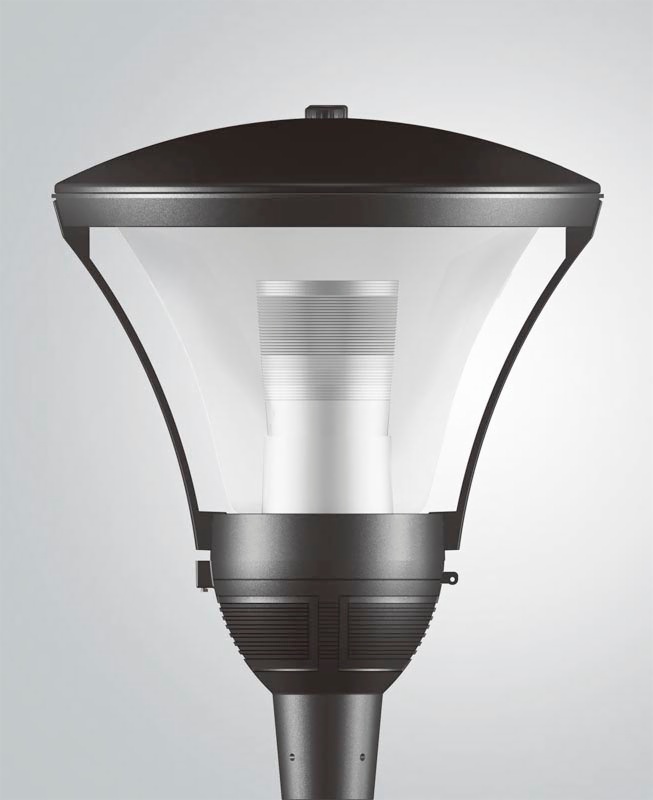

Contemporary Post top lighting Dida HA254X

Item Code:HA254X Features:
  • Description

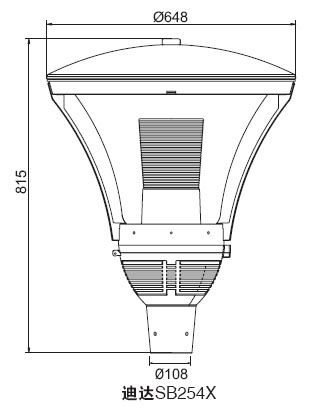

  • Dimensions

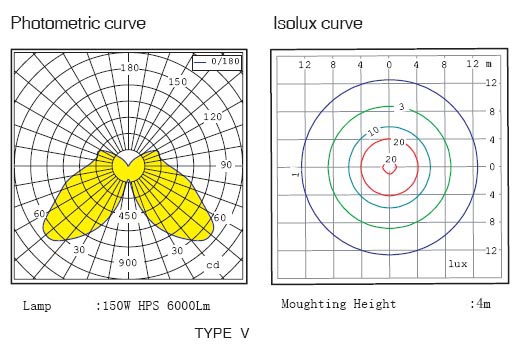

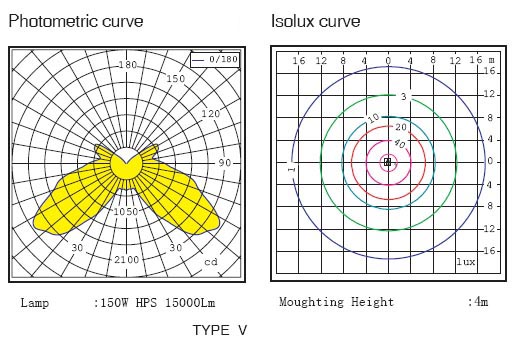

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Dida HA254X
Type: Garden Post top lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks

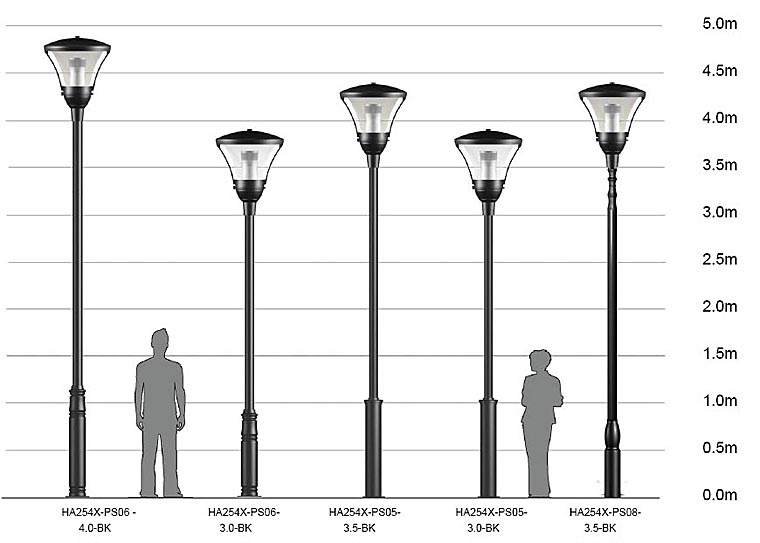

Installing Hight: 3-5m
Mounting:Post-top,suitable for Ø76mmx90mm tenons
Lamps HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W//150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
35W/45W/65W Compact fluorescent, cap: E27/E26
Input Voltage: 90-270VAC,50-60HZ

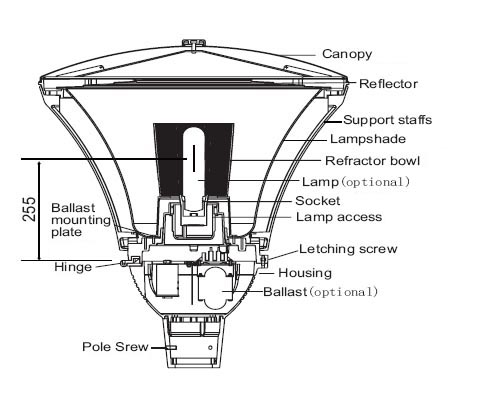

Material: FRP, fiber glass body
Canopy & Reflector: aluminium
Circle,Suppoet staffs & Housing: Fiberglass-reinforced
plastics,excellent mechanical strength and bear the causticity
Lampshade: High efficiency acryl
Refractor : High efficiency acryl or glass
Color: Standard painting colors is black (BK) ,other colors dark
grey(GY)(RAL7016),light grey(LG)(RAL7042) are available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information

Order No. Lamp Wattage Lamp Socket Install  Height(m) Gross / Net Weight(kg) Dimension L*W*H(cm) Packing size(cm) QTY  20'/40'GP
HA254X MAX 150W E27/E40 3m-5m 15 / 12 65x65X81.5 67x67x85 48/96
