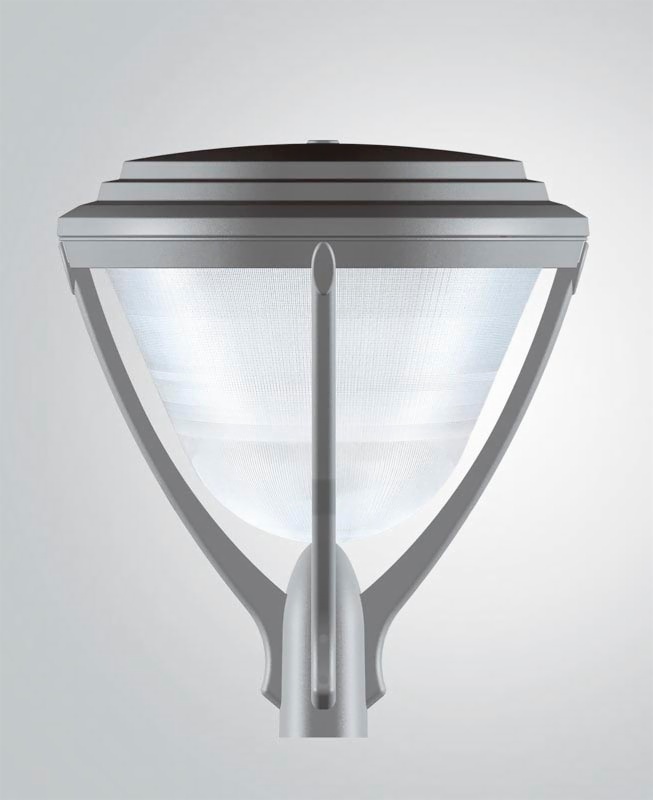

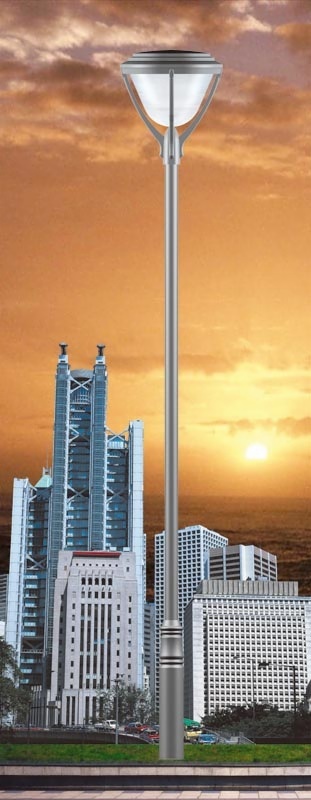

Contemporary Post top lighting Flor LED HA150

Item Code:HA150 Features:
  • Description

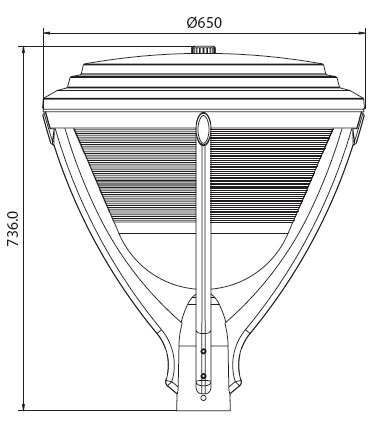

  • Dimensions

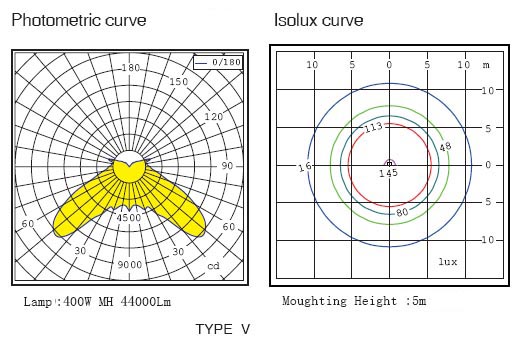

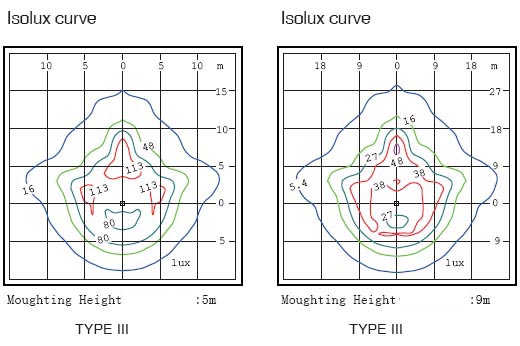

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Flor HA150
Type: Garden Post top lighting
Style: Contemporary
Quality: High Quality
Price: Upmarket
Warranty: 3 years

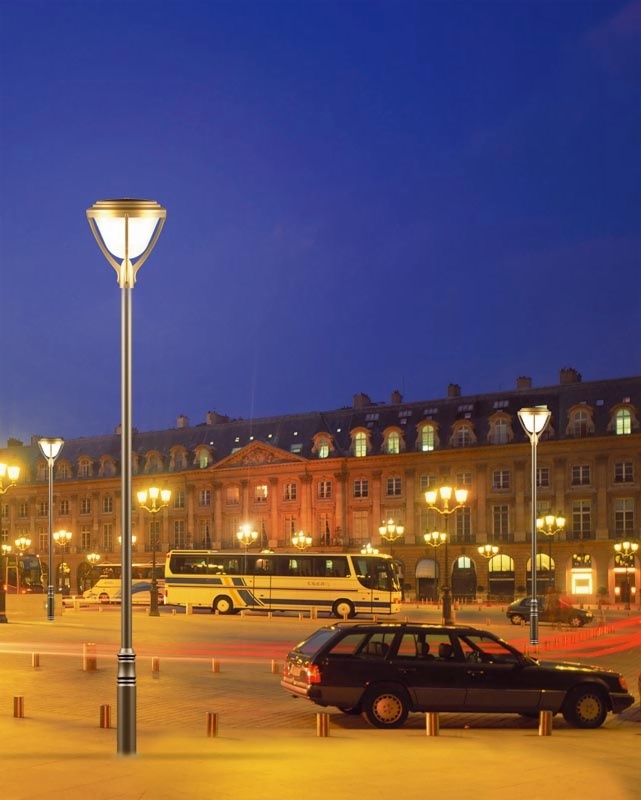

Application: Urban roads and street , Squares areas,
             Pedestrian areas, Residential areas,Parks
Installing Hight: 3-5m
Mounting:Post-top,suitable for Ø76mmx100mm tenons
Lamps HID (HPS MH)/ LED / CFL lamps, 30W-400W
70W//150W/250W/400W HPS high pressure sodium, cap: E27/E26/
E40/E39
70W/150W/250W/400W MH metal halide, cap: E27/E26/E40/E39
30W/40w/50W Led bulb, cap: E27/E26/E40/E39
30W/60W Led module
35W/45W/65W Compact fluorescent, cap: E27/E26
Input Voltage: 90-270VAC,50-60HZ

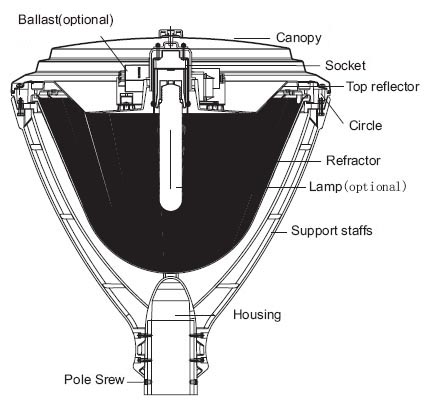

Material: FRP, fiber glass body
Canopy: aluminium
Top reflector,Circle,Suppoet staffs & Housing: Fiberglass-reinforced
plastics,excellent mechanical strength and bear the causticity
Refractor : High efficiency acrylic refractor,
Color: Standard painting colors is black (BK) ,other colors dark
grey(GY)(RAL7016),light grey(LG)(RAL7042) are available
Standards:
Isolation degree Class I, IP Rating IP65

Ordering  information



Order No. Lamp Wattage Lamp Socket Install  Height m Gross / Net Weight(kg) Dimension L*W*H(cm) Packing size(cm) QTY 20'/40'GP
HA150 MAX 400W HID E27/E40 3m-5m 17 / 14 65x65X74 67x67x77 72/162
HA150B 30/60W LED   3m-5m 17 / 14 65x65X74 67x67x77 72/162

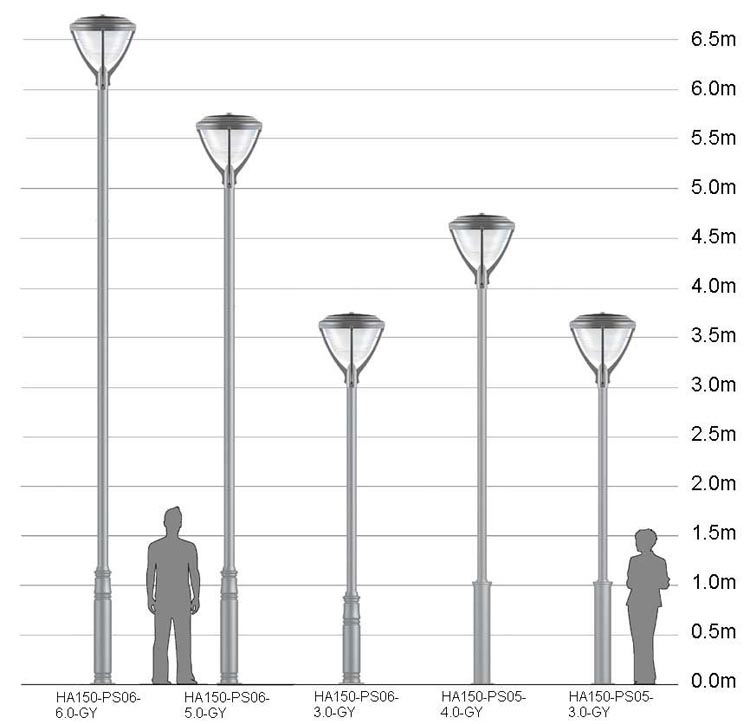

Poles
