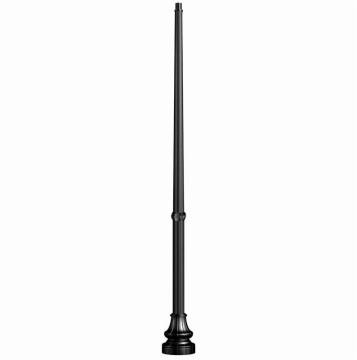

Number: PT04 Series
Type:Garden lighting pole
Style: Traditional
Quality: High Quality
Price: Upmarket
Liftime >10 years
Warranty: 3 years
Application: Urban roads and street , Squares areas,
Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3.5m-4.5m

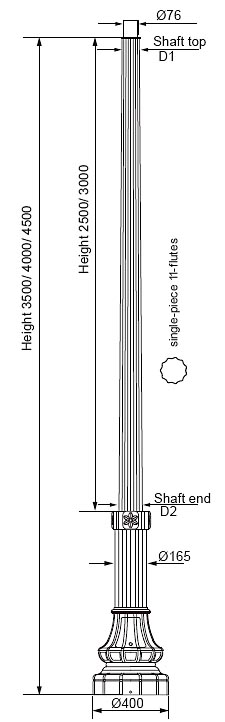

PT04 pole : high-tensile carbon steel, Flute tapered shaft from
top 90mm , welded togher with an 165 mm round straight
high-tensile carbon-steel, welded round pole base,welding
standard is according to AWS D 1.1 /BS EN 1011-1,BS EN 1011-2.
the entire shaft assembly is hot dipped galvanised according to
ASTMA 123 / EN ISO 1461.
Hand hole: 110 by 250mm maintenance opening,complete with
cover and ground connector,is centered 300mm from the
bottom of the anchor plate.
Base cover : made of one pieces of fiberglass-reinforced
plastics, mechanically assembled together with stainless
screws. There is one door in the base cover to access the
maintenance opening.
Pole top tenon: high-tensile carbon steel tube,round welded to shaft,
standard sizes are 76mm O.D. x 90mm long,special size is available.
Finish: “Hot Dip” chemical etching preparation. Polyester powder
coat textured finish. Standard colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),silver grey(SG), White(WH), other
colors are available,Durable UV-resistant exterior finish as per
# ASTM G7 and outstanding salt-spray resistance according to # ASTM
D2247 testing procedures.
Options:

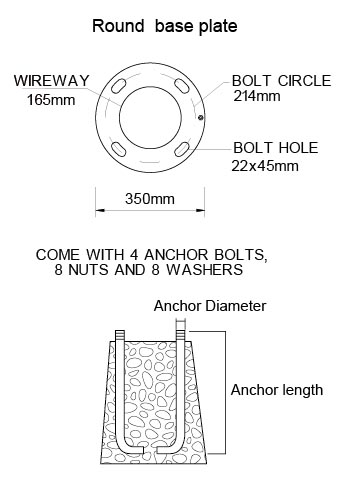

Service hand hole and base plate can be made to specific sizing
OEM and ODM is also accpetable
