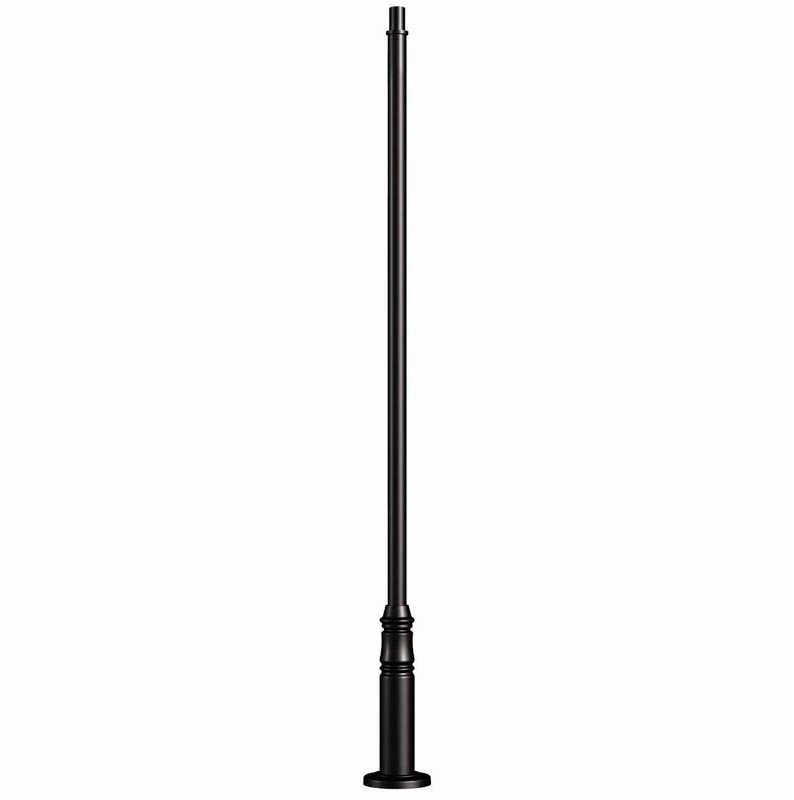

Garden lighting pole PS06

Item Code:PS06 Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: PS06 Series
Type:Garden lighting pole
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Liftime >10 years
Warranty: 3 years

Application: Urban roads and street , Squares areas,
Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3m-5m

PS05 pole: high-tensile carbon steel, 90mm round straight
non-tapered shaft, welded togher with an 165 mm round straight

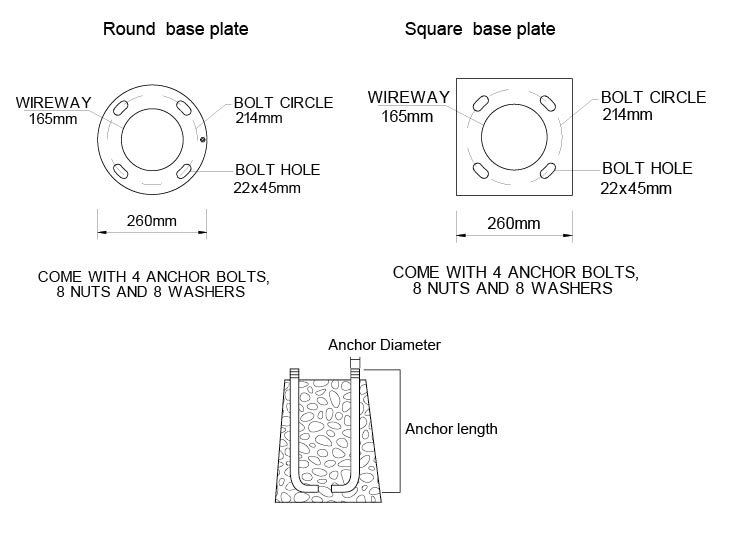

high-tensile carbon-steel, welded square pole base or round
pole base,welding standard is according to AWS D 1.1 /BS
EN 1011-1,BS EN 1011-2. the entire shaft assembly is hot
dipped galvanisedaccording to ASTMA 123 / EN ISO 1461.
Hand hole: 110 by 250mm maintenance opening,complete with
 cover and ground connector,is centered 420mm from the
bottom of the anchor plate.
Pole top tenon:  high-tensile carbon steel tube,round welded to shaft,
standard sizes are 76mm O.D. x 90mm long,special size is available.
Base cover : is optional,round base cover is made of one pieces of fiber glass
reinforced plastics, mechanically assembled together with stainless screws.
Square base cover is made of hot dipped galvanised steel.
Finish: “Hot Dip” chemical etching preparation. Polyester powder
coat textured finish. Standard colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),silver grey(SG), White(WH), other
colors are available,Durable UV-resistant exterior finish as per
# ASTM G7 and outstanding salt-spray resistance according to # ASTM
D2247 testing procedures.

Options:
Service hand hole and base plate can be made to specific sizing
OEM and ODM is also accpetable



Ordering  information

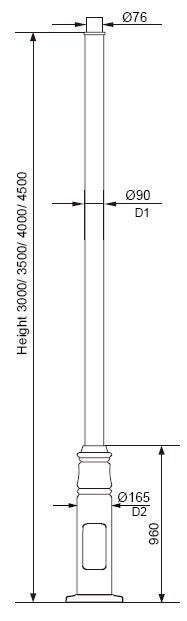

Order No. Install  Height  meter D1 Top Diameter (mm) D2 Bottom Diameter (mm) Wall Thinkness  (mm) Base Square x THK(mm) Anchor Circle Diameter (mm) Anchor Dia&   Length (mm) Hand hole   L x W   (mm) Net    Weight   (kg) EPA Rating 80MPA Wall 1/ 2 (SQ.FT)
PS06-3.0 3 90 165 3 260x10 215 16x550 250x110 30 41
PS06-3.5 3.5 90 165 3 260x10 215 16x550 250x110 33 35
PS06-4.0 4 90 165 3 260x10 215 16x550 250x110 36 29
PS06-4.5 4.5 90 165 3 260x10 215 16x550 250x110 40 22
