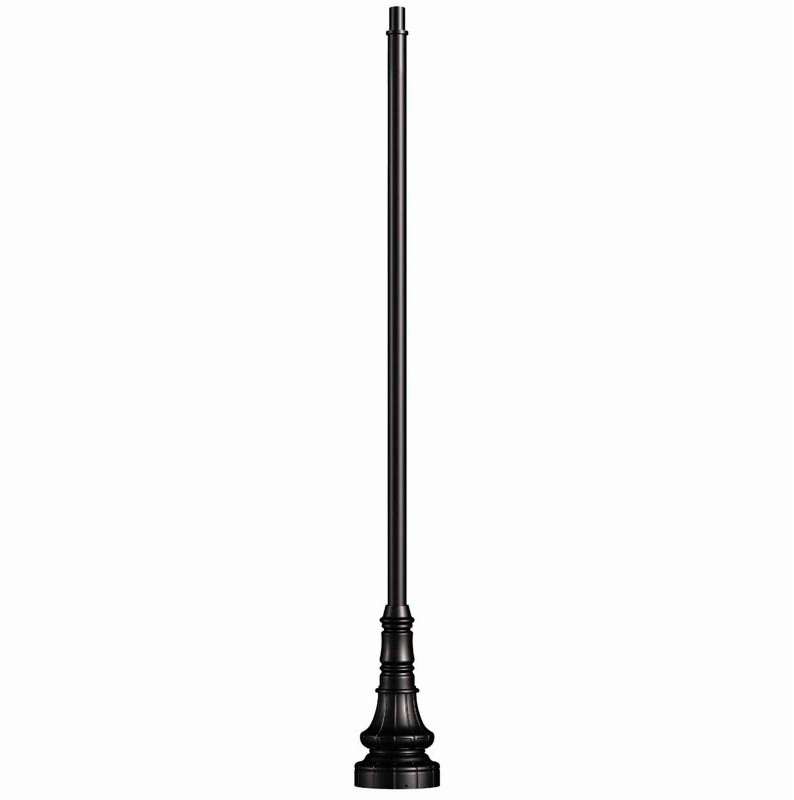

Garden lighting pole PS06B

Item Code:PS06B Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: PS06B Series
Type:Garden lighting pole
Style: Traditional
Quality: High Quality
Price: Econoimcal
Liftime >10 years
Warranty: 3 years

Application: Urban roads and street , Squares areas,
Pedestrian areas, Residential areas,Parks,Garden
Installing Hight: 3m-5m

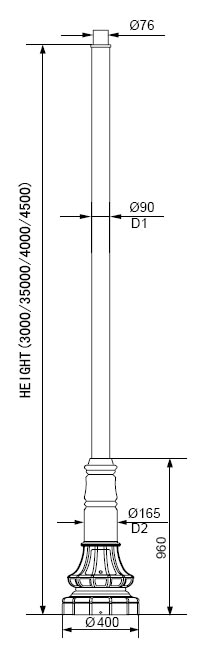

PS06B pole: high-tensile carbon steel, 90mm round straight
non-tapered shaft, welded togher with an 165 mm round straight
high-tensile carbon-steel, welded to round pole base,welding
standard is according to AWS D 1.1 /BS EN 1011-1,BS EN 1011-2.
the entire shaft assembly is hot dipped galvanised according to
ASTMA 123 / EN ISO 1461.
Pole top tenon:  high-tensile carbon steel tube,round welded to shaft,
standard sizes are 76mm O.D. x 90mm long,special size is available.
Hand hole: 110 by 250mm maintenance opening,complete with
 cover and ground connector,is centered 300mm from the
bottom of the anchor plate.
Base cover : made of one pieces of fiberglass-reinforced
plastics, mechanically assembled together with stainless
screws. There is one door in the base cover to access the
maintenance opening.
Finish: “Hot Dip” chemical etching preparation. Polyester powder
coat textured finish. Standard colors is black (BK), dark grey(GY)
(RAL7016),light grey(LG)(RAL7042),silver grey(SG), White(WH), other
colors are available,Durable UV-resistant exterior finish as per
# ASTM G7 and outstanding salt-spray resistance according to # ASTM
D2247 testing procedures.

Options:
Service hand hole and base plate can be made to specific sizing
OEM and ODM is also accpetable

Ordering  information

Order No. Install  Height  meter D1 Top Diameter (mm) D2 Bottom Diameter (mm) Wall Thinkness  (mm) Base Round x THK(mm) Anchor Circle Diameter (mm) Anchor Dia&   Length (mm) Hand hole L x W (mm) Net  Weight (kg) EPA Rating 80MPA Wall 1/ 2 (SQ.FT)
PS06B-3.0 3 90 165 3 350x10 215 16x550 250x110 35 41
PS06B-3.5 3.5 90 165 3 350x10 215 16x550 250x110 38 35
PS06B-4.0 4 90 165 3 350x10 215 16x550 250x110 41 29
PS06B-4.5 4.5 90 165 3 350x10 215 16x550 250x110 45 22
