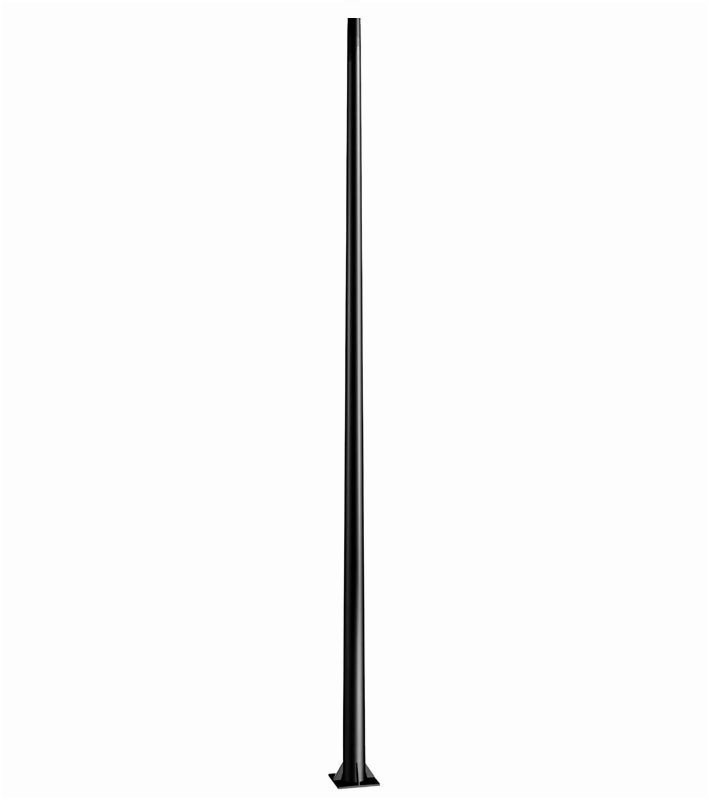

Round taped steel poles PRT Series

Item Code:PRT Series Features:
  • Description
  • Dimensions
  • Photometrics
  • Ordering Guide
  • Downloads
Number: Round taped poles PRT Series
Type:Road lighting pole
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Liftime >10 years
Warranty: 3 years


Application: Roads and highways,Urban roads and street,
Squares areas,Pedestrian areas, Residential areas,Parks
Installing Hight: 3-12m
Material :high-tensile carbon steel Q235, Round tapered shaft,
welded togher with base flange,welding standard is according to
AWS D 1.1 /BS EN 1011-1,BS EN 1011-2. the entire shaft assembly
is hot dipped galvanised according to ASTMA 123 / EN ISO 1461
Finish: “Hot Dip” chemical etching preparation. Polyester
powder coat textured finish. Standard colors is black (BK),
dark grey(GY)(RAL7016),light grey(LG)(RAL7042),silver grey(SG),
White(WH), other colors are available,Durable UV-resistant exterior
finish as per # ASTM G7 and outstanding salt-spray resistance
according to # ASTM D2247 testing procedures.

Production process
Rew material test → Cuttingj →Molding or bending→Welidng
(longitudinal )→Dimension verify →Flange welding →Hole drilling
→Calibration → Deburr→Galvanization or powder coating ,painting
→Recalibration →Thread →Packages

Options:
• The street lighting pole is available in tapered round or tapered octagonal.
• The street lighting pole is available in base flange mounted or direct bury installed.

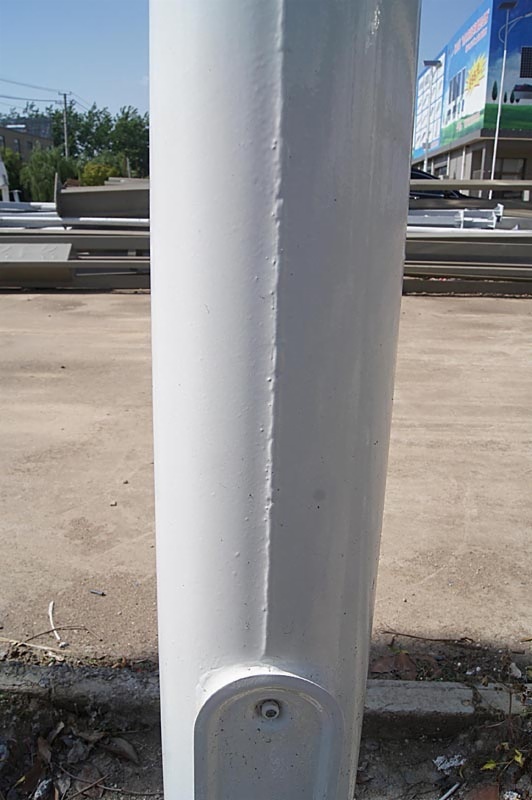

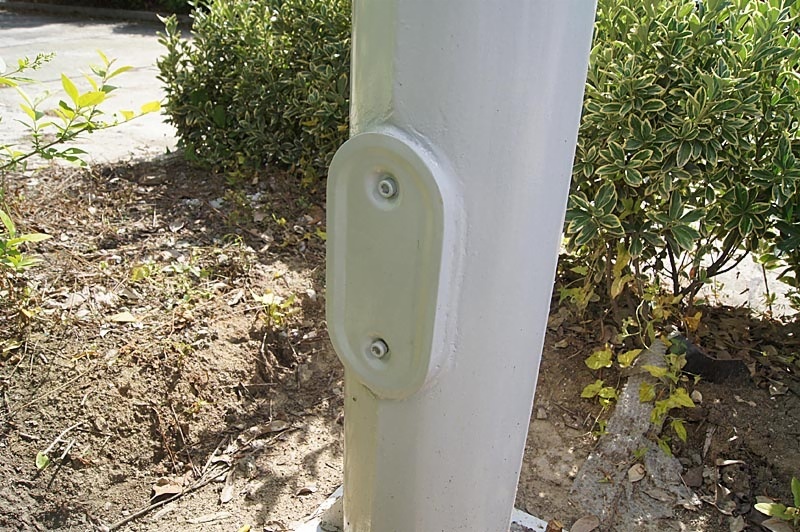

• The street lighting pole is available in frame welded hand hole or self cut cover hand hole.

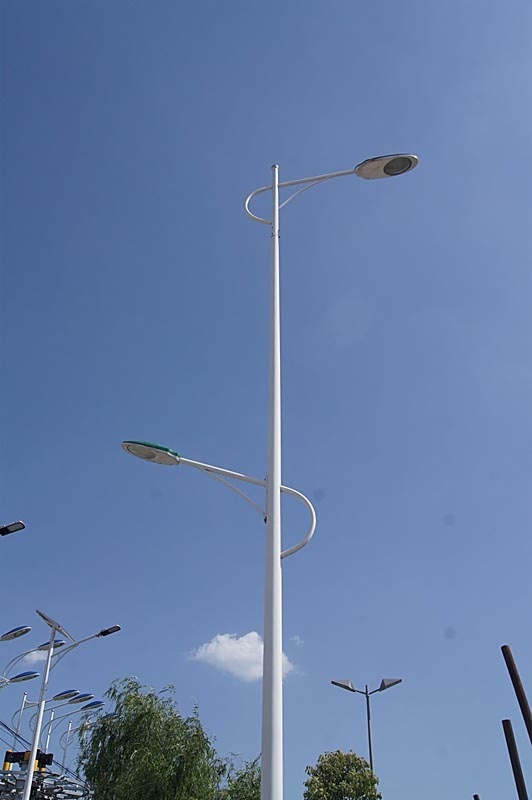

• The street lighting pole range is available in a single or double outreach arm arrangement.
• Service hand hole and base plate can be made to specific sizing
• OEM and ODM is also accpetable

Ordering  information

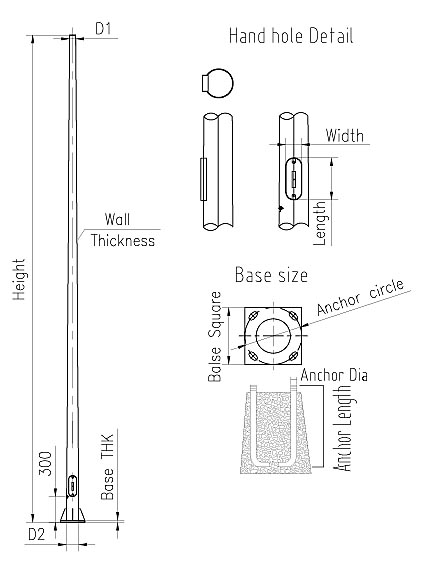

Order No. Install  Height  meter D1 Top Diameter (mm) D2 Bottom Diameter (mm) Wall Thinkness  W1 /W2 (mm) Base Square x THK(mm) Anchor Circle Diameter (mm) Anchor Dia&   Length (mm) Hand hole L x W (mm) Net Weight Wall 1 /2 (kg) EPA Rating 80MPA Wall 1/ 2 (SQ.FT)
PRT-S1-W1(2)-3 3 60 100 2.5 /3 260x10 260 16x550 250x80 20 /22 13 /16
PRT-S2-W1(2)-3 3 70 110 2.5 /3 260x10 260 16x550 250x80 21 /25 16 /20
PRT-S3-W1(2)-3 3 76 115 2.5 /3 260x10 260 16x550 250x80 22 /26 18 /22
PRT-S1-W1(2)-4 4 60 108 2.5 /3 260x10 260 16x550 250x80 25 /29 10 /13
PRT-S2-W1(2)-4 4 70 120 2.5 /3 260x10 260 16x550 250x80 28 /33 13 /16
PRT-S3-W1(2)-4 4 76 130 2.5 /3 260x10 260 16x550 250x80 30 /35 16 /20
PRT-S1-W1(2)-5 5 60 130 3 /3.5 280x14 280 18x550 250x90 43 /48 14 /18
PRT-S2-W1(2)-5 5 70 135 3 /3.5 280x14 280 18x550 250x90 45 /51 16 /19
PRT-S3-W1(2)-5 5 80 145 3 /3.5 280x14 280 18x550 250x90 49 /56 18 /22
PRT-S1-W1(2)-6 6 60 145 3 /3.5 300x16 300 18x650 250x100 55 /63 14 /17
PRT-S2-W1(2)-6 6 70 155 3 /3.5 300x16 300 18x650 250x100 60 /68 17 /20
PRT-S3-W1(2)-6 6 80 165 3 /3.5 300x16 300 18x650 250x100 64 /73 19 /23
PRT-S1-W1(2)-7 7 60 160 3 /3.5 300x16 300 18x700 250x100 67 /76 14 /17
PRT-S2-W1(2)-7 7 70 160 3 /3.5 300x16 300 18x700 250x100 69 /78 14 /17
PRT-S3-W1(2)-7 7 80 170 3 /3.5 300x16 300 18x700 250x100 74 /85 16 /19
PRT-S1-W1(2)-8 8 60 168 3 /3.5 320x16 320 20x850 250x100 80 /91 12 /15
PRT-S2-W1(2)-8 8 70 180 3 /3.5 320x16 320 20x850 250x100 87 /98 14 /18
PRT-S3-W1(2)-8 8 80 185 3 /3.5 320x16 320 20x850 250x100 91 /105 15 /19
PRT-S1-W1(2)-9 9 60 168 3.5 /4.0 350x18 350 20x950 250x100 103 /115 9 /12
PRT-S2-W1(2)-9 9 70 180 3.5 /4.0 350x18 350 20x950 250x100 112 /125 14 /17
PRT-S3-W1(2)-9 9 80 185 3.5 /4.0 350x18 350 20x950 250x100 117 /131 15 /18
PRT-S1-W1(2)-10 10 70 180 3.5 /4.0 350x20 350 22x1000 250x100 124 /139 10 /13
PRT-S2-W1(2)-10 10 80 185 3.5 /4.0 350x20 350 22x1000 250x100 131 /146 11 /14
PRT-S3-W1(2)-10 10 85 200 3.5 /4.0 350x20 350 22x1000 350x110 139 /156 14 /18
PRT-S1-W1(2)-11 11 70 180 4 /4.5 400x20 400 22x1200 250x100 156 /172 10 /13
PRT-S2-W1(2)-11 11 80 185 4 /4.5 400x20 400 22x1200 250x100 164 /181 11 /14
PRT-S3-W1(2)-11 11 85 200 4 /4.5 400x20 350 22x1200 350x110 175 /193 14 /17
PRT-S1-W1(2)-12 12 70 195 4 /4.5 400x20 400 22x1200 350x110 178 /196 10 /13
PRT-S2-W1(2)-12 12 80 205 4 /4.5 400x20 400 22x1200 350x110 189 /209 12 /15
PRT-S3-W1(2)-12 12 90 220 4 /4.5 400x20 400 22x1200 350x110 205 /225 15 /18
