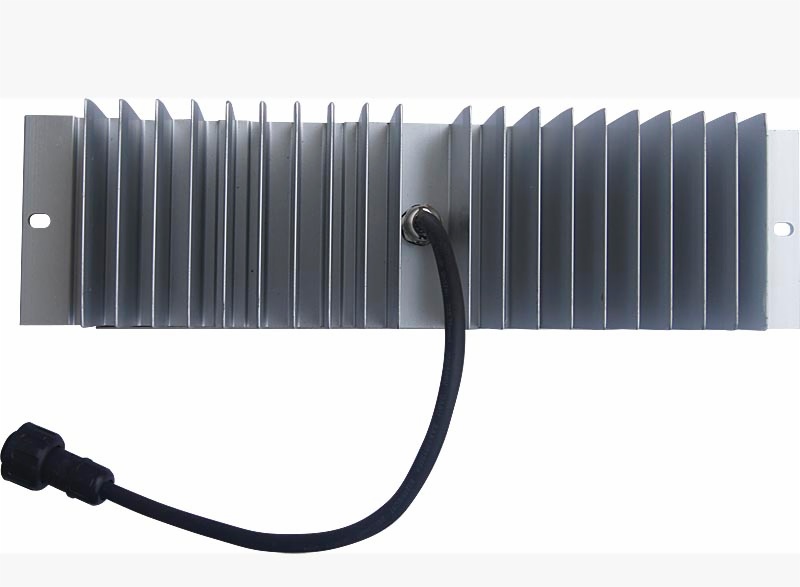

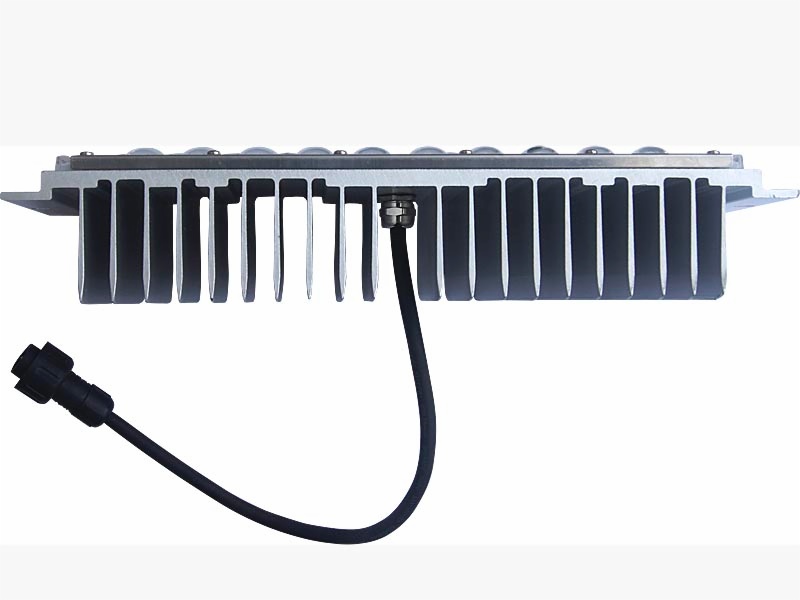

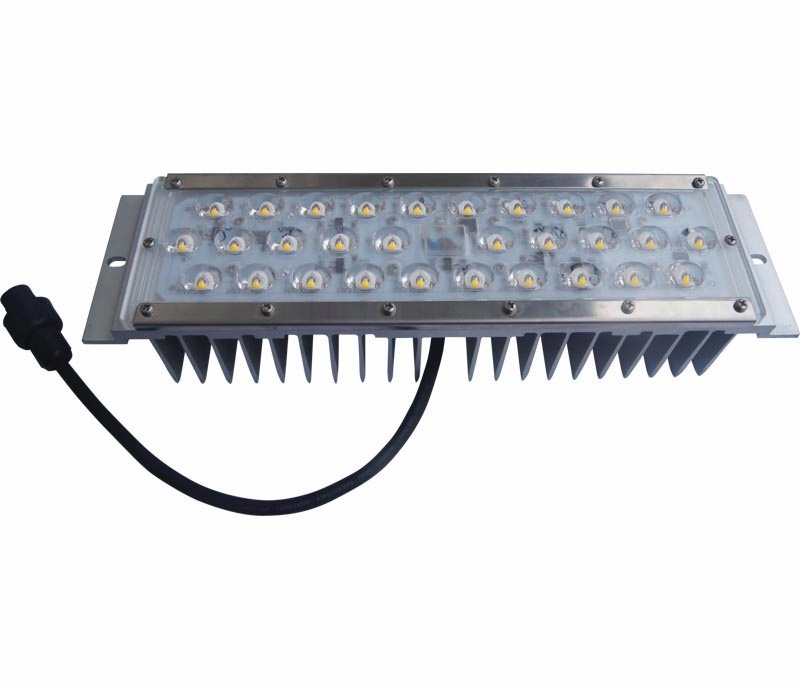

LED MODULE LED-M20

Item Code:LED-M20 Features:
  • Description

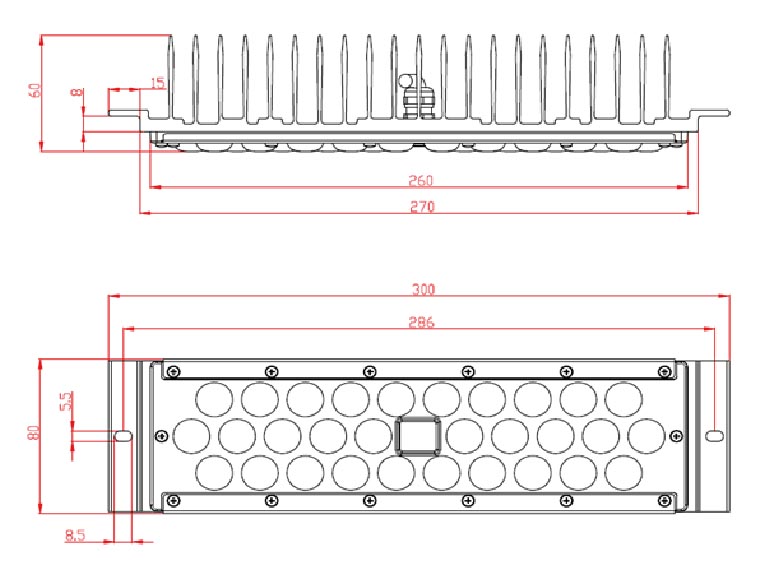

  • Dimensions

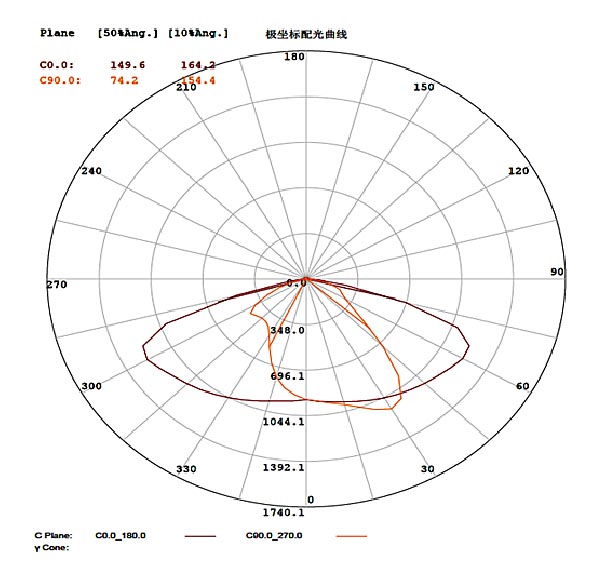

  • Photometrics
  • Ordering Guide
  • Downloads
Feature
1.Built-in AC driving,led chips is drived by AC method,discard the short-lived external driver
2.High luminaire efficiency,140lm/w (Bridgelux chips) ,Very high quality for upmarket
3.Highly consistent led chips,luminous flux attenuation less than 3%  per year
4.High efficiency PC refractor,93% luminousness
5.High quality led chip and Driver, 6 years warranty or more,led chips use the tech of polycrystal module
6.High efficiency light distribute especially for road lighting, pole space can be get  4 times of height of pole.

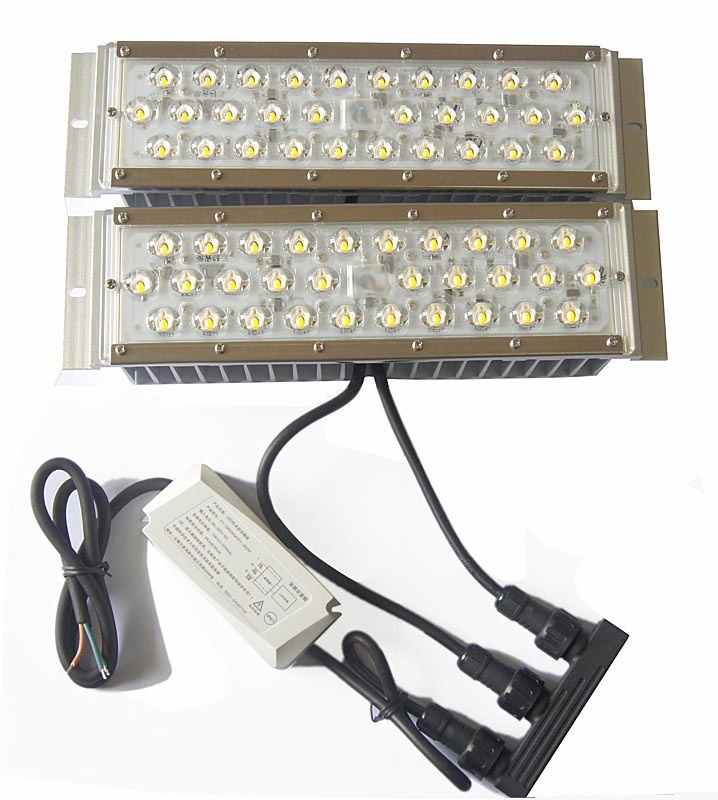

7.Changable units for ease of more wattage and maintenance using connector

Number: LED-M20
Type:LED module
Style: Contemporary
Quality: High Quality
Price: Econoimcal
Warranty: 6 years

Application: Roads and highways,Urban roads and street,
             Squares areas,Pedestrian areas,Parks
Installing Hight: 3-12m
Mounting : Fix to fixture using screw,  link to cable using connector
Lamps: LED modules LED-M20(30pcs chips)
Lamp wattage: 30W /40W /45W
Input Voltage: 160-305V AC,50/60HZ, or 90-130VAC,50/60HZ
Power Factor: >0.97
Luminous Flux: 140lm/w(Bridgelux),100lm/w(Sanan)
Luminous Flux attenuation: <3% / year
LED Chips Brand: Bridgelux(BR) or Sanan(SA)
LED Driver Brand: Built-in AC driving(led chips is drived by AC method)
Color Temperature(CCT): 3000K,4000K,5000K
Color Rending Index(CRI): Ra>70
Beam Angel: 140x65°
Working Temperature: -40℃ to 50℃
Working Lifetime: 50000 hours
Material: Aluminium body,
Heat sink: 6063 extrude aluminium
Lens: High efficiency PC refractor,93% luminousness
Standard:
Isolation degree Class I, IP Rating(optical) IP66

Order No. Lamp  Wattage  LED chips   Qty/Brand Luminous Flux(Tj=60℃) /3000K/4000K/5000K LED Driver Gross/Net Weight Dimension L*W*H(cm) Packing L*W*H(cm) Warranty
LED-M20-30-BR 30W 30pcs/Bridge 4350lm /4200lm /4050lm Built in AC driver 1kg /1kg 30x8x6 32x8.5x7(1pcs) 47x34x33(20) six     years
LED-M20-40-BR 40W 30pcs/Bridge 5600lm /5400lm /5200lm Built in AC driver 1kg /1kg 30x8x6 32x8.5x7(1pcs) 47x34x33(20) six     years
LED-M20-45-BR 45W 30pcs/Bridge 5850lm /5625lm /5400lm Built in AC driver 1kg /1kg 30x8x6 32x8.5x7(1pcs) 47x34x33(20) six     years
LED-M20-30-SA 30W 30pcs/Sanan 3150lm /3000lm /2850lm Built in AC driver 1kg /1kg 30x8x6 32x8.5x7(1pcs) 47x34x33(20) three years
LED-M20-40-SA 40W 30pcs/Sanan 4000lm /3800lm /3600lm Built in AC driver 1kg /1kg 30x8x6 32x8.5x7(1pcs) 47x34x33(20) three years
LED-M20-45-SA 45W 30pcs/Sanan 4275lm / 4050lm /3825lm Built in AC driver 1kg /1kg 30x8x6 32x8.5x7(1pcs) 47x34x33(20) three years
