Chinese Area/Site lighting Palace HA653

Item Code:HA653 Features:
  • Description

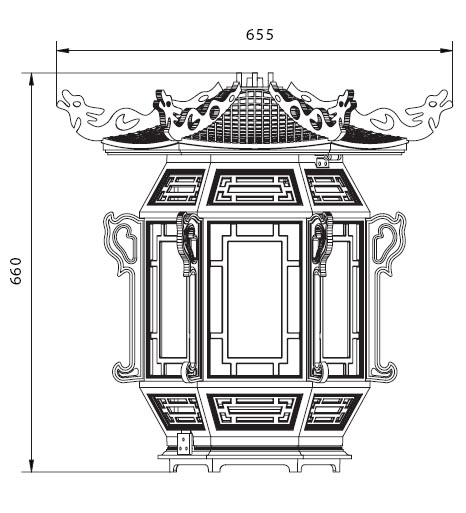

  • Dimensions

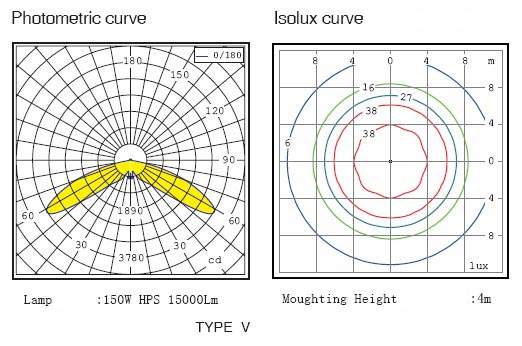

  • Photometrics
  • Ordering Guide
  • Downloads
Number: Palace HA653
Type: Chinese Area/Site lighting
Style: Chinese
Quality: High Quality
Price: Upmarket
Warranty: 3 years
Application: Urban roads and street , Squares areas, Pedestrian areas, Residential areas,Parks,Garden

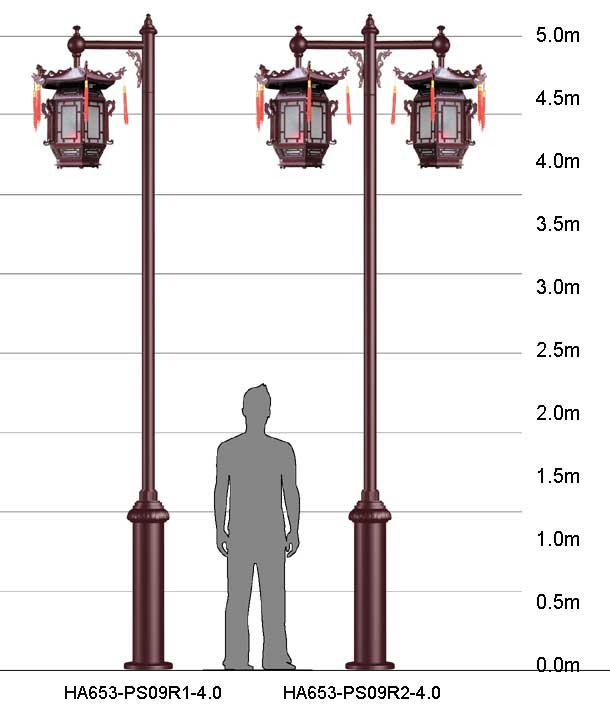

Installing Hight: 3-5m
Mounting : Hang installation,suitable for ?42mm tuble
Lamps: HID (HPS MH)/ LED bulb / CFL lamps, 30W-150W
70W/150W HPS high pressure sodium, cap: E27/E26/E40/E39
70W/150W MH metal halide, cap: E27/E26/E40/E39
35w/45W/65W Compact fluorescent, cap: E27/E26
20W/30W/50W/70W Led bulb, cap: E27/E26/E40/E39

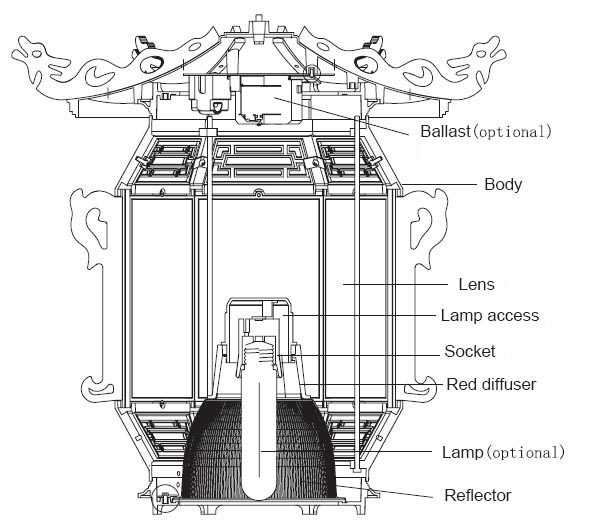

Material: FRP, fiber glass body
Body & Housing: Fiberglass-reinforced  plastics,
excellent mechanical strength and  bear the causticity
Reflector:Anodized high pure aluminium
Globe : High efficiency acrylic refractor
Down lens: Clear Curved & toughened glass
Color: Standard colors is black (BK)& RAL3004 Red ,other
colors are available
Isolation degree Class I, IP Rating(optical) IP65

Ordering  information

Order No. Lamp Wattage Lamp Socket Install  Height(m) Gross / Net Weight(kg) Dimension L*W*H(cm) Packing size(cm) QTY 20'/40'GP
HA653 MAX 150W E27 3m-5m 16 / 14 65x65X66 67x59x15/ 52x45x55 140/280
