Number: HH1001 Series

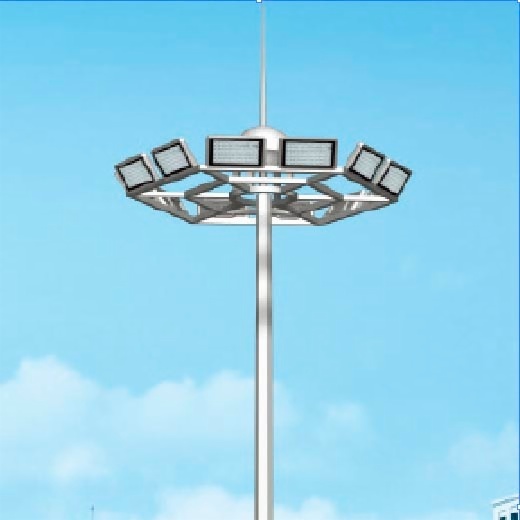

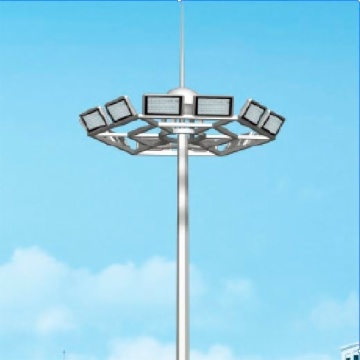

Type:High mast lighting
Application: High way intersections, Car park, Loading areas,
Shopping areas, Square, Plaza,Sea Ports, Airports and Recreational centers.
Installing Hight: 15-50m
Lamp:
400 W- 5000 W high pressure sodium flood light
400 W- 1500 W LED flood light
Material :
Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
Round or Octagonal tapered shaft, Two or more parts joint insert
mode or with flange, bottom part welded togher with base
flange,welding standard is according to AWS D 1.1 /BS EN 1011-1,
BS EN 1011-2. the entire shaft assembly is hot dipped galvanised
According to ASTMA 123 / EN ISO 1461
Finish: “Hot Dip” chemical etching preparation. Polyester
powder coat textured finish. Standard colors is black (BK),
dark grey(GY)(RAL7016),light grey(LG)(RAL7042),silver grey(SG),
White(WH), other colors are available,Durable UV-resistant exterior
finish as per # ASTM G7 and outstanding salt-spray resistance
according to # ASTM D2247 testing procedures.
Electric appliance control device:
Electric appliance box to be be the hold of the pole ,lifting operation
could be 5 meter away from the pole through wire .Time control and light
control could be equipped to realize full-load lighting mode and part lighting mode
